SAXSdb — 1f9a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYPOTHETICAL PROTEIN MJ0541

Methanocaldococcus jannaschii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 6 ADENOSINE-5'-TRIPHOSPHATE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NADM_METJA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–168； UniProt 1–168 Author chain B； PDBConstruct 1–168； UniProt 1–168 Author chain C； PDBConstruct 1–168； UniProt 1–168 Author chain D； PDBConstruct 1–168； UniProt 1–168 Author chain E； PDBConstruct 1–168； UniProt 1–168 Author chain F； PDBConstruct 1–168； UniProt 1–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f9a
Deposition date deposition_date	2000-07-09
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF NMN ADENYLYLTRANSFERASE FROM METHANOCOCCUS JANNASCHII
Keywords keywords	alpha/beta, transferase, HYPOTHETICAL PROTEIN, STRUCTURAL GENOMICS; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1f9a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

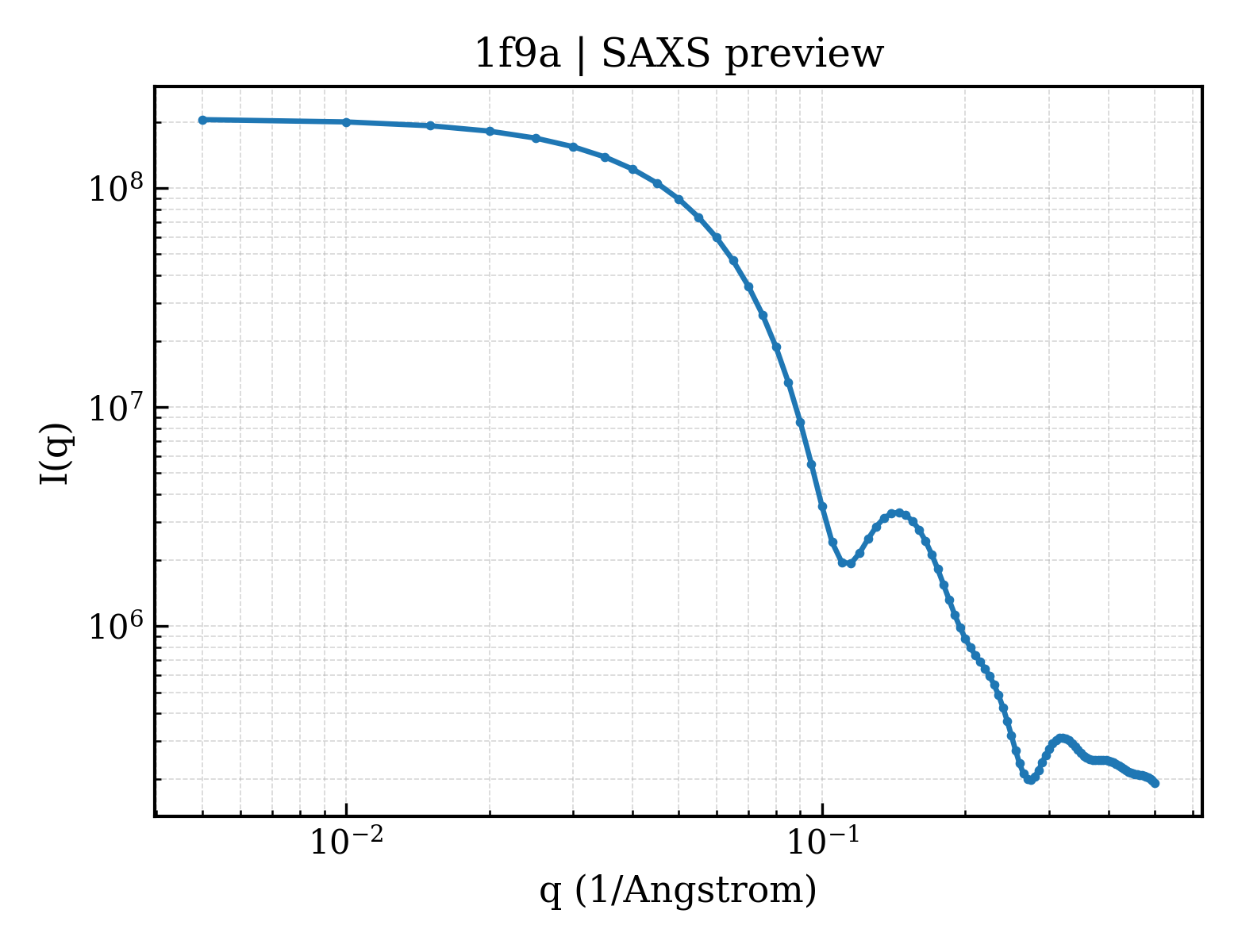

1f9a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

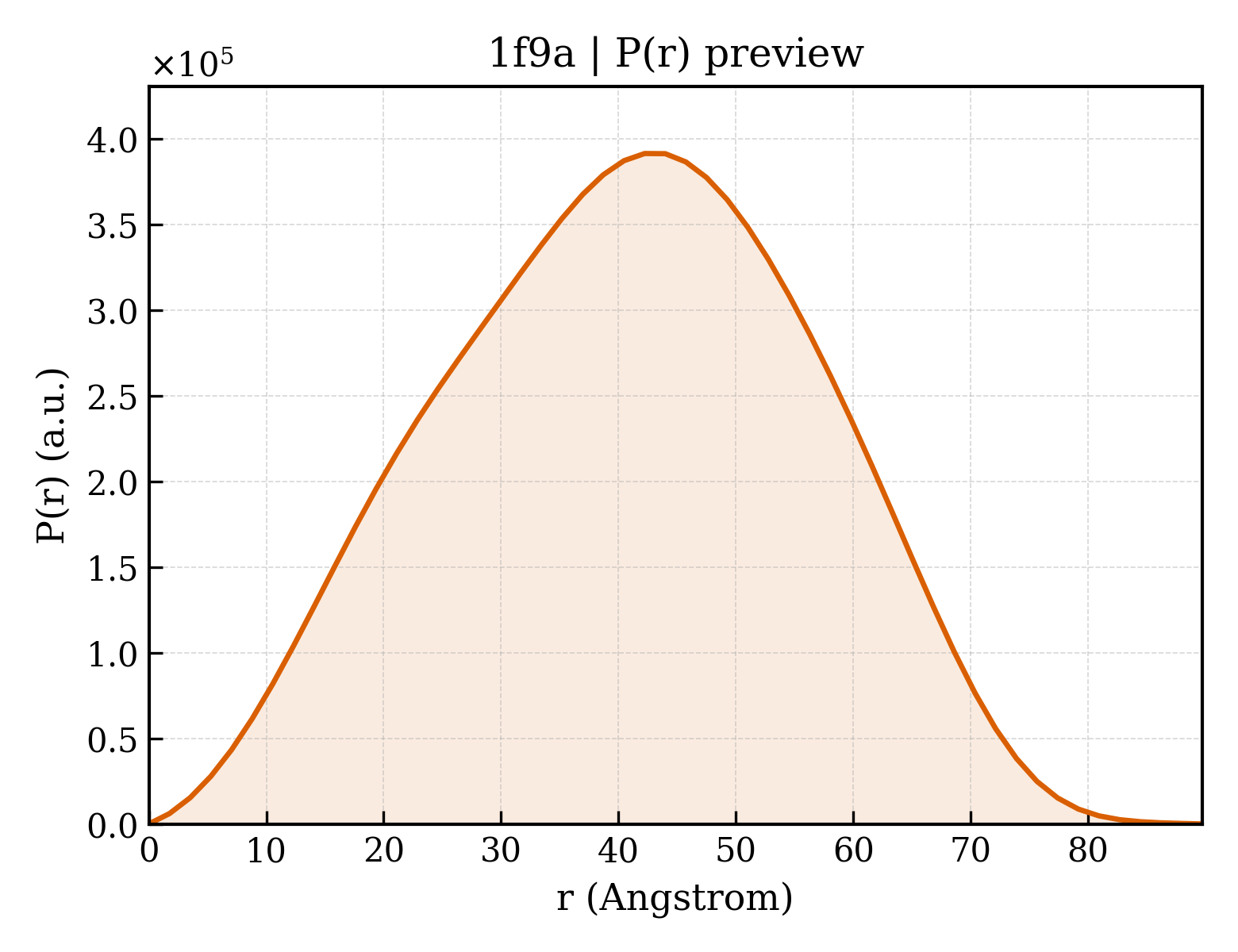

1f9a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.21 Å
Rg (electron density)	29.95 Å
Total Rg	30.83 Å
Atom count	8259
Residues	984
Excluded volume	148070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1f9a__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HYPOTHETICAL PROTEIN MJ0541
Molecular weight formula_weight	19621.7 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	8923

LRGFIIGRFQPFHKGHLEVIKKIAEEVDEIIIGIGSAQKSHTLENPFTAGERILMITQSLKDYDLTYYPIPIKDIEFNSIWVSYVESLTPPFDIVYSGNPLVRVLFEERGYEVKRPEMFNRKEYSGTEIRRRMLNGEKWEHLVPKAVVDVIKEIKGVERLRKLAQTDK

Source Source

Source organism organism	Methanocaldococcus jannaschii
NCBI taxonomy ID ncbi_taxonomy_id	2190
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	664

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1f9aa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1f9ab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1f9ac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1f9ad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1f9ae_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

Domain ID domain_id	d1f9af_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.3 — Adenylyltransferase

CATH v4.4 (6 domains)

Domain ID domain_id	1f9aA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1f9aB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1f9aC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1f9aD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1f9aE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1f9aF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	78.768 Å
Unit-cell length b length_b	112.642 Å
Unit-cell length c length_c	79.869 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.94 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.2640
