Spinacia oleracea
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | TRXF_SPIOL |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 4–124； UniProt 69–189 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1faa |
| Deposition date deposition_date | 2000-07-13 |
| Structure title title | CRYSTAL STRUCTURE OF THIOREDOXIN F FROM SPINACH CHLOROPLAST (LONG FORM) |
| Keywords keywords | ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| Experimental Method method | X-RAY DIFFRACTION |

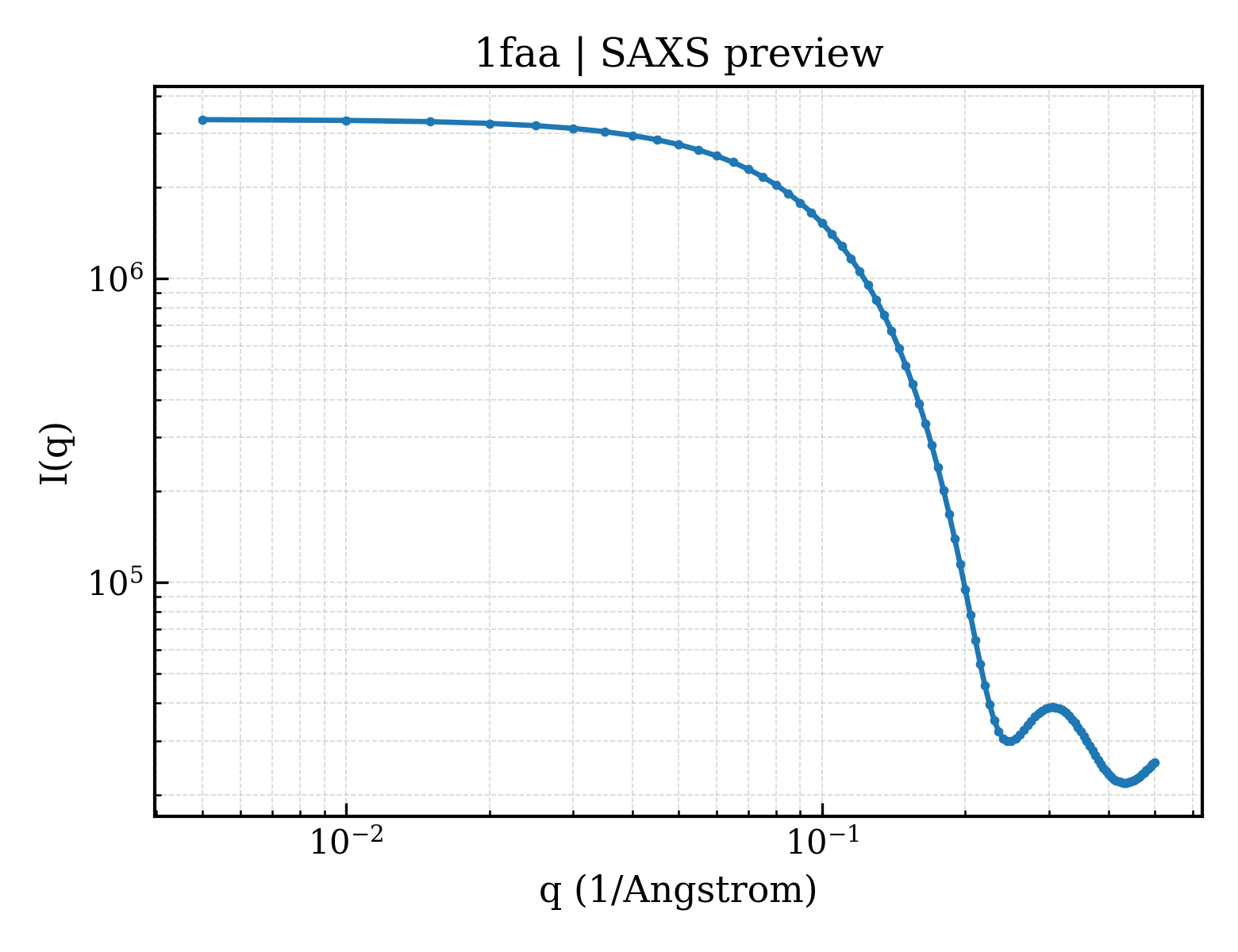

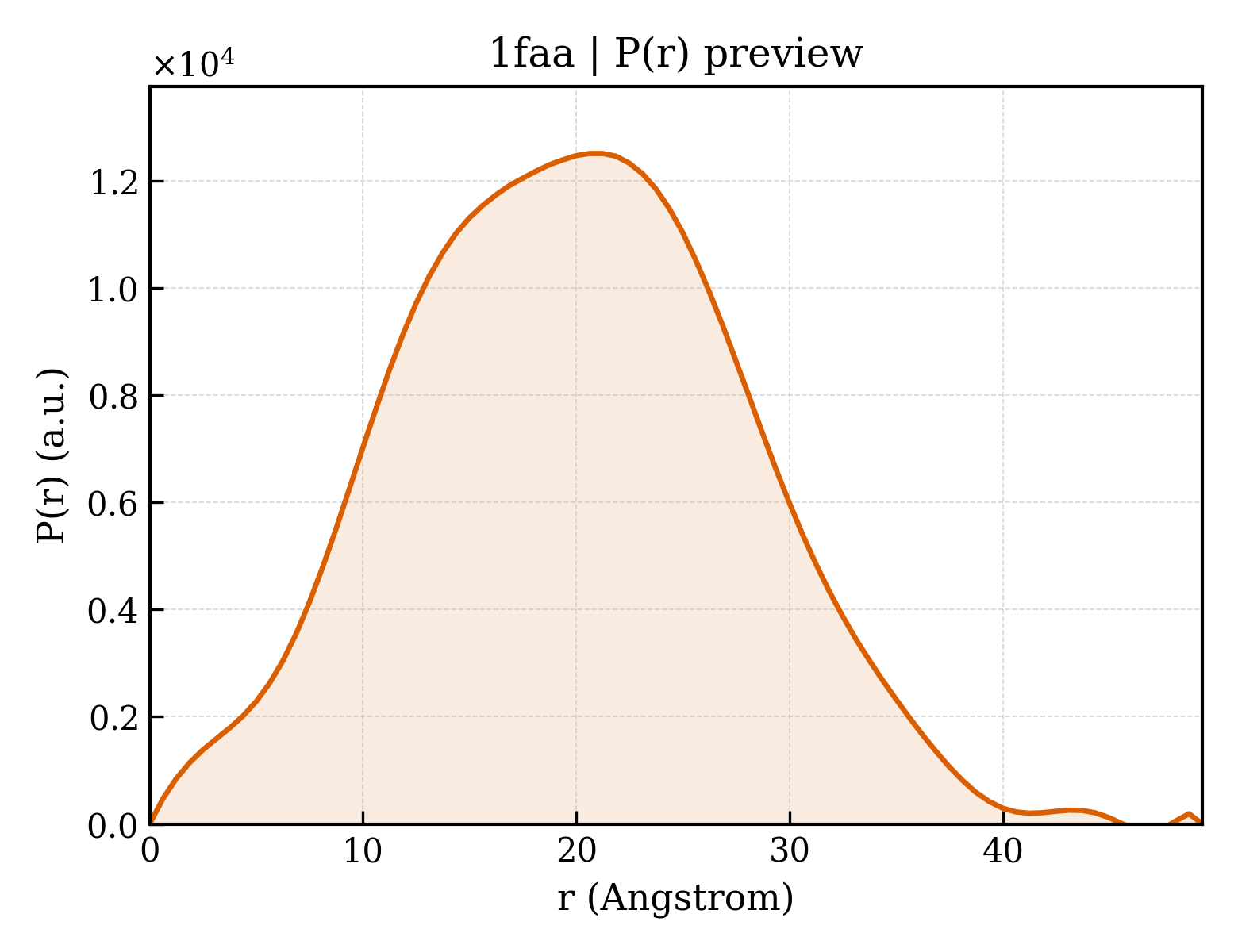

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.18 Å |
| Rg (electron density) | 13.73 Å |
| Total Rg | 15.13 Å |
| Atom count | 943 |
| Residues | 121 |
| Excluded volume | 17169 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1faaa_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.47 — Thioredoxin fold |
| Superfamily Superfamily superfamily | c.47.1 — Thioredoxin-like |
| Family Family family | c.47.1.1 — Thioltransferase |
| Domain ID domain_id | 1faaA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 30 — Glutaredoxin |
| Homologous superfamily homologous superfamily | 10 — Glutaredoxin |
