SAXSdb — 1faw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN (ALPHA SUBUNIT)

OrganismNot specified

UniProt P01989

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN (BETA SUBUNIT) × 2 （P02117） PROTOPORPHYRIN IX CONTAINING FE × 4 OXYGEN MOLECULE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBA_ANSAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 1–141 Author chain C； PDBConstruct 1–141； UniProt 1–141

HEMOGLOBIN (BETA SUBUNIT)

OrganismNot specified

UniProt P02117

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN (ALPHA SUBUNIT) × 2 （P01989） PROTOPORPHYRIN IX CONTAINING FE × 4 OXYGEN MOLECULE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBB_ANSAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–146； UniProt 1–146 Author chain D； PDBConstruct 1–146； UniProt 1–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1faw
Deposition date deposition_date	2000-07-13
Structure title title	GRAYLAG GOOSE HEMOGLOBIN (OXY FORM)
Keywords keywords	OXYGEN TRANSPORT, HEME, RESPIRATORY PROTEIN, ERYTHROCYTE, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1faw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

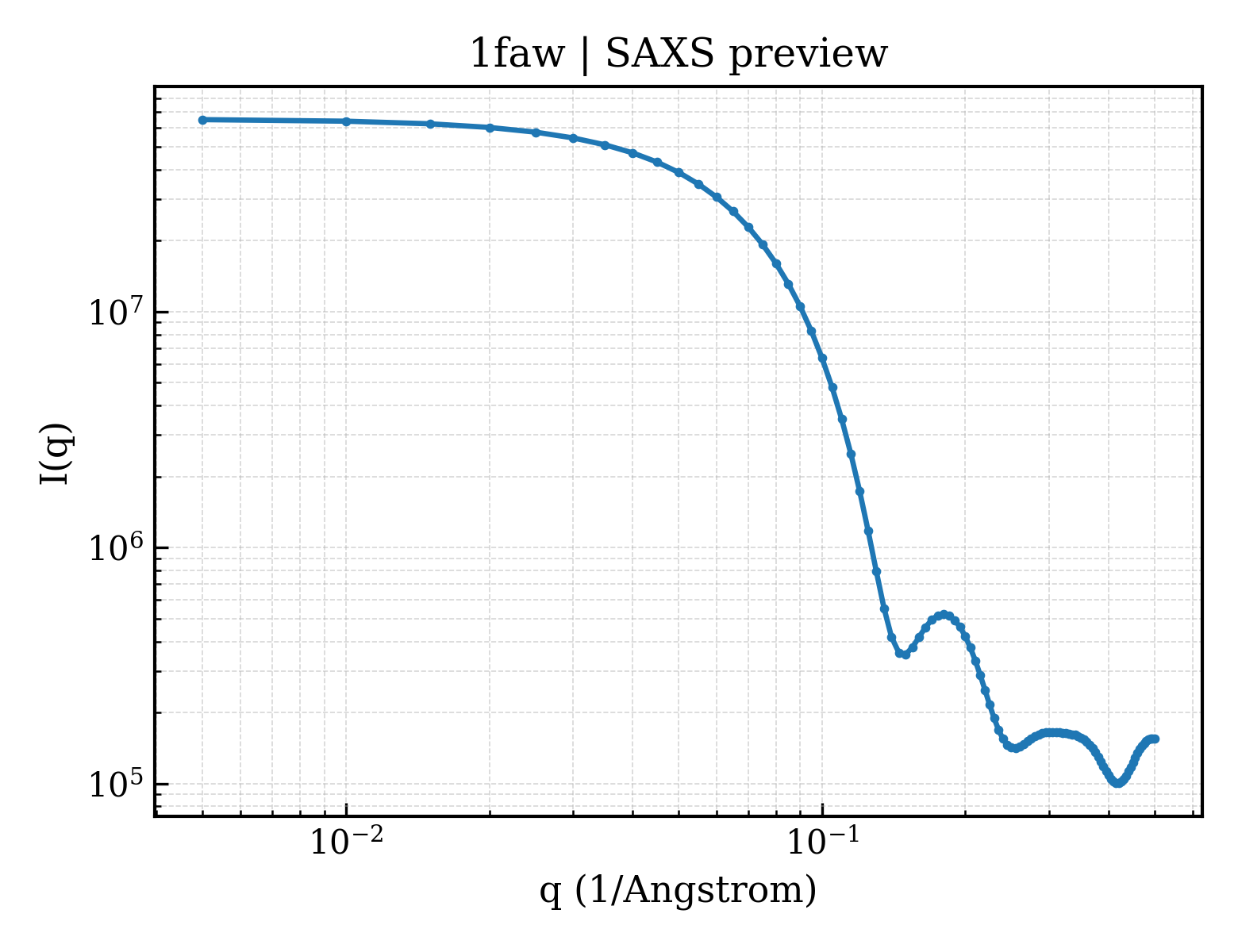

1faw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

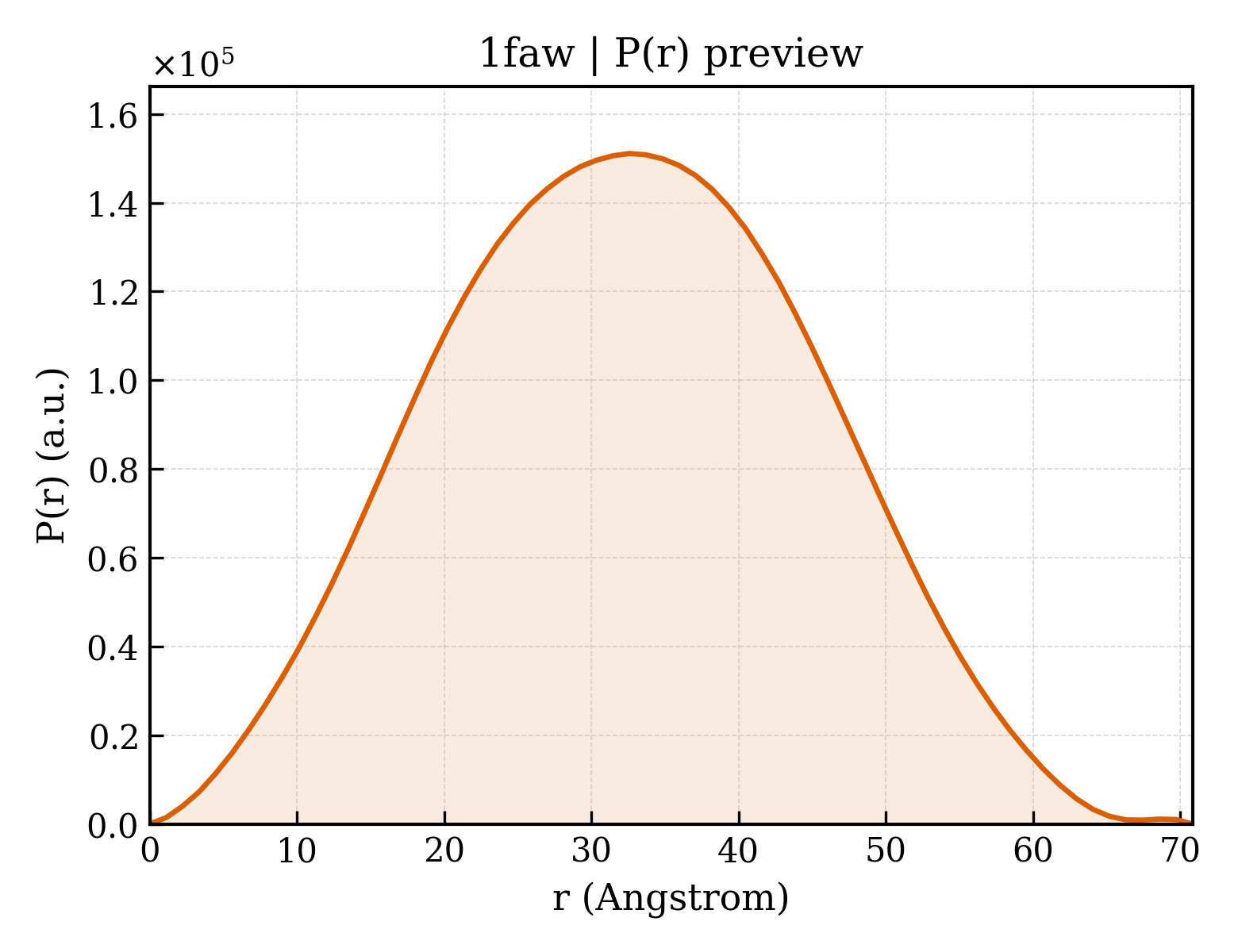

1faw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.84 Å
Rg (electron density)	23.52 Å
Total Rg	24.50 Å
Atom count	4650
Residues	574
Excluded volume	83429 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1faw__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HEMOGLOBIN (ALPHA SUBUNIT)
Molecular weight formula_weight	15329.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4650

VLSAADKTNVKGVFSKIGGHAEEYGAETLERMFTAYPQTKTYFPHFDLQHGSAQIKAHGKKVAAALVEAVNHIDDIAGALSKLSDLHAQKLRVDPVNFKFLGHCFLVVVAIHHPSALTPEVHASLDKFLCAVGTVLTAKYR

Entity 2 Entity 2 polymer

Description description	HEMOGLOBIN (BETA SUBUNIT)
Molecular weight formula_weight	16327.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

VHWSAEEKQLITGLWGKVNVADCGAEALARLLIVYPWTQRFFSSFGNLSSPTAILGNPMVRAHGKKVLTSFGDAVKNLDNIKNTFAQLSELHCDKLHVDPENFRLLGDILIIVLAAHFAKEFTPECQAAWQKLVRVVAHALARKYH

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	OXYGEN MOLECULE
Molecular weight formula_weight	32.0 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1fawa_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1fawb_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1fawc_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1fawd_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

CATH v4.4 (4 domains)

Domain ID domain_id	1fawA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1fawB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1fawC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1fawD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

▶

Unit-cell length a length_a	57.552 Å
Unit-cell length b length_b	80.624 Å
Unit-cell length c length_c	72.571 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.75 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.090 Å
Low-resolution limit resolution_low	31.300 Å
R factor r_factor	0.1760
R_work r_work	0.1760
R_free r_free	0.2200
