SAXSdb — 1fbl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FIBROBLAST (INTERSTITIAL) COLLAGENASE (MMP-1)

Sus scrofa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 8 ZINC ION × 4 N-[3-(N'-HYDROXYCARBOXAMIDO)-2-(2-METHYLPROPYL)-PROPANOYL]-O-TYROSINE-N-METHYLAMIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MMP1_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–370； UniProt 100–469

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fbl
Deposition date deposition_date	1995-04-24
Structure title title	STRUCTURE OF FULL-LENGTH PORCINE SYNOVIAL COLLAGENASE (MMP1) REVEALS A C-TERMINAL DOMAIN CONTAINING A CALCIUM-LINKED, FOUR-BLADED BETA-PROPELLER
Keywords keywords	METALLOPROTEASE; METALLOPROTEASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fbl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fbl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

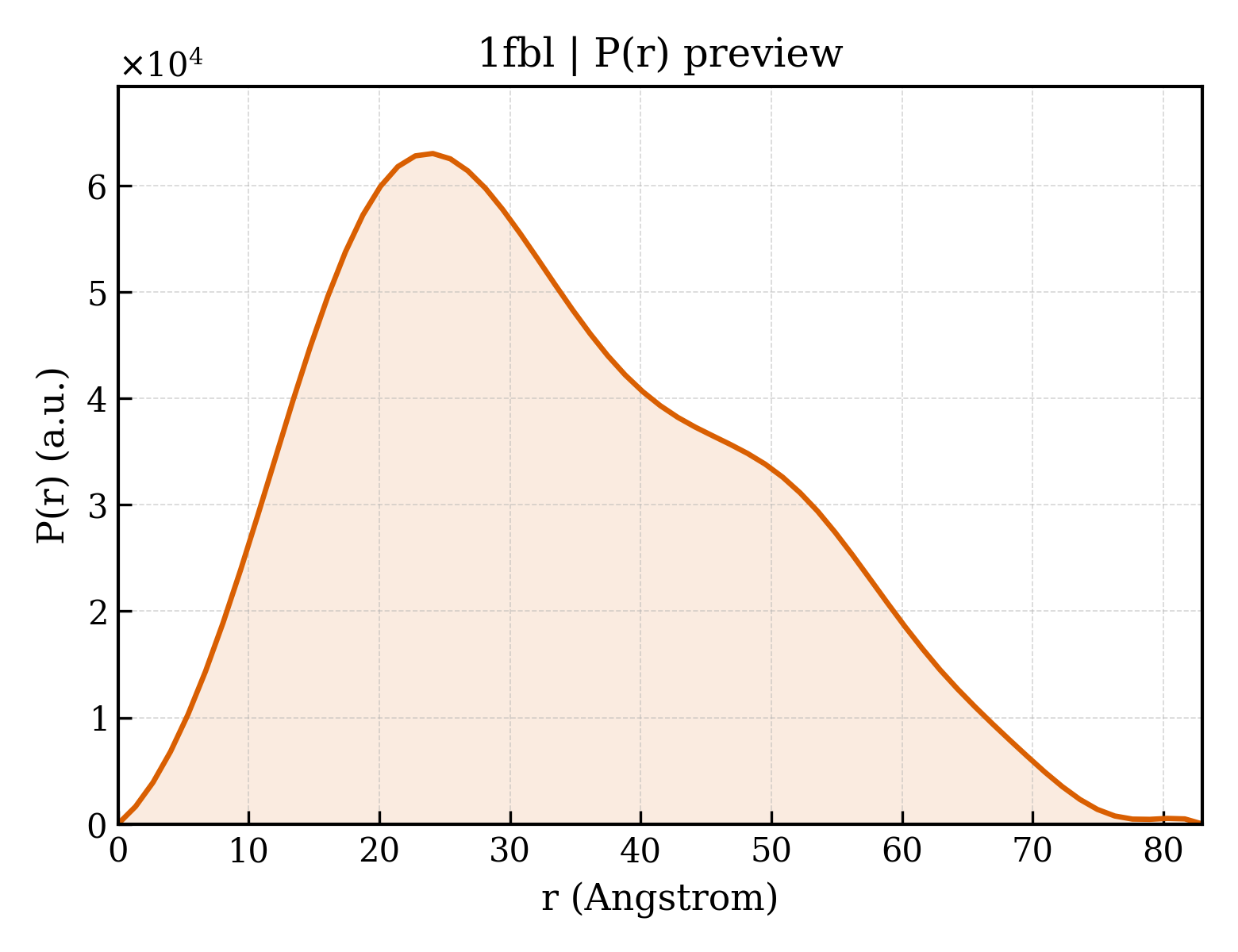

1fbl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.55 Å
Rg (electron density)	29.86 Å
Total Rg	30.52 Å
Atom count	5998
Residues	734
Excluded volume	105730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fbl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	FIBROBLAST (INTERSTITIAL) COLLAGENASE (MMP-1)
Molecular weight formula_weight	42688.4 kDa
EC 编号 ec_number	3.4.24.7
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3294

FVLTPGNPRWENTHLTYRIENYTPDLSREDVDRAIEKAFQLWSNVSPLTFTKVSEGQADIMISFVRGDHRDNSPFDGPGGNLAHAFQPGPGIGGDAHFDEDERWTKNFRDYNLYRVAAHELGHSLGLSHSTDIGALMYPNYIYTGDVQLSQDDIDGIQAIYGPSENPVQPSGPQTPQVCDSKLTFDAITTLRGELMFFKDRFYMRTNSFYPEVELNFISVFWPQVPNGLQAAYEIADRDEVRFFKGNKYWAVRGQDVLYGYPKDIHRSFGFPSTVKNIDAAVFEEDTGKTYFFVAHECWRYDEYKQSMDTGYPKMIAEEFPGIGNKVDAVFQKDGFLYFFHGTRQYQFDFKTKRILTLQKANSWFNCRKN

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	N-[3-(N'-HYDROXYCARBOXAMIDO)-2-(2-METHYLPROPYL)-PROPANOYL]-O-TYROSINE-N-METHYLAMIDE
Molecular weight formula_weight	379.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	295

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fbla1
Class class	b — All beta proteins
Fold Fold fold	b.66 — 4-bladed beta-propeller
Superfamily Superfamily superfamily	b.66.1 — Hemopexin-like domain
Family Family family	b.66.1.1 — Hemopexin-like domain

Domain ID domain_id	d1fbla2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.11 — Matrix metalloproteases, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1fblA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

Domain ID domain_id	1fblA02
Class class	2 — Mainly Beta
Architecture architecture	110 — 4 Propeller
Topology topology	10 — Hemopexin
Homologous superfamily homologous superfamily	10 — Hemopexin-like domain

▶

Unit-cell length a length_a	161.140 Å
Unit-cell length b length_b	161.140 Å
Unit-cell length c length_c	52.220 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 41
Space-group number int_tables_number	80
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	9.000 Å
R factor r_factor	0.2170
R_work r_work	0.2170
R_free r_free	—

STRUCTURE OF FULL-LENGTH PORCINE SYNOVIAL COLLAGENASE (MMP1) REVEALS A C-TERMINAL DOMAIN CONTAINING A CALCIUM-LINKED, FOUR-BLADED BETA-PROPELLER
