1fcj

CRYSTAL STRUCTURE OF OASS COMPLEXED WITH CHLORIDE AND SULFATE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

O-ACETYLSERINE SULFHYDRYLASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 CHLORIDE ION × 2 PYRIDOXAL-5'-PHOSPHATE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 2 CHLORIDE ION × 2 PYRIDOXAL-5'-PHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYSK_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–322； UniProt 1–322 Author chain B； PDBConstruct 1–322； UniProt 1–322 Author chain C； PDBConstruct 1–322； UniProt 1–322 Author chain D； PDBConstruct 1–322； UniProt 1–322

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fcj
Deposition date deposition_date	2000-07-18
Structure title title	CRYSTAL STRUCTURE OF OASS COMPLEXED WITH CHLORIDE AND SULFATE
Keywords keywords	homodimer, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fcj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fcj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

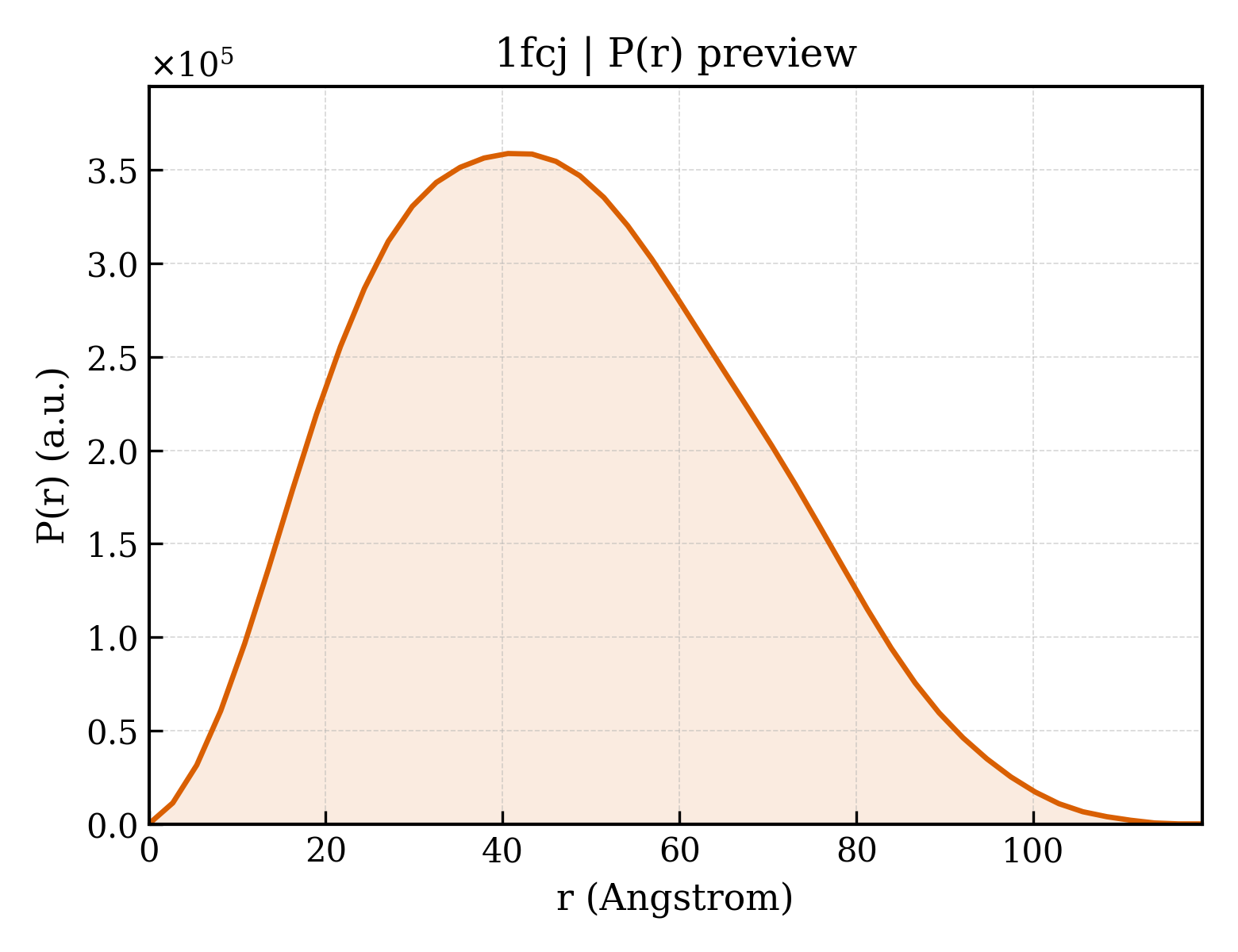

1fcj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.43 Å
Rg (electron density)	24.55 Å
Total Rg	25.34 Å
Atom count	4564
Residues	606
Excluded volume	81815 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fcj__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fcj__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	O-ACETYLSERINE SULFHYDRYLASE
Molecular weight formula_weight	34470.4 kDa
EC 编号 ec_number	4.2.99.8
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	10246

SKIYEDNSLTIGHTPLVRLNRIGNGRILAKVESRNPSFSVKCRIGANMIWDAEKRGVLKPGVELVEPTNGNTGIALAYVAAARGYKLTLTMPETMSIERRKLLKALGANLVLTEGAKGMKGAIQKAEEIVASDPQKYLLLQQFSNPANPEIHEKTTGPEIWEDTDGQVDVFISGVGTGGTLTGVTRYIKGTKGKTDLITVAVEPTDSPVIAQALAGEEIKPGPHKIQGIGAGFIPGNLDLKLIDKVVGITNEEAISTARRLMEEEGILAGISSGAAVAAALKLQEDESFTNKNIVVILPSSGERYLSTALFADLFTEKELQQ

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1118

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1fcja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Superfamily Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Family Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

Domain ID domain_id	d1fcjb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Superfamily Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Family Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

Domain ID domain_id	d1fcjc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Superfamily Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Family Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

Domain ID domain_id	d1fcjd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Superfamily Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
Family Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

CATH v4.4 (8 domains)

Domain ID domain_id	1fcjA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

Domain ID domain_id	1fcjD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1100 —

▶

Unit-cell length a length_a	96.380 Å
Unit-cell length b length_b	100.490 Å
Unit-cell length c length_c	142.810 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	28.130 Å
R factor r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2460
