SAXSdb — 1fco

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-LACTAMASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;(2R)-2-[(1R)-1-{[(2S)-2-carboxy-2-(4-hydroxyphenyl)acetyl]amino}-1-methoxy-2-oxoethyl]-5-methylidene-5,6-dihydro-2H-1,3-oxazine-4-carboxylic acid ; × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	;(2R)-2-[(1R)-1-{[(2S)-2-carboxy-2-(4-hydroxyphenyl)acetyl]amino}-1-methoxy-2-oxoethyl]-5-methylidene-5,6-dihydro-2H-1,3-oxazine-4-carboxylic acid ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AMPC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–358； UniProt 20–377 Author chain B； PDBConstruct 1–358； UniProt 20–377

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fco
Deposition date deposition_date	2000-07-19
Structure title title	CRYSTAL STRUCTURE OF THE E. COLI AMPC BETA-LACTAMASE COVALENTLY ACYLATED WITH THE INHIBITORY BETA-LACTAM, MOXALACTAM
Keywords keywords	beta-lactamase beta-lactam complex, enzyme inhibitor complex, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fco__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fco__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

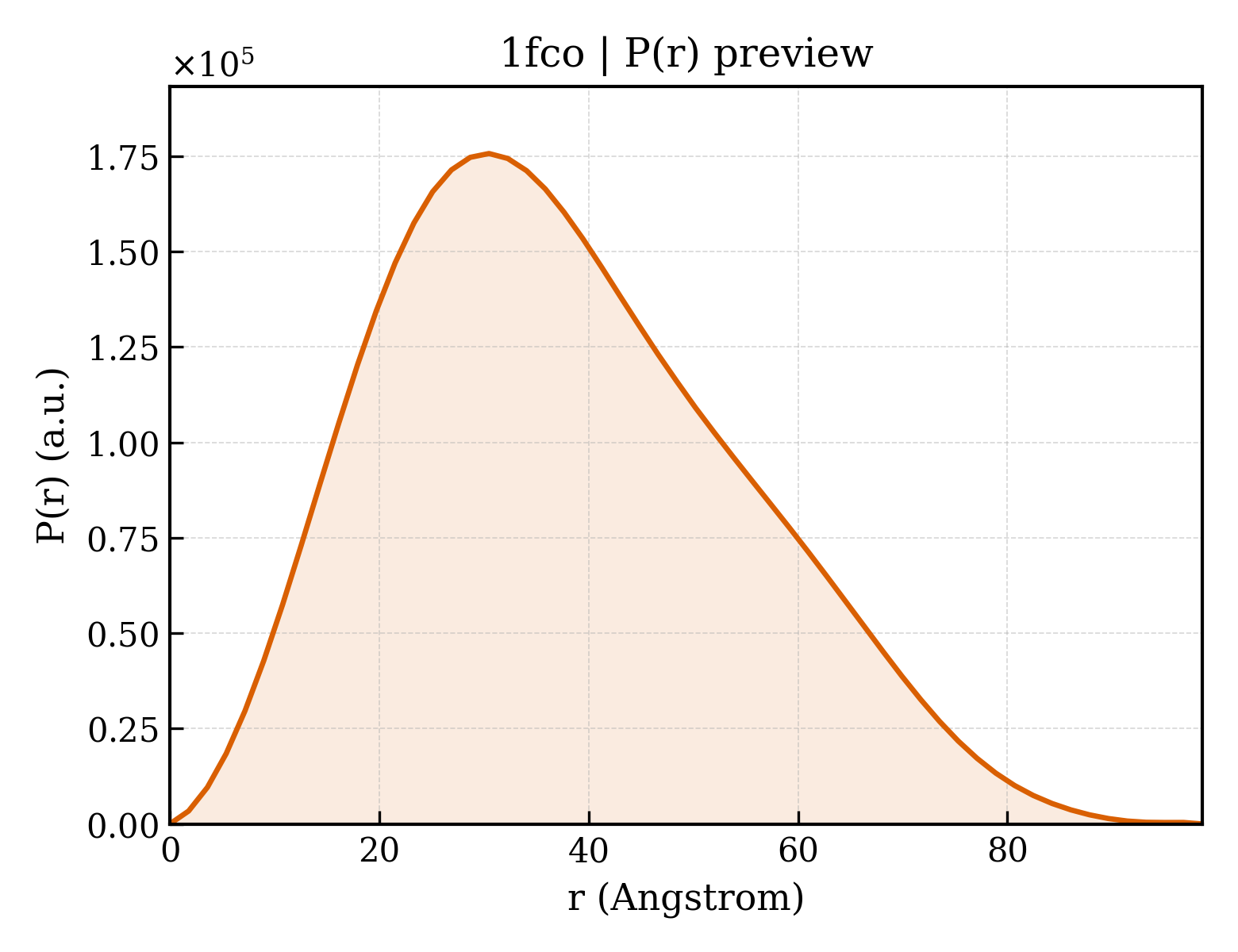

1fco__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.61 Å
Rg (electron density)	19.55 Å
Total Rg	20.54 Å
Atom count	2786
Residues	353
Excluded volume	49751 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fco__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fco__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BETA-LACTAMASE
Molecular weight formula_weight	39587.9 kDa
EC 编号 ec_number	3.5.2.6
Mutation mutation	Q120L/Y150E
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5756

APQQINDIVHRTITPLIEQQKIPGMAVAVIYQGKPYYFTWGYADIAKKQPVTQQTLFELGSVSKTFTGVLGGDAIARGEIKLSDPTTKYWPELTAKQWNGITLLHLATYTAGGLPLQVPDEVKSSSDLLRFYQNWQPAWAPGTQRLYANSSIGLFGALAVKPSGLSFEQAMQTRVFQPLKLNHTWINVPPAEEKNYAWGYREGKAVHVSPGALDAEAYGVKSTIEDMARWVQSNLKPLDINEKTLQQGIQLAQSRYWQTGDMYQGLGWEMLDWPVNPDSIINGSDNKIALAARPVKAITPPTPAVRASWVHKTGATGGFGSYVAFIPEKELGIVMLANKNYPNPARVDAAWQILNALQ

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;(2R)-2-[(1R)-1-{[(2S)-2-carboxy-2-(4-hydroxyphenyl)acetyl]amino}-1-methoxy-2-oxoethyl]-5-methylidene-5,6-dihydro-2H-1,3-oxazine-4-carboxylic acid ;
Molecular weight formula_weight	406.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fcoa_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

Domain ID domain_id	d1fcob_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

CATH v4.4 (2 domains)

Domain ID domain_id	1fcoA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

Domain ID domain_id	1fcoB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

▶

Unit-cell length a length_a	118.116 Å
Unit-cell length b length_b	77.166 Å
Unit-cell length c length_c	97.923 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	116.17 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2150
R_free r_free	0.2580

CRYSTAL STRUCTURE OF THE E. COLI AMPC BETA-LACTAMASE COVALENTLY ACYLATED WITH THE INHIBITORY BETA-LACTAM, MOXALACTAM
