1. Protein Identity and Related Structures Protein Identity & Related Structures

FORMATE DEHYDROGENASE H

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	IRON/SULFUR CLUSTER × 1 2-AMINO-5,6-DIMERCAPTO-7-METHYL-3,7,8A,9-TETRAHYDRO-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-4-ONE GUANOSINE DINUCLEOTIDE × 2 MOLYBDENUM(VI) ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FDHF_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–715； UniProt 1–715

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fdo
Deposition date deposition_date	1997-01-27
Structure title title	OXIDIZED FORM OF FORMATE DEHYDROGENASE H FROM E. COLI
Keywords keywords	;OXIDOREDUCTASE, SELENIUM, SELENOCYSTEINE, SECYS, MOLYBDENUM, MOLYBDOPTERIN, MPT, MOLYBDOPTERIN GUANINE DINUCLEOTIDE, MGD, IRON SULFUR CLUSTER, FE4S4, FORMATE, DEHYDROGENASE, ANAEROBIC ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fdo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fdo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

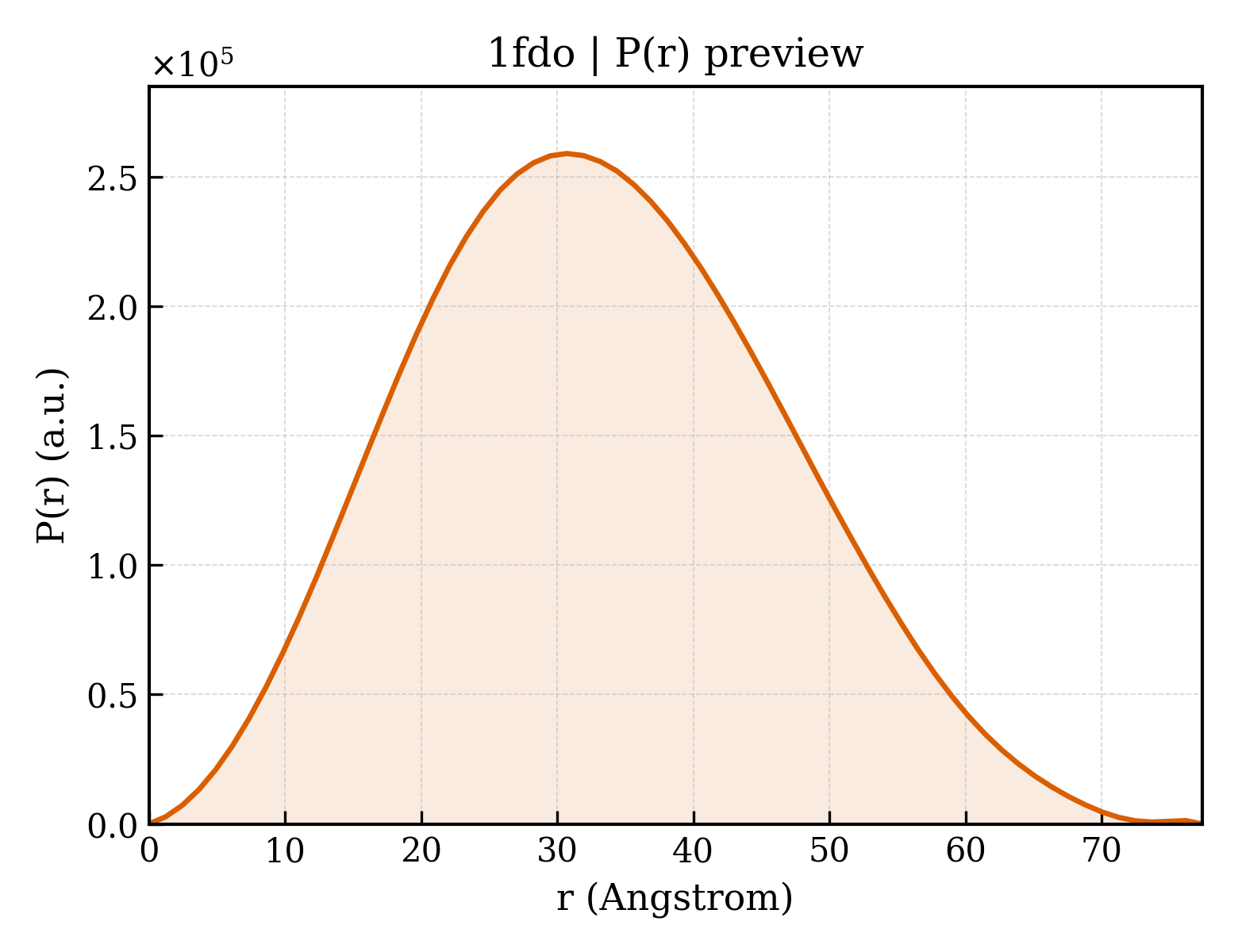

1fdo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.35 Å
Rg (electron density)	24.56 Å
Total Rg	25.26 Å
Atom count	5678
Residues	715
Excluded volume	100230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fdo__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	FORMATE DEHYDROGENASE H
Molecular weight formula_weight	79465.7 kDa
EC 编号 ec_number	1.2.1.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5742

MKKVVTVCPYCASGCKINLVVDNGKIVRAEAAQGKTNQGTLCLKGYYGWDFINDTQILTPRLKTPMIRRQRGGKLEPVSWDEALNYVAERLSAIKEKYGPDAIQTTGSSRGTGNETNYVMQKFARAVIGTNNVDCCARVUHGPSVAGLHQSVGNGAMSNAINEIDNTDLVFVFGYNPADSHPIVANHVINAKRNGAKIIVCDPRKIETARIADMHIALKNGSNIALLNAMGHVIIEENLYDKAFVASRTEGFEEYRKIVEGYTPESVEDITGVSASEIRQAARMYAQAKSAAILWGMGVTQFYQGVETVRSLTSLAMLTGNLGKPHAGVNPVRGQNNVQGACDMGALPDTYPGYQYVKDPANREKFAKAWGVESLPAHTGYRISELPHRAAHGEVRAAYIMGEDPLQTDAELSAVRKAFEDLELVIVQDIFMTKTASAADVILPSTSWGEHEGVFTAADRGFQRFFKAVEPKWDLKTDWQIISEIATRMGYPMHYNNTQEIWDELRHLCPDFYGATYEKMGELGFIQWPCRDTSDADQGTSYLFKEKFDTPNGLAQFFTCDWVAPIDKLTDEYPMVLSTVREVGHYSCRSMTGNCAALAALADEPGYAQINTEDAKRLGIEDEALVWVHSRKGKIITRAQVSDRPNKGAIYMTYQWWIGACNELVTENLSPITKTPEYKYCAVRVEPIADQRAAEQYVIDEYNKLKTRLREAALA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-AMINO-5,6-DIMERCAPTO-7-METHYL-3,7,8A,9-TETRAHYDRO-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-4-ONE GUANOSINE DINUCLEOTIDE
Molecular weight formula_weight	740.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MOLYBDENUM(VI) ION
Molecular weight formula_weight	95.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	64

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fdoa1
Class class	b — All beta proteins
Fold Fold fold	b.52 — Double psi beta-barrel
Superfamily Superfamily superfamily	b.52.2 — ADC-like
Family Family family	b.52.2.2 — Formate dehydrogenase/DMSO reductase, C-terminal domain

Domain ID domain_id	d1fdoa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.81 — Formate dehydrogenase/DMSO reductase, domains 1-3
Superfamily Superfamily superfamily	c.81.1 — Formate dehydrogenase/DMSO reductase, domains 1-3
Family Family family	c.81.1.1 — Formate dehydrogenase/DMSO reductase, domains 1-3

CATH v4.4 (5 domains)

Domain ID domain_id	1fdoA01
Class class	2 — Mainly Beta
Architecture architecture	20 — Single Sheet
Topology topology	25 — N-terminal domain of TfIIb
Homologous superfamily homologous superfamily	90 — ADC-like domains

Domain ID domain_id	1fdoA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	740 —

Domain ID domain_id	1fdoA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	228 — Dimethylsulfoxide Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 2

Domain ID domain_id	1fdoA04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	40 — Barwin-like endoglucanases
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1fdoA05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	460 — Single helix bin

▶

Unit-cell length a length_a	146.600 Å
Unit-cell length b length_b	146.600 Å
Unit-cell length c length_c	81.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2810
