1fea

UNLIGANDED CRITHIDIA FASCICULATA TRYPANOTHIONE REDUCTASE AT 2.2 ANGSTROM RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRYPANOTHIONE REDUCTASE

Crithidia fasciculata

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	FLAVIN-ADENINE DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TYTR_CRIFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–490； UniProt 2–491 Author chain B； PDBConstruct 1–490； UniProt 2–491 Author chain C； PDBConstruct 1–490； UniProt 2–491 Author chain D； PDBConstruct 1–490； UniProt 2–491

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fea
Deposition date deposition_date	1995-07-12
Structure title title	UNLIGANDED CRITHIDIA FASCICULATA TRYPANOTHIONE REDUCTASE AT 2.2 ANGSTROM RESOLUTION
Keywords keywords	REDOX-ACTIVE CENTER, OXIDOREDUCTASE, FLAVOPROTEIN, FAD, NADP; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fea__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fea__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

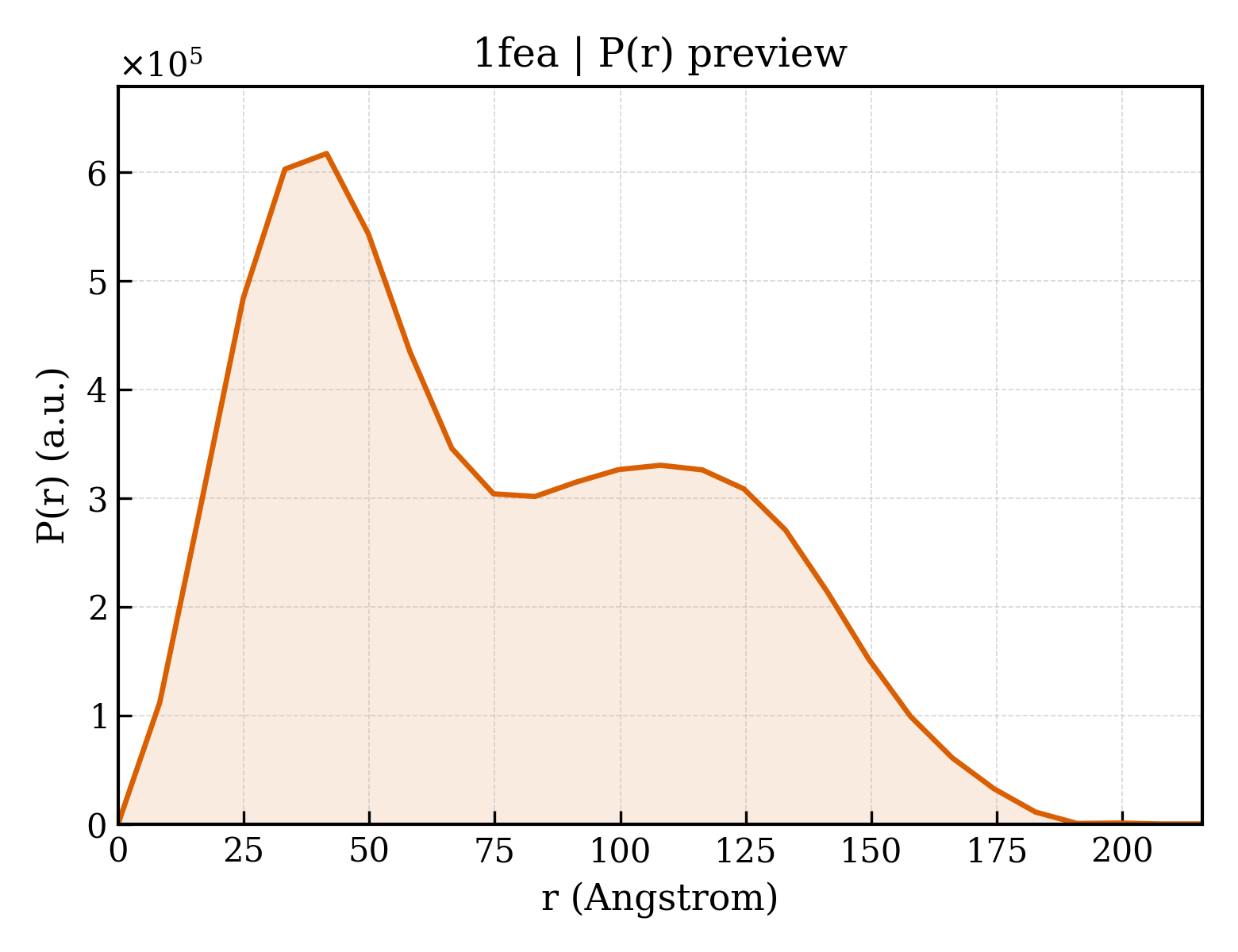

1fea__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.63 Å
Rg (electron density)	30.82 Å
Total Rg	31.28 Å
Atom count	7501
Residues	971
Excluded volume	132610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fea__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fea__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRYPANOTHIONE REDUCTASE
Molecular weight formula_weight	53176.0 kDa
EC 编号 ec_number	1.6.4.8
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	15364

SRAYDLVVIGAGSGGLEAGWNAASLHKKRVAVIDLQKHHGPPHYAALGGTCVNVGCVPKKLMVTGANYMDTIRESAGFGWELDRESVRPNWKALIAAKNKAVSGINDSYEGMFADTEGLTFHQGFGALQDNHTVLVRESADPNSAVLETLDTEYILLATGSWPQHLGIEGDDLCITSNEAFYLDEAPKRALCVGGGYISIEFAGIFNAYKARGGQVDLAYRGDMILRGFDSELRKQLTEQLRANGINVRTHENPAKVTKNADGTRHVVFESGAEADYDVVMLAIGRVPRSQTLQLEKAGVEVAKNGAIKVDAYSKTNVDNIYAIGDVTDRVMLTPVAINEGAAFVDTVFANKPRATDHTKVACAVFSIPPMGVCGYVEEDAAKKYDQVAVYESSFTPLMHNISGSTYKKFMVRIVTNHADGEVLGVHMLGDSSPEIIQSVAICLKMGAKISDFYNTIGVHPTSAEELCSMRTPAYFYEKGKRVEKIDSNL

Source Source

Source organism organism	Crithidia fasciculata
NCBI taxonomy ID ncbi_taxonomy_id	5656
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	362

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1feaa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feaa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feaa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

Domain ID domain_id	d1feab1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feab2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feab3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

Domain ID domain_id	d1feac1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feac2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1feac3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

Domain ID domain_id	d1fead1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1fead2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1fead3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

CATH v4.4 (12 domains)

Domain ID domain_id	1feaA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	1feaB01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaB02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	1feaC01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaC02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	1feaD01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaD02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1feaD03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

Unit-cell length a length_a	123.000 Å
Unit-cell length b length_b	160.800 Å
Unit-cell length c length_c	58.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.80 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1850
R_work r_work	0.1850
R_free r_free	—
