SAXSdb — 1fgm

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fgm
沉积日期 deposition_date	2000-07-28
结构标题 title	LIPOXYGENASE-1 (SOYBEAN) AT 100K, N694H MUTANT
关键词 keywords	DIOXYGENASE, LIPOXYGENASE, METALLOPROTEIN, FATTY ACIDS, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.88 Å
回转半径 Rg (电子) rg_electron	28.00 Å
零角强度 I(0) i0	129807000.00
分子量 molecular_weight	92307.0 kDa
排除体积 excluded_volume	116330 Å³
包络体积 envelope_volume	137560 Å³
水化壳体积 shell_volume	40011 Å³
包络直径 envelope_diameter	100.6 Å
壳层 Rg shell_rg	36.25 Å
包络 Rg envelope_rg	28.31 Å
形状 Rg shape_rg	27.97 Å
总 Rg total_rg	28.85 Å
总原子数 total_atoms	6520
残基数 n_residues	818
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	95.9 Å
Rg (实空间) rg_real	28.85 Å
Rg 误差 (实空间) rg_real_error	0.56 Å
I(0) (实空间) i0_real	1.2980e+08
I(0) 误差 (实空间) i0_real_error	1.8700e+06
Rg (倒空间) rg_reciprocal	28.87 Å
I(0) (倒空间) i0_reciprocal	129800000.0000
解质量估计 total_estimate	0.8776
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.1 Å
偏度 Skewness skewness	0.389
峰度 Kurtosis kurtosis	-0.164
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	38950000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.973

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	SEED LIPOXYGENASE-1
分子量 formula_weight	94504.2 kDa
EC 编号 ec_number	1.13.11.12
突变 mutation	N694H
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7248

MFSAGHKIKGTVVLMPKNELEVNPDGSAVDNLNAFLGRSVSLQLISATKADAHGKGKVGKDTFLEGINTSLPTLGAGESAFNIHFEWDGSMGIPGAFYIKNYMQVEFFLKSLTLEAISNQGTIRFVCNSWVYNTKLYKSVRIFFANHTYVPSETPAPLVSYREEELKSLRGNGTGERKEYDRIYDYDVYNDLGNPDKSEKLARPVLGGSSTFPYPRRGRTGRGPTVTDPNTEKQGEVFYVPRDENLGHLKSKDALEIGTKSLSQIVQPAFESAFDLKSTPIEFHSFQDVHDLYEGGIKLPRDVISTIIPLPVIKELYRTDGQHILKFPQPHVVQVSQSAWMTDEEFAREMIAGVNPCVIRGLEEFPPKSNLDPAIYGDQSSKITADSLDLDGYTMDEALGSRRLFMLDYHDIFMPYVRQINQLNSAKTYATRTILFLREDGTLKPVAIELSLPHSAGDLSAAVSQVVLPAKEGVESTIWLLAKAYVIVNDSCYHQLMSHWLNTHAAMEPFVIATHRHLSVLHPIYKLLTPHYRNNMNINALARQSLINANGIIETTFLPSKYSVEMSSAVYKNWVFTDQALPADLIKRGVAIKDPSTPHGVRLLIEDYPYAADGLEIWAAIKTWVQEYVPLYYARDDDVKNDSELQHWWKEAVEKGHGDLKDKPWWPKLQTLEDLVEVCLIIIWIASALHAAVHFGQYPYGGLIMNRPTASRRLLPEKGTPEYEEMINNHEKAYLRTITSKLPTLISLSVIEILSTHASDEVYLGQRDNPHWTSDSKALQAFQKFGNKLKEIEEKLVRRNNDPSLQGNRLGPVQLPYTLLYPSSEEGLTFRGIPNSISI

来源 Source

来源生物 organism	Glycine max
通用名 common_name	soybean
NCBI 分类编号 ncbi_taxonomy_id	3847
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	681

▼

6. 折叠分类 (SCOP + CATH) 7 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1fgma1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.119 — Lipoxigenase
超家族 Superfamily superfamily	a.119.1 — Lipoxigenase
家族 Family family	a.119.1.1 — Plant lipoxigenases

结构域编号 domain_id	d1fgma2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.12 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
超家族 Superfamily superfamily	b.12.1 — Lipase/lipooxygenase domain (PLAT/LH2 domain)
家族 Family family	b.12.1.1 — Lipoxigenase N-terminal domain

CATH v4.4 (5 domains)

结构域编号 domain_id	1fgmA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	60 — Lipoxygenase-1
同源超家族 H-superfamily homologous superfamily	20 — PLAT/LH2 domain

结构域编号 domain_id	1fgmA02
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	375 — Lipoxygenase-1; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lipoxygenase-1; Domain 2

结构域编号 domain_id	1fgmA03
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	372 — Lipoxygenase-1; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Lipoxygenase-1; Domain 3

结构域编号 domain_id	1fgmA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1fgmA05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	245 — Lipoxygenase-1; domain 5
同源超家族 H-superfamily homologous superfamily	10 — Lipoxygenase-1; Domain 5

▶

7. 引用文献 (8)

Structural and functional characterization of second-coordination sphere mutants of soybean lipoxygenase-1.

Biochemistry (2001)

PMID: 11412104 · DOI: 10.1021/bi002893d PRIMARY

CRYSTAL STRUCTURE OF SOYBEAN LIPOXYGENASE L-1 AT 1.4 A RESOLUTION

Biochemistry (1996)

DOI: 10.1021/bi960576u

EXPERIMENTAL EVIDENCE FOR EXTENSIVE TUNNELING OF HYDROGEN IN THE LIPOXYGENASE REACTION: IMPLICATIONS FOR ENZYME CATALYSIS

J.Am.Chem.Soc. (1996)

DOI: 10.1021/ja961827p

NATURE OF THE RATE-LIMITING STEPS IN THE SOYBEAN LIPOXYGENASE-1 REACTION

Biochemistry (1995)

THE STRUCTURE AND FUNCTION OF LIPOXYGENASE

CURR.OPIN.STRUCT.BIOL. (1994)

THE THREE-DIMENSIONAL STRUCTURE OF AN ARACHIDONIC ACID 15-LIPOXYGENASE

Science (1993)

CRYSTALLOGRAPHIC DETERMINATION OF THE ACTIVE SITE IRON AND ITS LIGANDS IN SOYBEAN LIPOXYGENASE L-1

Biochemistry (1993)

CRYSTALLIZATION AND PRELIMINARY X-RAY INVESTIGATION OF LIPOXYGENASE 1 FROM SOYBEANS

J.Biol.Chem. (1990)

▶

晶胞边长 a length_a	94.260 Å
晶胞边长 b length_b	92.770 Å
晶胞边长 c length_c	49.230 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.22 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1890
R_work r_work	0.1783
R_free r_free	0.2124

fit	/app/data/saxs_computation/fg/1fgm/1fgm.fit
pddf	/app/data/pr_computation/fg/1fgm/1fgm.pr.out
profile	/app/data/saxs_computation/fg/1fgm/1fgm.dat

LIPOXYGENASE-1 (SOYBEAN) AT 100K, N694H MUTANT

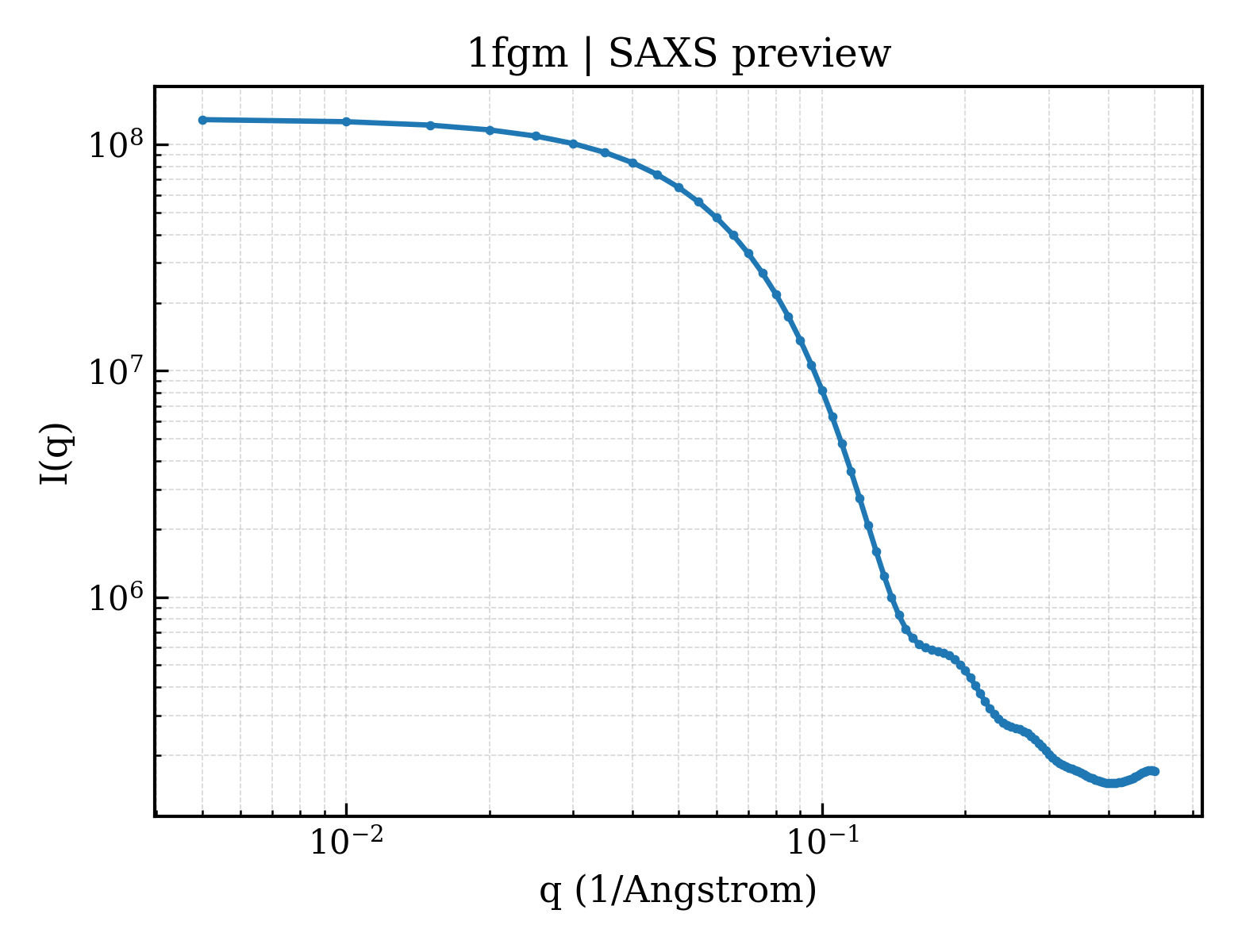

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution
