1flc

X-RAY STRUCTURE OF THE HAEMAGGLUTININ-ESTERASE-FUSION GLYCOPROTEIN OF INFLUENZA C VIRUS

Method: X-RAY DIFFRACTION D_max: 151.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1flc
沉积日期 deposition_date	1999-02-22
结构标题 title	X-RAY STRUCTURE OF THE HAEMAGGLUTININ-ESTERASE-FUSION GLYCOPROTEIN OF INFLUENZA C VIRUS
关键词 keywords	ESTERASE, RECEPTOR BINDING, MEMBRANE FUSION, VIRUS, INFLUENZA, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.05 Å
回转半径 Rg (电子) rg_electron	43.86 Å
零角强度 I(0) i0	619828000.00
分子量 molecular_weight	203600.0 kDa
排除体积 excluded_volume	254220 Å³
包络体积 envelope_volume	335390 Å³
水化壳体积 shell_volume	65709 Å³
包络直径 envelope_diameter	151.7 Å
壳层 Rg shell_rg	47.02 Å
包络 Rg envelope_rg	43.42 Å
形状 Rg shape_rg	43.86 Å
总 Rg total_rg	43.97 Å
总原子数 total_atoms	14285
残基数 n_residues	1767
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

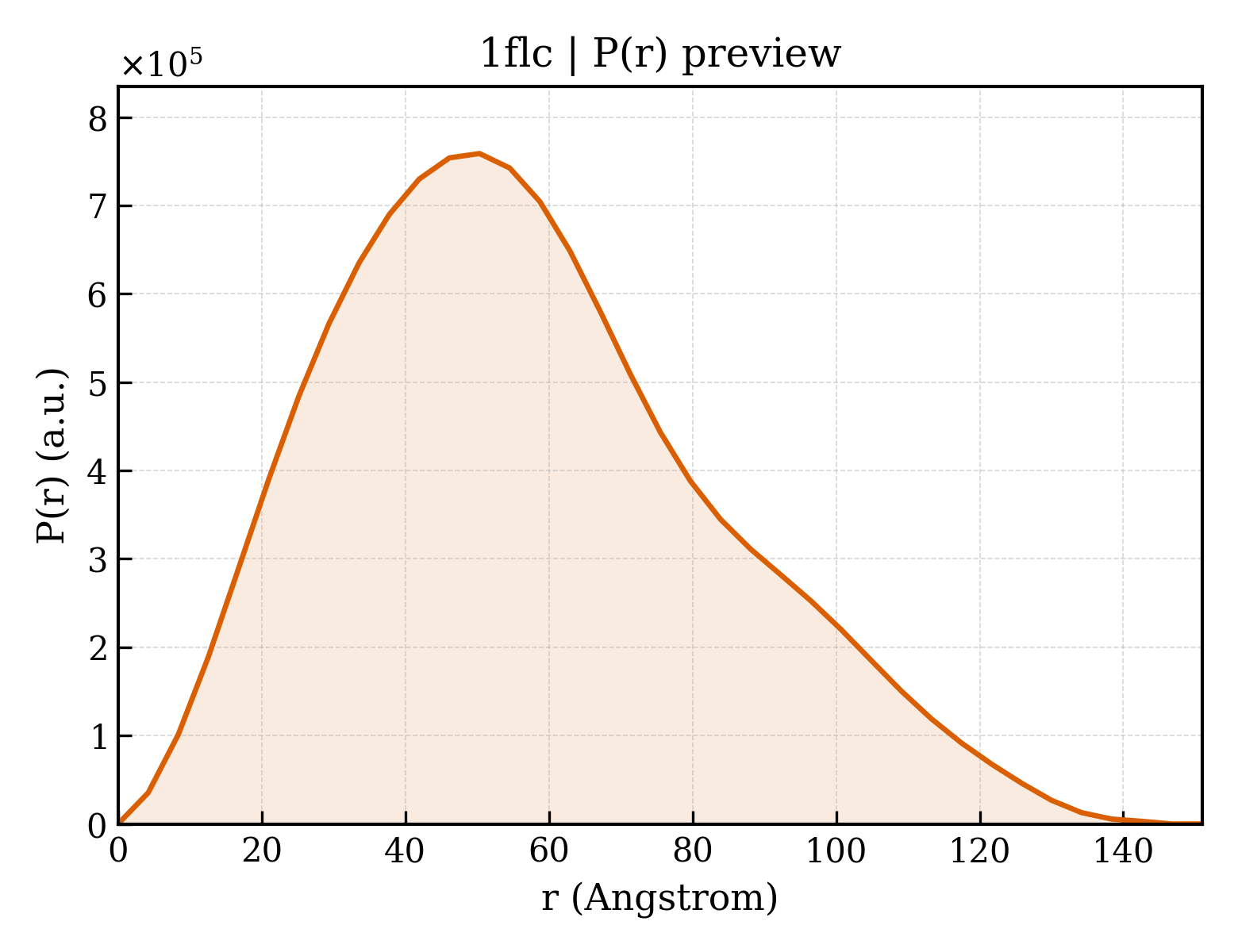

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.0 Å
Rg (实空间) rg_real	44.23 Å
Rg 误差 (实空间) rg_real_error	1.57 Å
I(0) (实空间) i0_real	6.1980e+08
I(0) 误差 (实空间) i0_real_error	1.1470e+07
Rg (倒空间) rg_reciprocal	44.06 Å
I(0) (倒空间) i0_reciprocal	619700000.0000
解质量估计 total_estimate	0.7963
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.3 Å
偏度 Skewness skewness	0.468
峰度 Kurtosis kurtosis	-0.289
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	60580000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.793; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	HAEMAGGLUTININ-ESTERASE-FUSION GLYCOPROTEIN
分子量 formula_weight	48230.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E
原子数 atom_count	14285

EKIKICLQKQVNSSFSLHNGFGGNLYATEEKRMFELVKPKAGASVLNQSTWIGFGDSRTDKSNSAFPRSADVSAKTADKFRFLSGGSLMLSMFGPPGKVDYLYQGCGKHKVFYEGVNWSPHAAINCYRKNWTDIKLNFQKNIYELASQSHCMSLVNALDKTIPLQVTAGTAGNCNNSFLKNPALYTQEVKPSENKCGKENLAFFTLPTQFGTYECKLHLVASCYFIYDSKEVYNKRGCDNYFQVIYDSFGKVVGGLDNRVSPYTGNSGDTPTMQCDMLQLKPGRYSVRSSPRFLLMPERSYCFDMKEKGPVTAVQSIWGKGRESDYAVDQACLSTPGCMLIQKQKPYIGEADDHHGDQEMRELLSGLDYEARCISQSGWVNETSPFTEKYLLPPKFGRCPLAAKEESIPKIPDGLLIPTSGTDTTVTKPKSR

来源 Source

来源生物 organism	Influenza C virus (C/Johannesburg/1/66)
NCBI 分类编号 ncbi_taxonomy_id	100673

Entity 2 polymer

描述 description	HAEMAGGLUTININ-ESTERASE-FUSION GLYCOPROTEIN
分子量 formula_weight	18977.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F

IFGIDDLIIGVLFVAIVETGIGGYLLGSRKESGGGVTKESAEKGFEKIGNDIQILKSSINIAIEKLNDRISHDEQAIRDLTLEIENARSEALLGELGIIRALLVGNISIGLQESLWELASEITNRAGDLAVEVSPGCWIIDNNICDQSCQNFIFKFNETAPVPTIPPLDTKIDLQ

来源 Source

来源生物 organism	Influenza C virus (C/Johannesburg/1/66)
NCBI 分类编号 ncbi_taxonomy_id	100673

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	11

Entity 4 branched

描述 description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 5 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-alpha-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 15 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d1flca1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.3 — Hemagglutinin domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flca2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.10 — SGNH hydrolase
家族 Family family	c.23.10.2 — Esterase domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flcb_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1flcc1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.3 — Hemagglutinin domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flcc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.10 — SGNH hydrolase
家族 Family family	c.23.10.2 — Esterase domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flcd_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

结构域编号 domain_id	d1flce1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.19 — Viral protein domain
超家族 Superfamily superfamily	b.19.1 — Viral protein domain
家族 Family family	b.19.1.3 — Hemagglutinin domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flce2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.23 — Flavodoxin-like
超家族 Superfamily superfamily	c.23.10 — SGNH hydrolase
家族 Family family	c.23.10.2 — Esterase domain of haemagglutinin-esterase-fusion glycoprotein HEF1

结构域编号 domain_id	d1flcf_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.1 — Influenza hemagglutinin (stalk)
家族 Family family	h.3.1.1 — Influenza hemagglutinin (stalk)

CATH v4.4 (6 domains)

结构域编号 domain_id	1flcA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1flcB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1flcC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1flcD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1flcE01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	70 — Ubiquitin Ligase Nedd4; Chain: W;
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1flcF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	20 — Hemagglutinin Ectodomain; Chain B
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	155.400 Å
晶胞边长 b length_b	155.400 Å
晶胞边长 c length_c	414.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 43 2 2
空间群编号 int_tables_number	95
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2230
R_work r_work	0.2230
R_free r_free	0.2670

fit	/app/data/saxs_computation/fl/1flc/1flc.fit
pddf	/app/data/pr_computation/fl/1flc/1flc.pr.out
profile	/app/data/saxs_computation/fl/1flc/1flc.dat
