SAXSdb — 1fm2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTARYL 7-AMINOCEPHALOSPORANIC ACID ACYLASE

Brevundimonas diminuta

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G7AC_BREDI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–169； UniProt 30–198 Author chain B； PDBConstruct 1–520； UniProt 199–718

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fm2
Deposition date deposition_date	2000-08-15
Structure title title	THE 2 ANGSTROM CRYSTAL STRUCTURE OF CEPHALOSPORIN ACYLASE
Keywords keywords	cephalosporin acylase, antibiotics, penicillin acylase, N-terminal hydrolase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fm2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fm2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

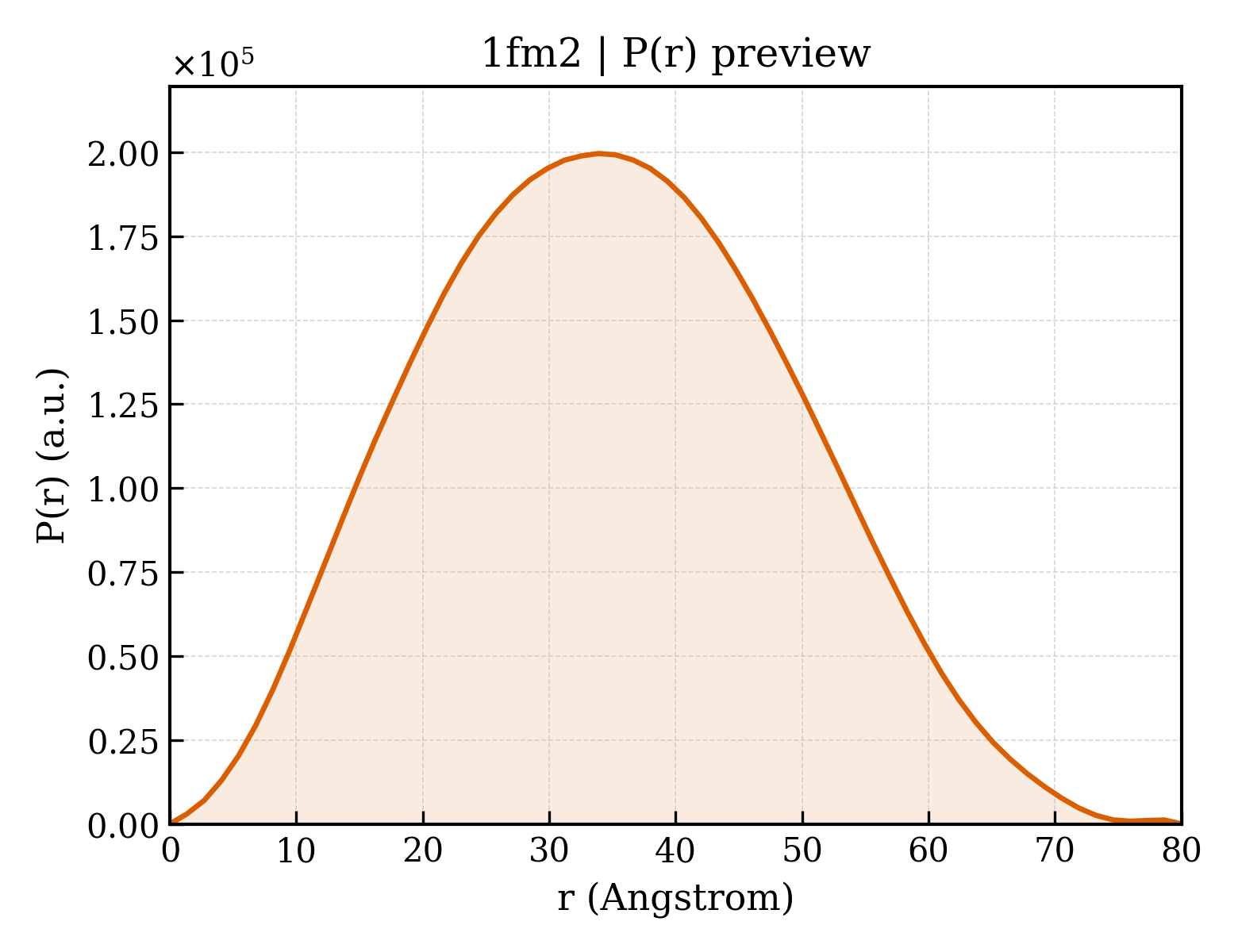

1fm2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.67 Å
Rg (electron density)	25.71 Å
Total Rg	26.41 Å
Atom count	5298
Residues	659
Excluded volume	92975 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fm2__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUTARYL 7-AMINOCEPHALOSPORANIC ACID ACYLASE
Molecular weight formula_weight	18567.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5720

EPTSTPQAPIAAYKPRSNEILWDGYGVPHIYGVDAPSAFYGYGWAQARSHGDNILRLYGEARGKGAEYWGPDYEQTTVWLLTNGVPERAQQWYAQQSPDFRANLDAFAAGINAYAQQNPDDISPEVRQVLPVSGADVVAHAHRLMNFLYVASPGRTLGEGDPPDLADQG

Source Source

Source organism organism	Brevundimonas diminuta
NCBI taxonomy ID ncbi_taxonomy_id	293
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GLUTARYL 7-AMINOCEPHALOSPORANIC ACID ACYLASE
Molecular weight formula_weight	58686.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SNSWAVAPGKTANGNALLLQNPHLSWTTDYFTYYEAHLVTPDFEIYGATQIGLPVIRFAFNQRMGITNTVNGMVGATNYRLTLQDGGYLYDGQVRPFERRQASYRLRQADGSTVDKPLEIRSSVHGPVFERADGTAVAVRVAGLDRPGMLEQYFDMITAHSFDDYEAAMARMQVPTFNIVYADREGTINYSFNGVAPKRAEGDIAFWQGNVPGDSSRYLWTETHPLDDLPRVTNPPGGFVQNSNDPPWTPTWPVTYCPANHPSYLAPQTPHSLRAQQSVRLMSENDDLTLERFMALQFSHRAVMADRTLPDLIPAALIDPDPEVQAAARLLAAWDRDFTSDSRAALLFEEWARLFAGQNFAGQAAFATPWSLDKPVSTPYGVRDPKAAVDQLRTAIANTKRKYGAIDRPFGDASRMILNDVNVPGAAGYGNLGSFRVFTWSDPDENGIRTPVHGETWVAMIEFSTPVRAYGLMSYGNSRQPGTTHYSDQIERVSRADFRELLLRREQVEAAVQERTPFNF

Source Source

Source organism organism	Brevundimonas diminuta
NCBI taxonomy ID ncbi_taxonomy_id	293
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	422

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1fm2.1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.2 — Penicillin acylase, catalytic domain

CATH v4.4 (4 domains)

Domain ID domain_id	1fm2A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	439 — Penicillin Amidohydrolase; domain 1
Homologous superfamily homologous superfamily	10 — Penicillin Amidohydrolase, domain 1

Domain ID domain_id	1fm2B01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1fm2B02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1400 — Penicillin amidase (Acylase) alpha subunit, N-terminal domain
Homologous superfamily homologous superfamily	10 — Aminohydrolase, alpha-helical knob region

Domain ID domain_id	1fm2B03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	120 — Penicillin G acylase, beta-roll domain
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain, beta-sheet knob region

▶

Unit-cell length a length_a	73.600 Å
Unit-cell length b length_b	73.600 Å
Unit-cell length c length_c	380.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2100
R_work r_work	0.2080
R_free r_free	0.2300

THE 2 ANGSTROM CRYSTAL STRUCTURE OF CEPHALOSPORIN ACYLASE
