1fnw

CRYSTAL STRUCTURE OF STREPTOCOCCAL PYROGENIC EXOTOXIN A

Method: X-RAY DIFFRACTION D_max: 207.3 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EXOTOXIN TYPE A PRECURSOR (ALLELE 1)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–221 Chain B； UniProt 1–221 Chain C； UniProt 1–221 Chain D； UniProt 1–221	Not recorded	CD CADMIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.25-1 M LiCl, 5-20 mM CdCl2, 4-20% PEG8000, 50 mM Na acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.90 Å R-free 0.305
2	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–221 Chain F； UniProt 1–221 Chain G； UniProt 1–221 Chain H； UniProt 1–221	Not recorded	CD CADMIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.25-1 M LiCl, 5-20 mM CdCl2, 4-20% PEG8000, 50 mM Na acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.90 Å R-free 0.305

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FNW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B1Z STREPTOCOCCAL PYROGENIC EXOTOXIN A1 Deposited 1998-11-24	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 33–251（219 aa） Chain B 33–251（219 aa） Chain C 33–251（219 aa） Chain D 33–251（219 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；PEG 8K 17%, AMMONIUM SULPHATE 0.2 M, PH 6.5	Resolution 2.57 Å R-free 0.274
1FNU STRUCTURE OF STREPTOCOCCAL PYROGENIC EXOTOXIN A Deposited 2000-08-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–221（221 aa） Chain B 1–221（221 aa） Chain C 1–221（221 aa） Chain D 1–221（221 aa）	Not recorded	CD CADMIUM ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；0.25 M LiCl, 5-20 mM CdCL2, 4-20% PEG 8000, 50 mM Na acetate, VAPOR DIFFUSION, HANGING DROP	Resolution 1.94 Å R-free 0.281
1FNV STRUCTURE OF STREPTOCOCCAL PYROGENIC EXOTOXIN A Deposited 2000-08-23	Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–221（221 aa） Chain B 1–221（221 aa） Chain C 1–221（221 aa） Chain D 1–221（221 aa）	Not recorded	CD CADMIUM ION × 16	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.25-1 M LiCl, 5-20 mM CdCl2, 4-20% PEG8000, 50 mM Na acetate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.60 Å R-free 0.304

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPEA_STRPY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–221； UniProt 1–221 Author chain B； PDBConstruct 1–221； UniProt 1–221 Author chain C； PDBConstruct 1–221； UniProt 1–221 Author chain D； PDBConstruct 1–221； UniProt 1–221 Author chain E； PDBConstruct 1–221； UniProt 1–221 Author chain F； PDBConstruct 1–221； UniProt 1–221 Author chain G； PDBConstruct 1–221； UniProt 1–221 Author chain H； PDBConstruct 1–221； UniProt 1–221

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

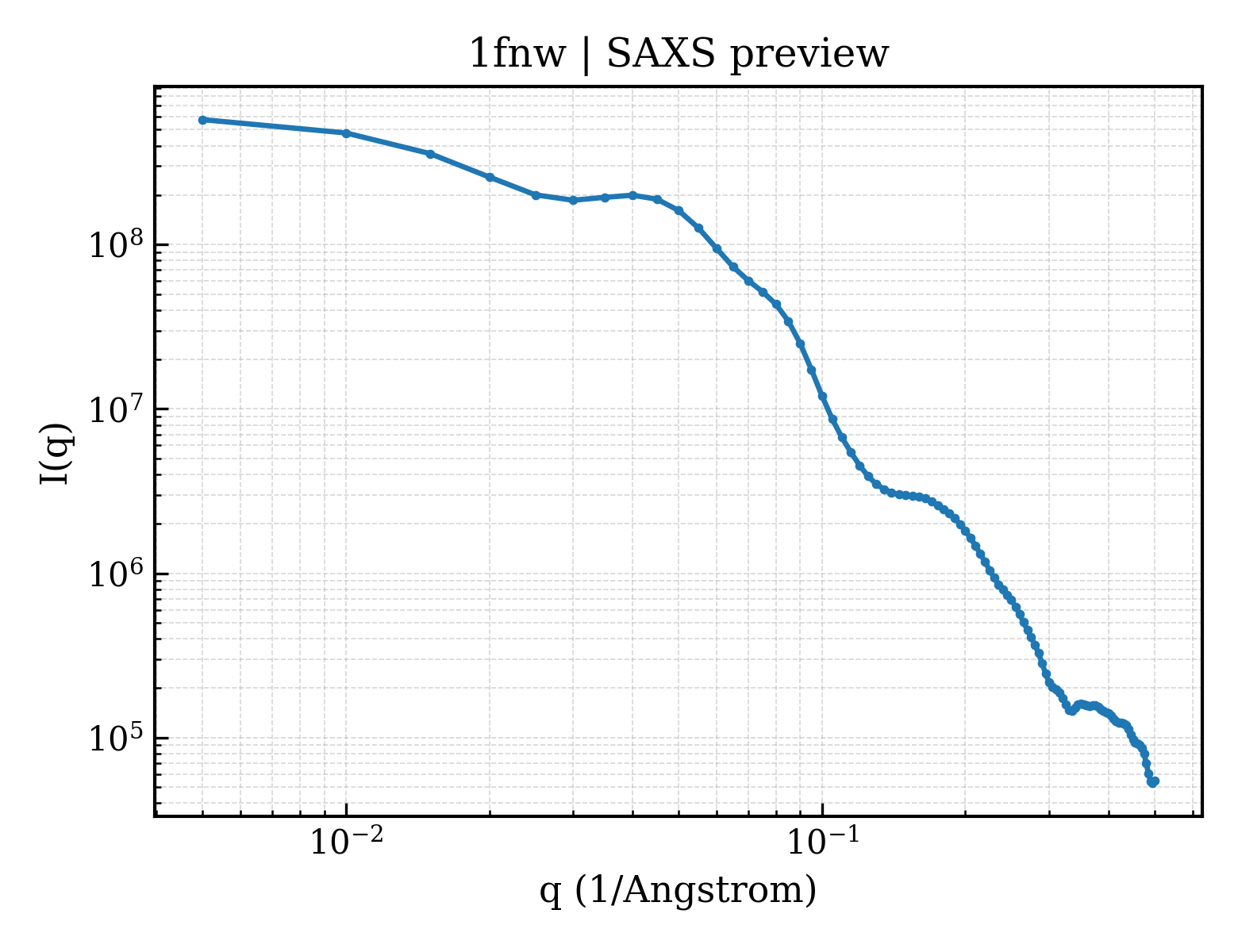

SAXS scattering curve SAXS Profile

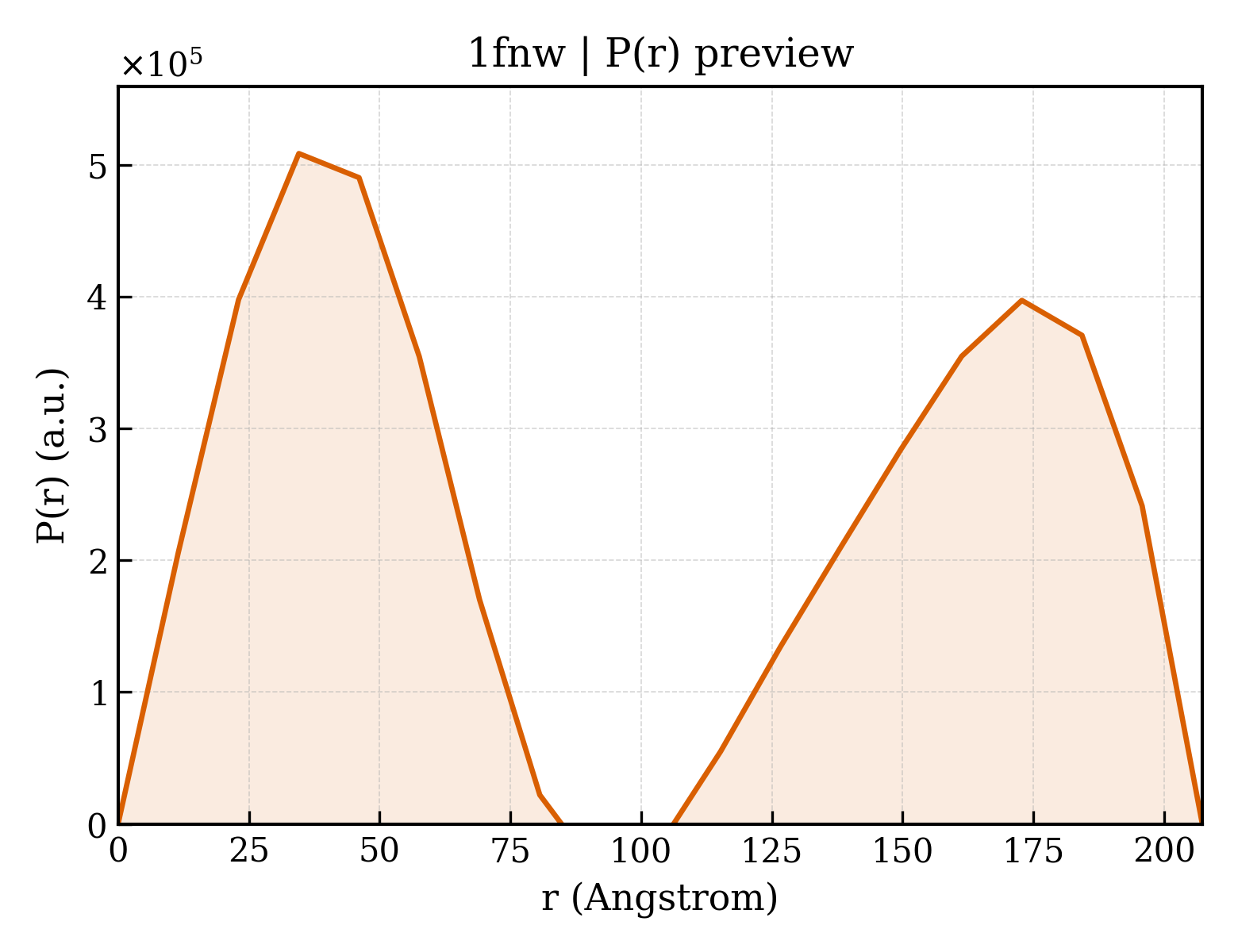

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fnw
Deposition date deposition_date	2000-08-23
Structure title title	CRYSTAL STRUCTURE OF STREPTOCOCCAL PYROGENIC EXOTOXIN A
Keywords keywords	exotoxin A, superantigen, Toxin; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	86.63 Å
Radius of gyration Rg (electron density) rg_electron	87.71 Å
Forward intensity I(0) i0	613279000.00
Molecular weight molecular_weight	210190.0 kDa
Excluded volume excluded_volume	261210 Å³
Envelope volume envelope_volume	491750 Å³
Hydration-shell volume shell_volume	46048 Å³
Envelope diameter envelope_diameter	245.0 Å
Shell Rg shell_rg	98.65 Å
Envelope Rg envelope_rg	78.74 Å
Shape Rg shape_rg	87.74 Å
Total Rg total_rg	87.70 Å
Total atoms total_atoms	14616
Residues n_residues	1768
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	207.3 Å
Rg (real space) rg_real	84.90 Å
Rg uncertainty (real space) rg_real_error	1.06 Å
I(0) (real space) i0_real	5.9970e+08
I(0) uncertainty (real space) i0_real_error	1.2550e+07
Rg (reciprocal space) rg_reciprocal	80.83 Å
I(0) (reciprocal space) i0_reciprocal	602700000.0000
Solution quality estimate total_estimate	0.5462
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.6 Å
Skewness Skewness skewness	0.094
Kurtosis Kurtosis kurtosis	-1.709
Angular range angular_range	— – 0.0900 Å⁻¹
Current regularization parameter α current_alpha	0.1001
Highest regularization parameter α highest_alpha	7298000.0000
Real-space data points n_real_points	19
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.005; Stabil: 0.873; Sysdev: 1.000; Positv: 1.000; Valcen: 0.003; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1fnwa1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwb1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwc1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwd1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwe1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwe2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwf1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwg1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

Domain ID domain_id	d1fnwh1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.2 — Superantigen toxins, N-terminal domain

Domain ID domain_id	d1fnwh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.6 — Superantigen toxins, C-terminal domain
Family Family family	d.15.6.1 — Superantigen toxins, C-terminal domain

CATH v4.4 (16 domains)

Domain ID domain_id	1fnwA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwB01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwC01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwC02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwD02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwE01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwE02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwF01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwF02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwG01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwG02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

Domain ID domain_id	1fnwH01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1fnwH02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	120 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	226.230 Å
Unit-cell length b length_b	226.230 Å
Unit-cell length c length_c	81.610 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2127
R_free r_free	0.3047

Description description	EXOTOXIN TYPE A PRECURSOR (ALLELE 1)
Molecular weight formula_weight	25862.1 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	14616

CRYSTAL STRUCTURE OF STREPTOCOCCAL PYROGENIC EXOTOXIN A

1. Protein Identity and Related Structures Protein Identity & Related Structures

EXOTOXIN TYPE A PRECURSOR (ALLELE 1)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	32

fit	/app/data/saxs_computation/fn/1fnw/1fnw.fit
pddf	/app/data/pr_computation/fn/1fnw/1fnw.pr.out
profile	/app/data/saxs_computation/fn/1fnw/1fnw.dat
