SAXSdb — 1fnx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HU ANTIGEN C

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Monomer Protein × 1 RNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain H； UniProt 35–208	Fragment：THE FIRST AND THE SECOND RNA-BINDING DOMAINS	AU-RICH RNA ELEMENT × 1	SOLUTION NMR NMR measurement conditions：pH 6；298 K；Ionic strength (raw mmCIF value) 20mM；Pressure ambient NMR sample composition：20mM phosphate K buffer; 0.8mM RBD1-RBD2 U-15N,13C; 0.8mM ARE; 1mM DTT; 100 units/ml ribonuclease inhibitor \| 90% H2O/10% D2O NMR sample composition：20mM phosphate K buffer; 0.8mM RBD1-RBD2; 0.8mM ARE U-15N,13C; 1mM DTT; 100 units/ml ribonuclease inhibitor \| 90% H2O/10% D2O NMR sample composition：20mM phosphate K buffer; 0.8mM RBD1-RBD2; 0.8mM ARE U-15N,13C; 1mM DTT; 100 units/ml ribonuclease inhibitor \| 100% D2O NMR sample composition：20mM phosphate K buffer; 0.8mM RBD1-RBD2; 0.8mM ARE U-15N,13C-Adenosine; 1mM DTT; 100 units/ml ribonuclease inhibitor \| 90% H2O/10% D2O NMR sample composition：20mM phosphate K buffer; 0.8mM RBD1-RBD2; 0.8mM ARE U-15N,13C-Adenosine; 1mM DTT; 100 units/ml ribonuclease inhibitor \| 100% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FNX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D8Z SOLUTION STRUCTURE OF THE FIRST RNA-BINDING DOMAIN (RBD1) OF HU ANTIGEN C (HUC) Deposited 1999-10-26	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–123（88 aa） Fragment：FIRST RNA-BINDING DOMAIN (RBD1)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.6；298 K；Ionic strength (raw mmCIF value) 20 mM；Pressure AMBIENT NMR sample composition 2MM PROTEIN; 20 MM POTASSIUM OXALATE BUFFER; 90% H2O; 10% D2O NMR sample composition 2MM PROTEIN U-15N; 20 MM POTASSIUM OXALATE BUFFER; 90% H2O; 10% D2O	Resolution not provided
1D9A SOLUTION STRUCTURE OF THE SECOND RNA-BINDING DOMAIN (RBD2) OF HU ANTIGEN C (HUC) Deposited 1999-10-26	Different construct Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 124–208（85 aa） Fragment：SECOND RNA-BINDING DOMAIN (RBD2)	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.6；298 K；Ionic strength (raw mmCIF value) 20 mM；Pressure AMBIENT NMR sample composition 2MM PROTEIN; 20 MM POTASSIUM OXALATE BUFFER; 90% H2O; 10% D2O NMR sample composition 2MM PROTEIN U-15N; 20 MM POTASSIUM OXALATE BUFFER; 90% H2O; 10% D2O	Resolution not provided

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELAV3_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–174； UniProt 35–208

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fnx
Deposition date deposition_date	2000-08-24
Structure title title	SOLUTION STRUCTURE OF THE HUC RBD1-RBD2 COMPLEXED WITH THE AU-RICH ELEMENT
Keywords keywords	RNA-binding domain, protein-RNA complex, immune system-RNA COMPLEX; immune system/RNA
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.12 Å
Radius of gyration Rg (electron density) rg_electron	26.27 Å
Forward intensity I(0) i0	3687580000.00
Molecular weight molecular_weight	468250.0 kDa
Excluded volume excluded_volume	566800 Å³
Envelope volume envelope_volume	151340 Å³
Hydration-shell volume shell_volume	35191 Å³
Envelope diameter envelope_diameter	143.2 Å
Shell Rg shell_rg	36.12 Å
Envelope Rg envelope_rg	54.98 Å
Shape Rg shape_rg	26.26 Å
Total Rg total_rg	26.42 Å
Total atoms total_atoms	63462
Residues n_residues	3864
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

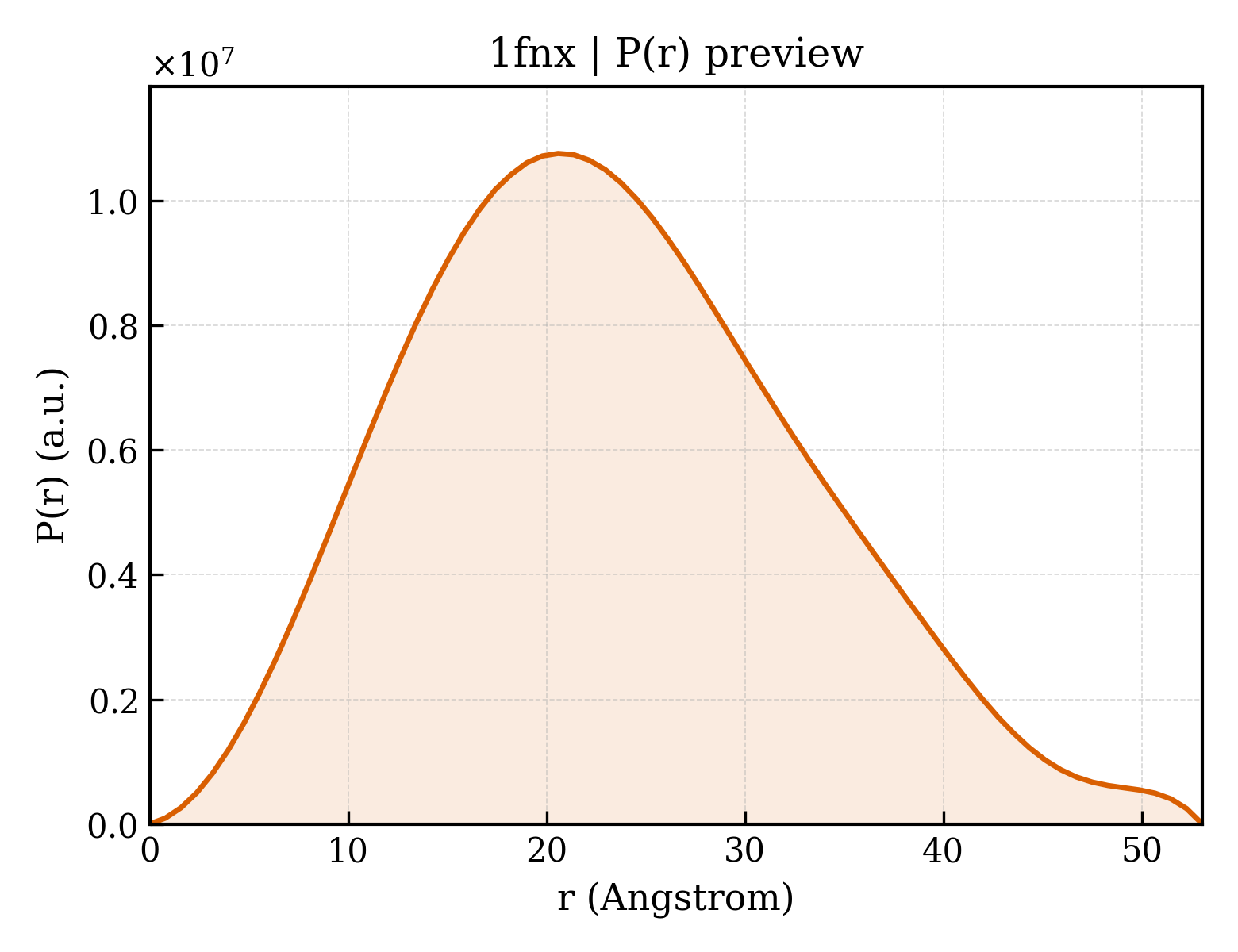

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.1 Å
Rg (real space) rg_real	17.75 Å
Rg uncertainty (real space) rg_real_error	0.09 Å
I(0) (real space) i0_real	3.3740e+09
I(0) uncertainty (real space) i0_real_error	3.3310e+07
Rg (reciprocal space) rg_reciprocal	25.25 Å
I(0) (reciprocal space) i0_reciprocal	3685000000.0000
Solution quality estimate total_estimate	0.6840
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	20.6 Å
Skewness Skewness skewness	0.334
Kurtosis Kurtosis kurtosis	-0.315
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	2.9150
Highest regularization parameter α highest_alpha	11480000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.036; Oscil: 0.951; Stabil: 0.990; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.073

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	AU-RICH RNA ELEMENT
Molecular weight formula_weight	3062.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R
Atom count atom_count	63462

UAUUUAUUUU

Entity 2 Entity 2 polymer

Description description	HU ANTIGEN C
Molecular weight formula_weight	19180.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MDSKTNLIVNYLPQNMTQDEFKSLFGSIGDIESCKLVRDKITGQSLGYGFVNYSDPNDADKAINTLNGLKLQTKTIKVSYARPSSASIRDANLYVSGLPKTMSQKEMEQLFSQYGRIITSRILLDQATGVSRGVGFIRFDKRIEAEEAIKGLNGQKPLGAAEPITVKFANNPSQ

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1fnxh1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d1fnxh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

Domain ID domain_id	d1fnxh3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1fnxH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

Domain ID domain_id	1fnxH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/fn/1fnx/1fnx.fit
pddf	/app/data/pr_computation/fn/1fnx/1fnx.pr.out
profile	/app/data/saxs_computation/fn/1fnx/1fnx.dat
