OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 4 | CALCIUM ION × 4 water × 4 | Consistent with protein count |
| UniProt name | LCB1_ROBPS |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–237； UniProt 32–268 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1fny |
| Deposition date deposition_date | 2000-08-24 |
| Structure title title | LEGUME LECTIN OF THE BARK OF ROBINIA PSEUDOACACIA. |
| Keywords keywords | legume lectin, jelly roll, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

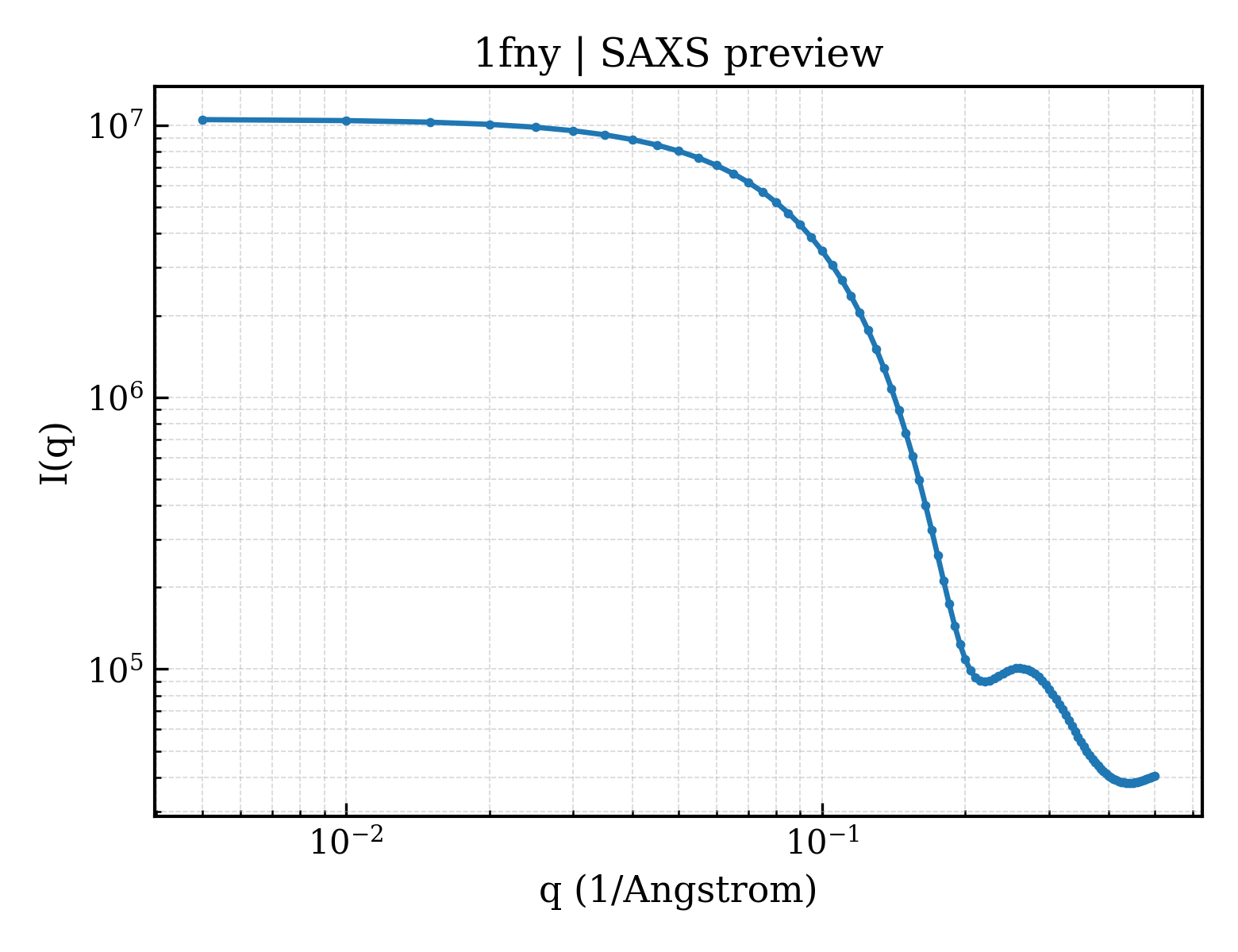

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 30.39 Å |
| Rg (electron density) | 29.15 Å |
| Total Rg | 30.07 Å |
| Atom count | 7172 |
| Residues | 936 |
| Excluded volume | 128320 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1fnya_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.29 — Concanavalin A-like lectins/glucanases |
| Superfamily Superfamily superfamily | b.29.1 — Concanavalin A-like lectins/glucanases |
| Family Family family | b.29.1.1 — Legume lectins |
| Domain ID domain_id | 1fnyA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 120 — Jelly Rolls |
| Homologous superfamily homologous superfamily | 200 — |
