1foh

PHENOL HYDROXYLASE FROM TRICHOSPORON CUTANEUM

Method: X-RAY DIFFRACTION D_max: 150.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1foh
沉积日期 deposition_date	1998-03-26
结构标题 title	PHENOL HYDROXYLASE FROM TRICHOSPORON CUTANEUM
关键词 keywords	FLAVIN, PHENOL HYDROXYLASE, MONOOXYGENASE, OXIDOREDUCTASE; FLAVIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.66 Å
回转半径 Rg (电子) rg_electron	44.24 Å
零角强度 I(0) i0	1362610000.00
分子量 molecular_weight	298930.0 kDa
排除体积 excluded_volume	370720 Å³
包络体积 envelope_volume	474590 Å³
水化壳体积 shell_volume	85793 Å³
包络直径 envelope_diameter	154.9 Å
壳层 Rg shell_rg	52.04 Å
包络 Rg envelope_rg	43.56 Å
形状 Rg shape_rg	44.22 Å
总 Rg total_rg	44.61 Å
总原子数 total_atoms	21046
残基数 n_residues	2610
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

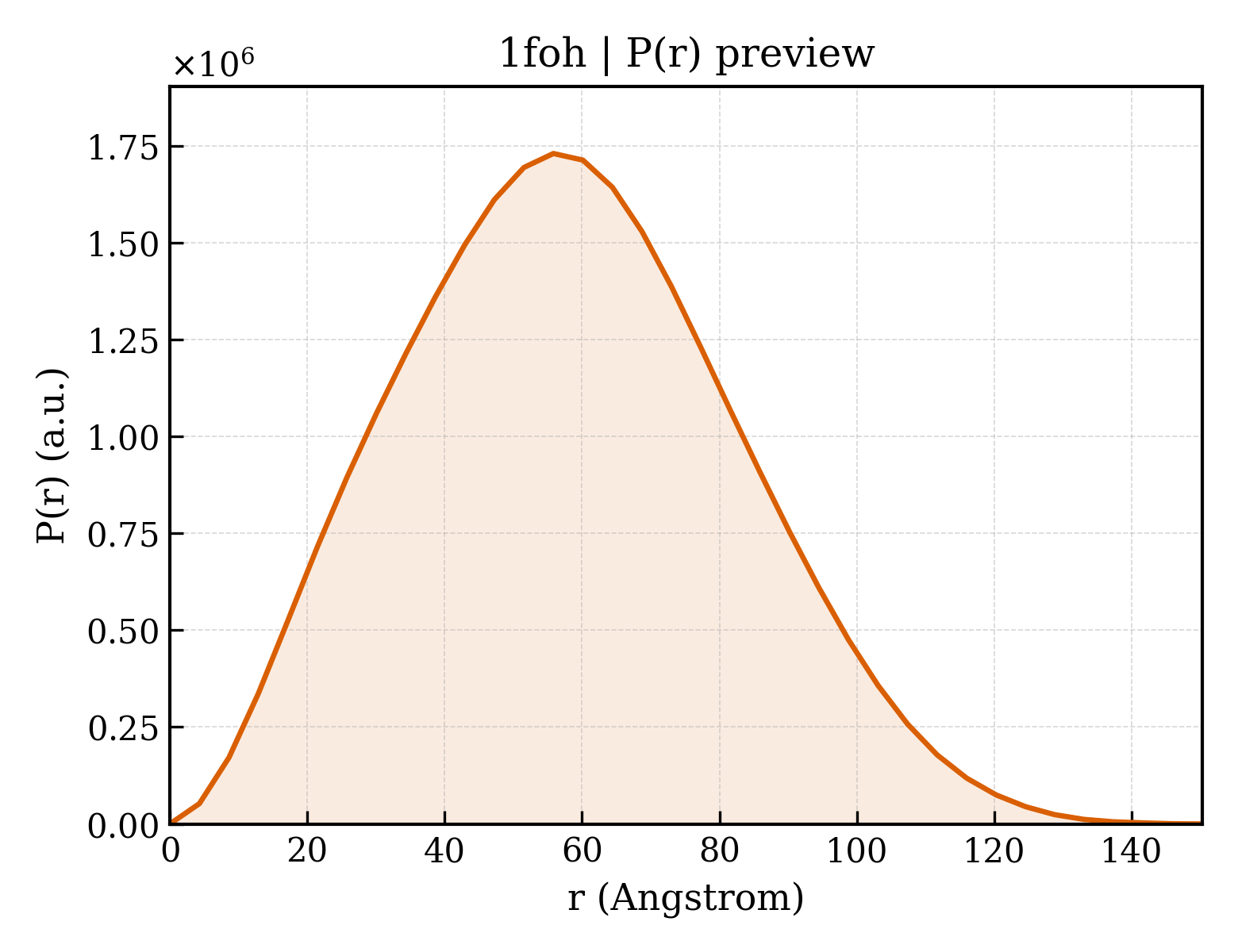

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	150.3 Å
Rg (实空间) rg_real	44.49 Å
Rg 误差 (实空间) rg_real_error	1.26 Å
I(0) (实空间) i0_real	1.3630e+09
I(0) 误差 (实空间) i0_real_error	2.8640e+07
Rg (倒空间) rg_reciprocal	44.66 Å
I(0) (倒空间) i0_reciprocal	1363000000.0000
解质量估计 total_estimate	0.8799
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	55.8 Å
偏度 Skewness skewness	0.216
峰度 Kurtosis kurtosis	-0.380
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	131000000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.965

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	PHENOL HYDROXYLASE
分子量 formula_weight	75197.6 kDa
EC 编号 ec_number	1.14.13.7
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	22235

TKYSESYCDVLIVGAGPAGLMAARVLSEYVRQKPDLKVRIIDKRSTKVYNGQADGLQCRTLESLKNLGLADKILSEANDMSTIALYNPDENGHIRRTDRIPDTLPGISRYHQVVLHQGRIERHILDSIAEISDTRIKVERPLIPEKMEIDSSKAEDPEAYPVTMTLRYMSDHESTPLQFGHKTENSLFHSNLQTQEEEDANYRLPEGKEAGEIETVHCKYVIGCDGGHSWVRRTLGFEMIGEQTDYIWGVLDAVPASNFPDIRSRCAIHSAESGSIMIIPRENNLVRFYVQLQARAEKGGRVDRTKFTPEVVIANAKKIFHPYTFDVQQLDWFTAYHIGQRVTEKFSKDERVFIAGDACHTHSPKAGQGMNTSMMDTYNLGWKLGLVLTGRAKRDILKTYEEERHAFAQALIDFDHQFSRLFSGRPAKDVADEMGVSMDVFKEAFVKGNEFASGTAINYDENLVTDKKSSKQELAKNCVVGTRFKSQPVVRHSEGLWMHFGDRLVTDGRFRIIVFAGKATDATQMSRIKKFSAYLDSENSVISLYTPKVSDRNSRIDVITIHSCHRDDIEMHDFPAPALHPKWQYDFIYADCDSWHHPHPKSYQAWGVDETKGAVVVVRPDGYTSLVTDLEGTAEIDRYFSGILVEPKEKSGAQTEADWTKSTA

来源 Source

来源生物 organism	Trichosporon cutaneum
NCBI 分类编号 ncbi_taxonomy_id	5554
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	PHENOL
分子量 formula_weight	94.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1189

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1foha3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.10 — Glutathione peroxidase-like

结构域编号 domain_id	d1foha4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.2 — PHBH-like

结构域编号 domain_id	d1foha5
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1fohb3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.10 — Glutathione peroxidase-like

结构域编号 domain_id	d1fohb4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.2 — PHBH-like

结构域编号 domain_id	d1fohb5
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1fohc3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.10 — Glutathione peroxidase-like

结构域编号 domain_id	d1fohc4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.2 — PHBH-like

结构域编号 domain_id	d1fohc5
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

结构域编号 domain_id	d1fohd3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.47 — Thioredoxin fold
超家族 Superfamily superfamily	c.47.1 — Thioredoxin-like
家族 Family family	c.47.1.10 — Glutathione peroxidase-like

结构域编号 domain_id	d1fohd4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.16 — FAD-linked reductases, C-terminal domain
超家族 Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
家族 Family family	d.16.1.2 — PHBH-like

结构域编号 domain_id	d1fohd5
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.3 — FAD/NAD(P)-binding domain
超家族 Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
家族 Family family	c.3.1.2 — FAD-linked reductases, N-terminal domain

CATH v4.4 (12 domains)

结构域编号 domain_id	1fohA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1fohA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1fohA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	20 — Phenol hydroxylase, C-terminal dimerisation domain

结构域编号 domain_id	1fohB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1fohB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1fohB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	20 — Phenol hydroxylase, C-terminal dimerisation domain

结构域编号 domain_id	1fohC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1fohC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1fohC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	20 — Phenol hydroxylase, C-terminal dimerisation domain

结构域编号 domain_id	1fohD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	50 — 3-Layer(bba) Sandwich
拓扑 Topology topology	50 — FAD/NAD(P)-binding domain
同源超家族 H-superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

结构域编号 domain_id	1fohD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	9 — D-Amino Acid Oxidase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — D-Amino Acid Oxidase, subunit A, domain 2

结构域编号 domain_id	1fohD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	30 — Glutaredoxin
同源超家族 H-superfamily homologous superfamily	20 — Phenol hydroxylase, C-terminal dimerisation domain

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	100.030 Å
晶胞边长 b length_b	150.680 Å
晶胞边长 c length_c	114.920 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	114.68 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	12.000 Å
R 因子 r_factor	—
R_work r_work	0.2170
R_free r_free	0.2780
