1fpo

HSC20 (HSCB), A J-TYPE CO-CHAPERONE FROM E. COLI

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHAPERONE PROTEIN HSCB

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
5	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
6	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
7	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSCB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–171； UniProt 1–171 Author chain B； PDBConstruct 1–171； UniProt 1–171 Author chain C； PDBConstruct 1–171； UniProt 1–171

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fpo
Deposition date deposition_date	2000-08-31
Structure title title	HSC20 (HSCB), A J-TYPE CO-CHAPERONE FROM E. COLI
Keywords keywords	molecular chaperone, CHAPERONE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fpo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

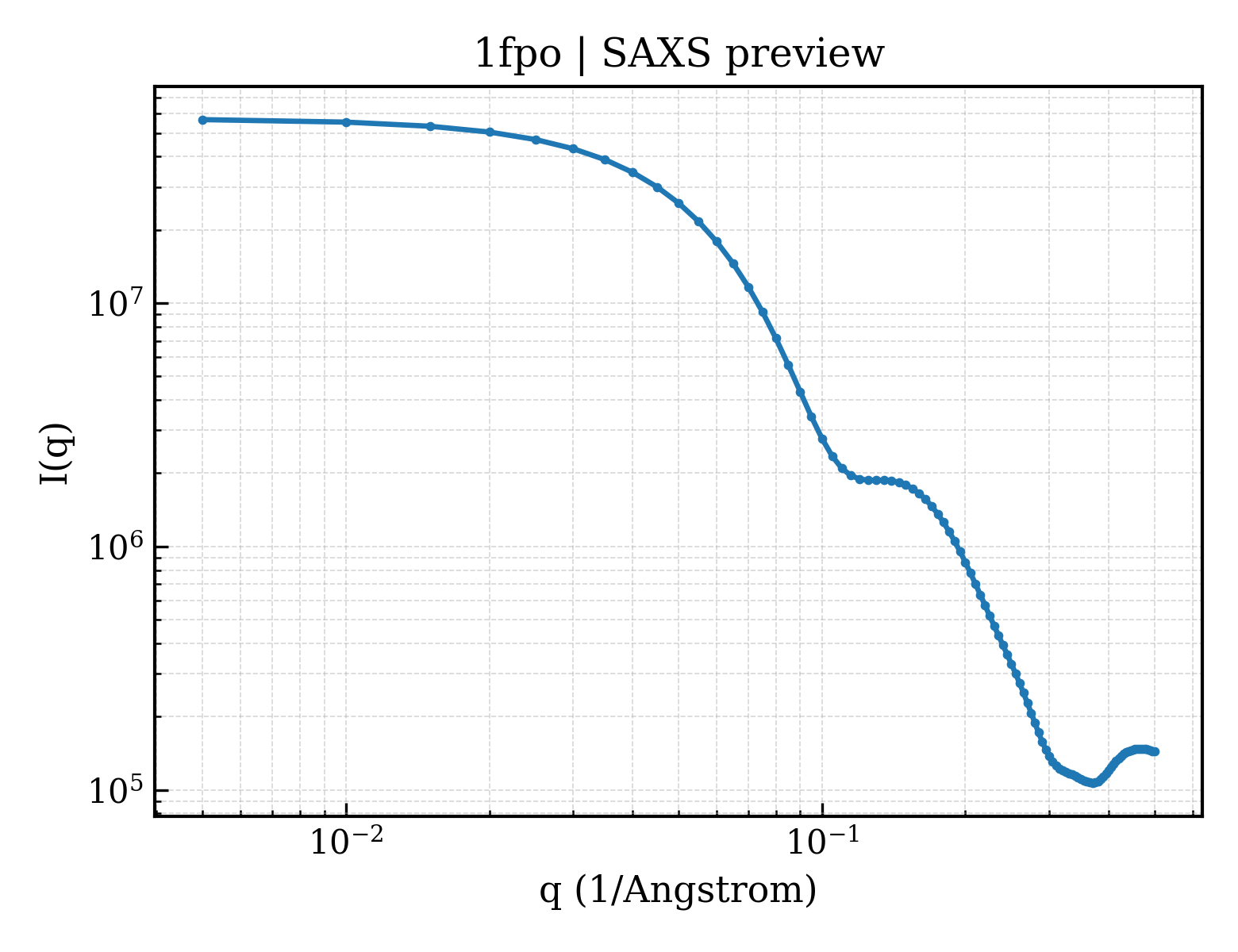

1fpo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

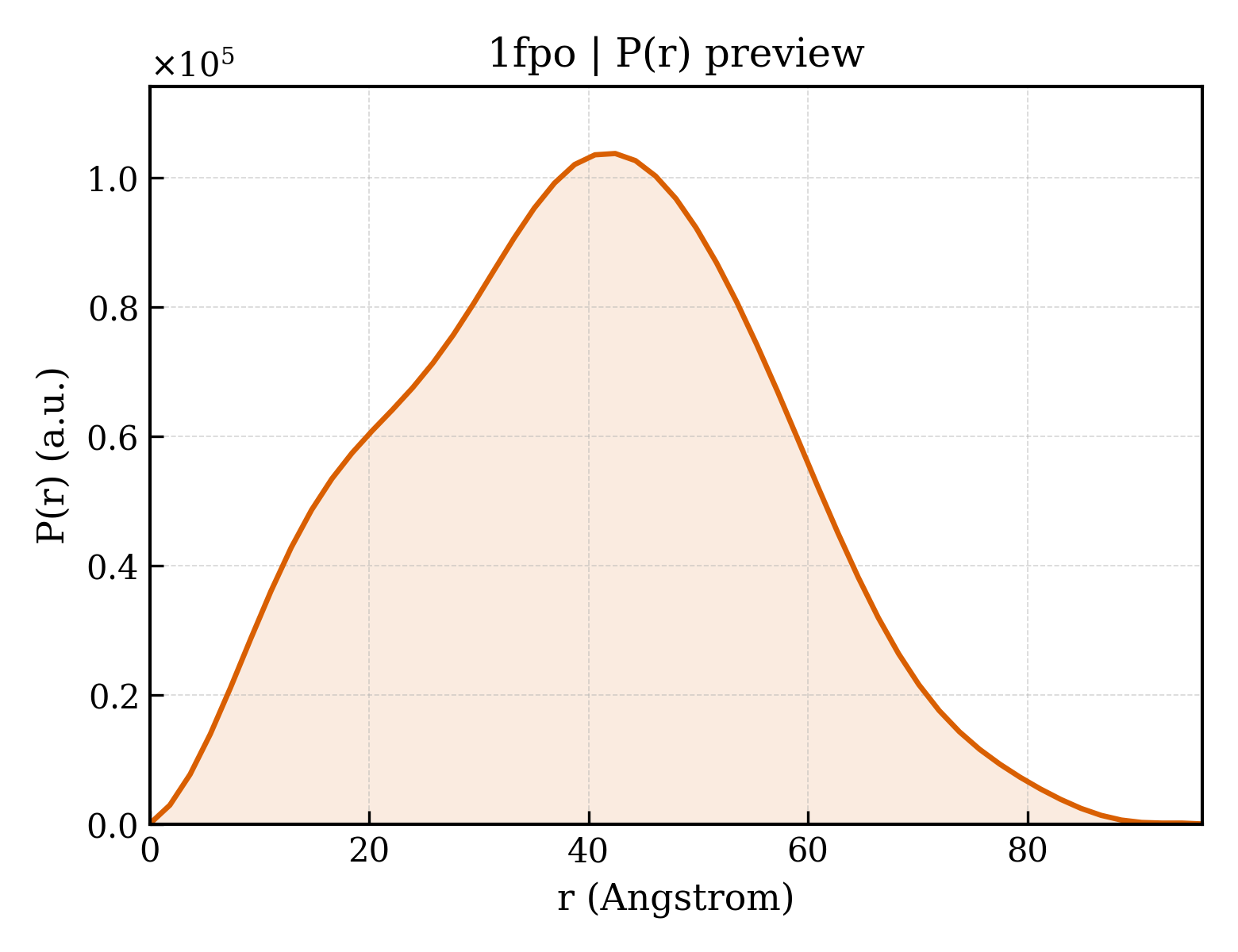

1fpo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.40 Å
Rg (electron density)	20.57 Å
Total Rg	21.32 Å
Atom count	1412
Residues	171
Excluded volume	24885 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fpo__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fpo__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1fpo__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1fpo__assembly_4__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1fpo__assembly_5__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
6	1	`1fpo__assembly_6__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
7	1	`1fpo__assembly_7__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1fpoa1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.3 — Chaperone J-domain
Family Family family	a.2.3.1 — Chaperone J-domain

Domain ID domain_id	d1fpoa2
Class class	a — All alpha proteins
Fold Fold fold	a.23 — Open three-helical up-and-down bundle
Superfamily Superfamily superfamily	a.23.1 — HSC20 (HSCB), C-terminal oligomerisation domain
Family Family family	a.23.1.1 — HSC20 (HSCB), C-terminal oligomerisation domain

Domain ID domain_id	d1fpob1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.3 — Chaperone J-domain
Family Family family	a.2.3.1 — Chaperone J-domain

Domain ID domain_id	d1fpob2
Class class	a — All alpha proteins
Fold Fold fold	a.23 — Open three-helical up-and-down bundle
Superfamily Superfamily superfamily	a.23.1 — HSC20 (HSCB), C-terminal oligomerisation domain
Family Family family	a.23.1.1 — HSC20 (HSCB), C-terminal oligomerisation domain

Domain ID domain_id	d1fpoc1
Class class	a — All alpha proteins
Fold Fold fold	a.2 — Long alpha-hairpin
Superfamily Superfamily superfamily	a.2.3 — Chaperone J-domain
Family Family family	a.2.3.1 — Chaperone J-domain

Domain ID domain_id	d1fpoc2
Class class	a — All alpha proteins
Fold Fold fold	a.23 — Open three-helical up-and-down bundle
Superfamily Superfamily superfamily	a.23.1 — HSC20 (HSCB), C-terminal oligomerisation domain
Family Family family	a.23.1.1 — HSC20 (HSCB), C-terminal oligomerisation domain

CATH v4.4 (6 domains)

Domain ID domain_id	1fpoA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	110 — DnaJ domain

Domain ID domain_id	1fpoA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	20 — HscB, C-terminal domain

Domain ID domain_id	1fpoB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	110 — DnaJ domain

Domain ID domain_id	1fpoB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	20 — HscB, C-terminal domain

Domain ID domain_id	1fpoC01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	110 — DnaJ domain

Domain ID domain_id	1fpoC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1280 — Monooxygenase
Homologous superfamily homologous superfamily	20 — HscB, C-terminal domain

▶

Unit-cell length a length_a	123.010 Å
Unit-cell length b length_b	69.990 Å
Unit-cell length c length_c	68.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.08 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	48.730 Å
R factor r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2460

Description description	CHAPERONE PROTEIN HSCB
Molecular weight formula_weight	20167.7 kDa
Mutation mutation	V148C
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4531

HSC20 (HSCB), A J-TYPE CO-CHAPERONE FROM E. COLI

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHAPERONE PROTEIN HSCB

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fpo__assembly_1__model_1

1fpo__assembly_1__model_1 | I(q)

1fpo__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	449
