SAXSdb — 1ft5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTOCHROME C554

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 25–235	Not recorded	PO4 PHOSPHATE ION × 3 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 10.1；295 K；62.5% w/vol potassium phosphate pH 10.1, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.60 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1FT5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BVB HEME-PACKING MOTIFS REVEALED BY THE CRYSTAL STRUCTURE OF CYTOCHROME C554 FROM NITROSOMONAS EUROPAEA Deposited 1998-09-16	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–235（211 aa）	Not recorded	PO4 PHOSPHATE ION × 3 HEM PROTOPORPHYRIN IX CONTAINING FE × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 10.1；pH 10.1	Resolution 2.60 Å R-free 0.254
1FT6 REDUCED STATE OF CYTOCHROME C554 FROM NITROSOMONAS EUROPAEA Deposited 2000-09-11	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–235（211 aa）	Not recorded	SO3 SULFITE ION × 1 PO4 PHOSPHATE ION × 1 HEC HEME C × 4 DTN DITHIONITE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 10.1；295 K；62.5% w/vol potassium phosphate pH 10.1, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 1.80 Å R-free 0.236

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C554_NITEU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 25–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ft5
Deposition date deposition_date	2000-09-11
Structure title title	CRYSTAL STRUCTURE OF THE OXIDIZED STATE OF CYTOCHROME C554 FROM NITROSOMONAS EUROPAEA
Keywords keywords	heme-stacking, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.45 Å
Radius of gyration Rg (electron density) rg_electron	17.73 Å
Forward intensity I(0) i0	13099500.00
Molecular weight molecular_weight	26368.0 kDa
Excluded volume excluded_volume	32591 Å³
Envelope volume envelope_volume	37110 Å³
Hydration-shell volume shell_volume	17560 Å³
Envelope diameter envelope_diameter	66.0 Å
Shell Rg shell_rg	23.85 Å
Envelope Rg envelope_rg	18.18 Å
Shape Rg shape_rg	17.69 Å
Total Rg total_rg	18.73 Å
Total atoms total_atoms	1846
Residues n_residues	211
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

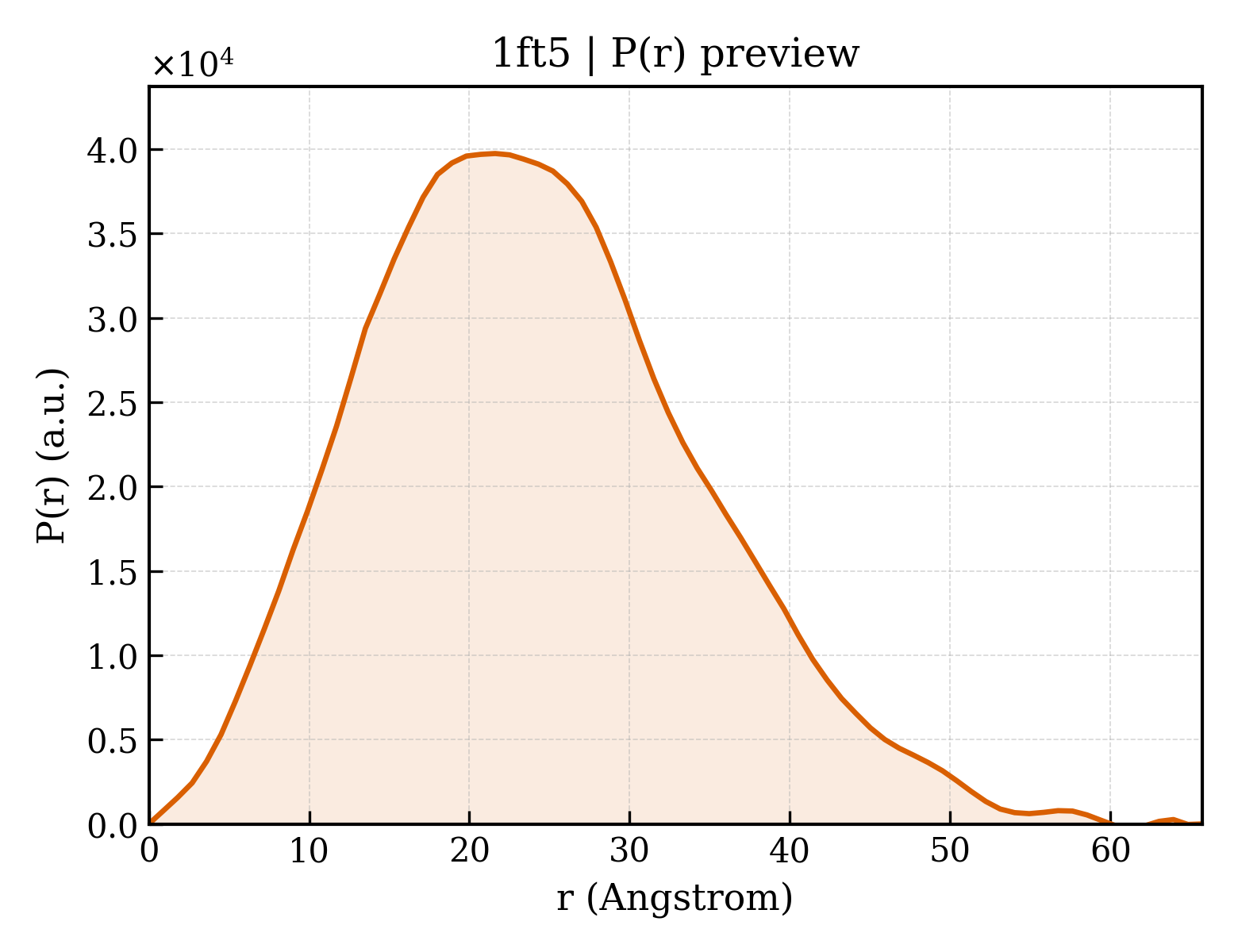

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	65.7 Å
Rg (real space) rg_real	18.43 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	1.3100e+07
I(0) uncertainty (real space) i0_real_error	1.6150e+05
Rg (reciprocal space) rg_reciprocal	18.43 Å
I(0) (reciprocal space) i0_reciprocal	13100000.0000
Solution quality estimate total_estimate	0.7579
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.6 Å
Skewness Skewness skewness	0.397
Kurtosis Kurtosis kurtosis	-0.113
Angular range angular_range	— – 0.4300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6096000.0000
Real-space data points n_real_points	74
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.642; Stabil: 0.986; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CYTOCHROME C554
Molecular weight formula_weight	23656.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1988

ADAPFEGRKKCSSCHKAQAQSWKDTAHAKAMESLKPNVKKEAKQKAKLDPAKDYTQDKDCVGCHVDGFGQKGGYTIESPKPMLTGVGCESCHGPGRNFRGDHRKSGQAFEKSGKKTPRKDLAKKGQDFHFEERCSACHLNYEGSPWKGAKAPYTPFTPEVDAKYTFKFDEMVKEVKAMHEHYKLEGVFEGEPKFKFHDEFQASAKPAKKGK

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	142

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ft5a_
Class class	a — All alpha proteins
Fold Fold fold	a.138 — Multiheme cytochromes
Superfamily Superfamily superfamily	a.138.1 — Multiheme cytochromes
Family Family family	a.138.1.3 — Di-heme elbow motif

CATH v4.4 (1 domains)

Domain ID domain_id	1ft5A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1130 — Flavocytochrome C3; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Flavocytochrome C3; Chain A

▶

8. Citations (2)

▶

Unit-cell length a length_a	147.892 Å
Unit-cell length b length_b	147.892 Å
Unit-cell length c length_c	33.913 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.1880
R_free r_free	0.2150
