SAXSdb — 1fu0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOCARRIER PROTEIN HPR

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PTHP_ENTFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–87； UniProt 1–87 Author chain B； PDBConstruct 1–87； UniProt 1–87

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fu0
Deposition date deposition_date	2000-09-13
Structure title title	CRYSTAL STRUCTURE ANALYSIS OF THE PHOSPHO-SERINE 46 HPR FROM ENTEROCOCCUS FAECALIS
Keywords keywords	Phospho-Serine HPr, PTS System, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fu0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

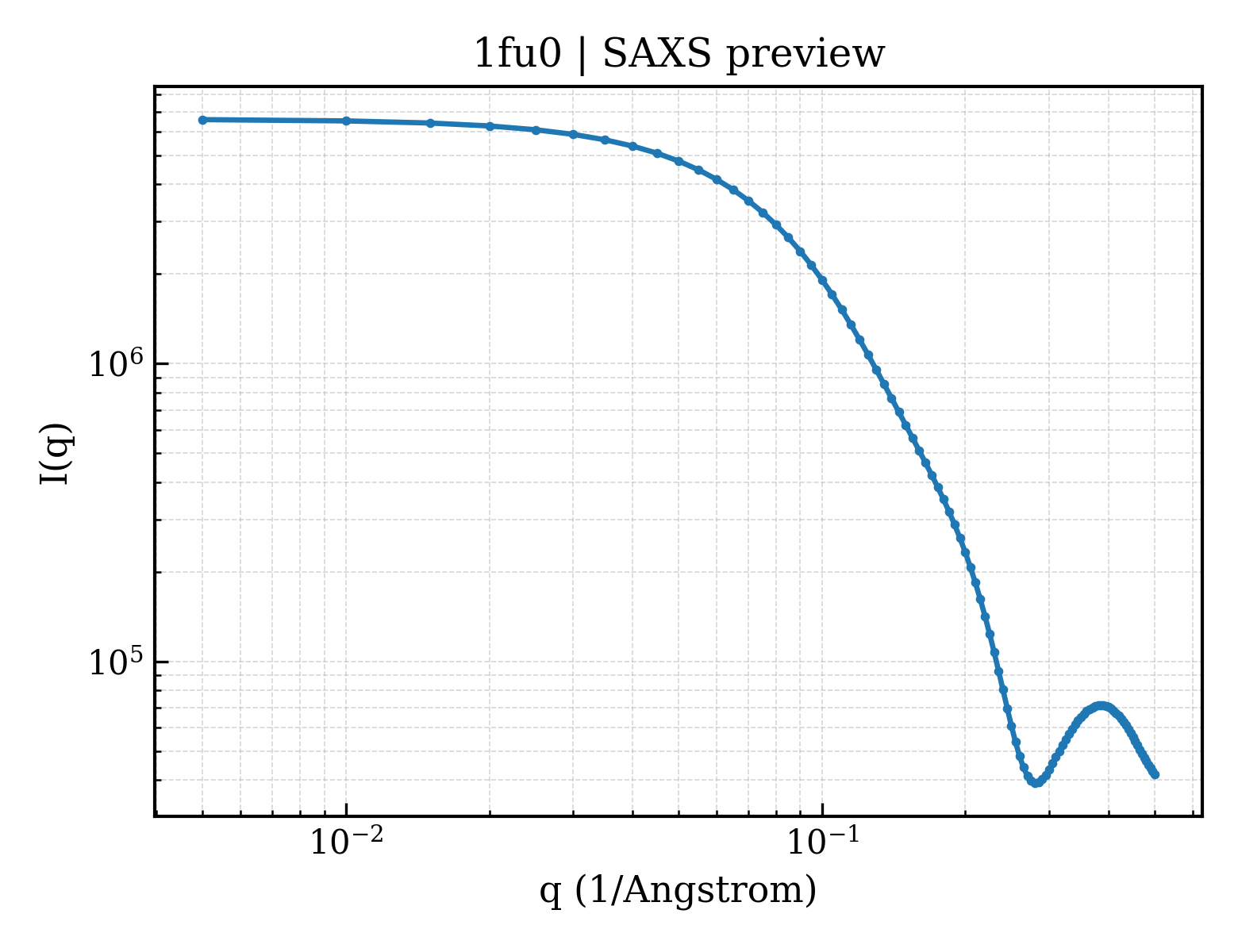

1fu0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1fu0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	13.26 Å
Rg (electron density)	11.64 Å
Total Rg	13.00 Å
Atom count	646
Residues	86
Excluded volume	11544 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fu0__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fu0__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fu0a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.94 — HPr-like
Superfamily Superfamily superfamily	d.94.1 — HPr-like
Family Family family	d.94.1.1 — HPr-like

Domain ID domain_id	d1fu0b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.94 — HPr-like
Superfamily Superfamily superfamily	d.94.1 — HPr-like
Family Family family	d.94.1.1 — HPr-like

CATH v4.4 (2 domains)

Domain ID domain_id	1fu0A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1340 — Histidine-containing Protein; Chain: A;
Homologous superfamily homologous superfamily	10 — HPr-like

Domain ID domain_id	1fu0B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1340 — Histidine-containing Protein; Chain: A;
Homologous superfamily homologous superfamily	10 — HPr-like

▶

Unit-cell length a length_a	25.520 Å
Unit-cell length b length_b	43.200 Å
Unit-cell length c length_c	60.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.67 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1780
R_work r_work	0.1780
R_free r_free	0.2390

Description description	PHOSPHOCARRIER PROTEIN HPR
Molecular weight formula_weight	9281.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1383

CRYSTAL STRUCTURE ANALYSIS OF THE PHOSPHO-SERINE 46 HPR FROM ENTEROCOCCUS FAECALIS

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOCARRIER PROTEIN HPR

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fu0__assembly_1__model_1

1fu0__assembly_1__model_1 | I(q)

1fu0__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	91
