1fug

S-ADENOSYLMETHIONINE SYNTHETASE

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

S-ADENOSYLMETHIONINE SYNTHETASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	METK_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–383； UniProt 2–384 Author chain B； PDBConstruct 1–383； UniProt 2–384

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fug
Deposition date deposition_date	1996-02-25
Structure title title	S-ADENOSYLMETHIONINE SYNTHETASE
Keywords keywords	TRANSFERASE, ONE-CARBON METABOLISM, ATP-BINDING, MULTIGENE FAMILY; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fug__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

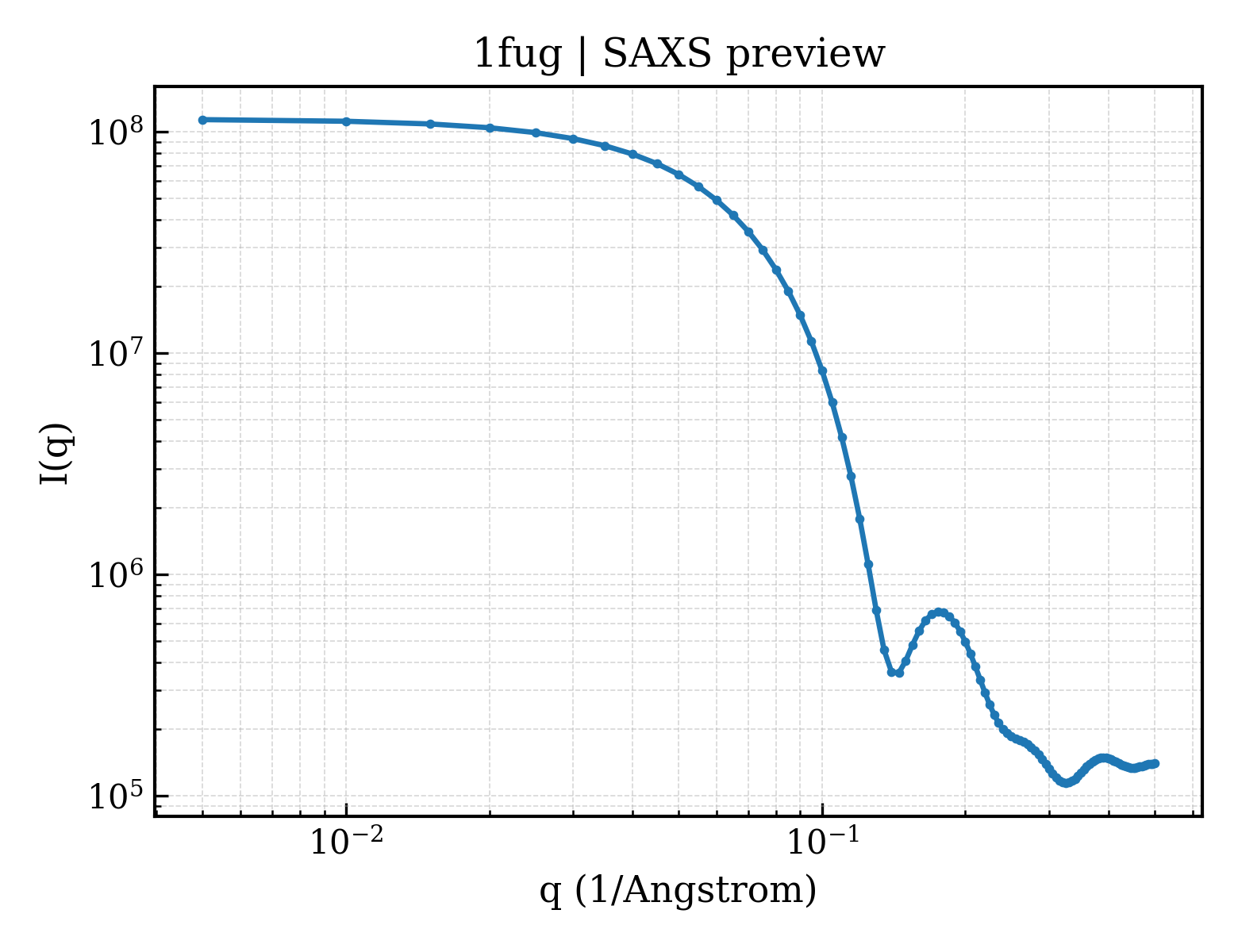

1fug__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

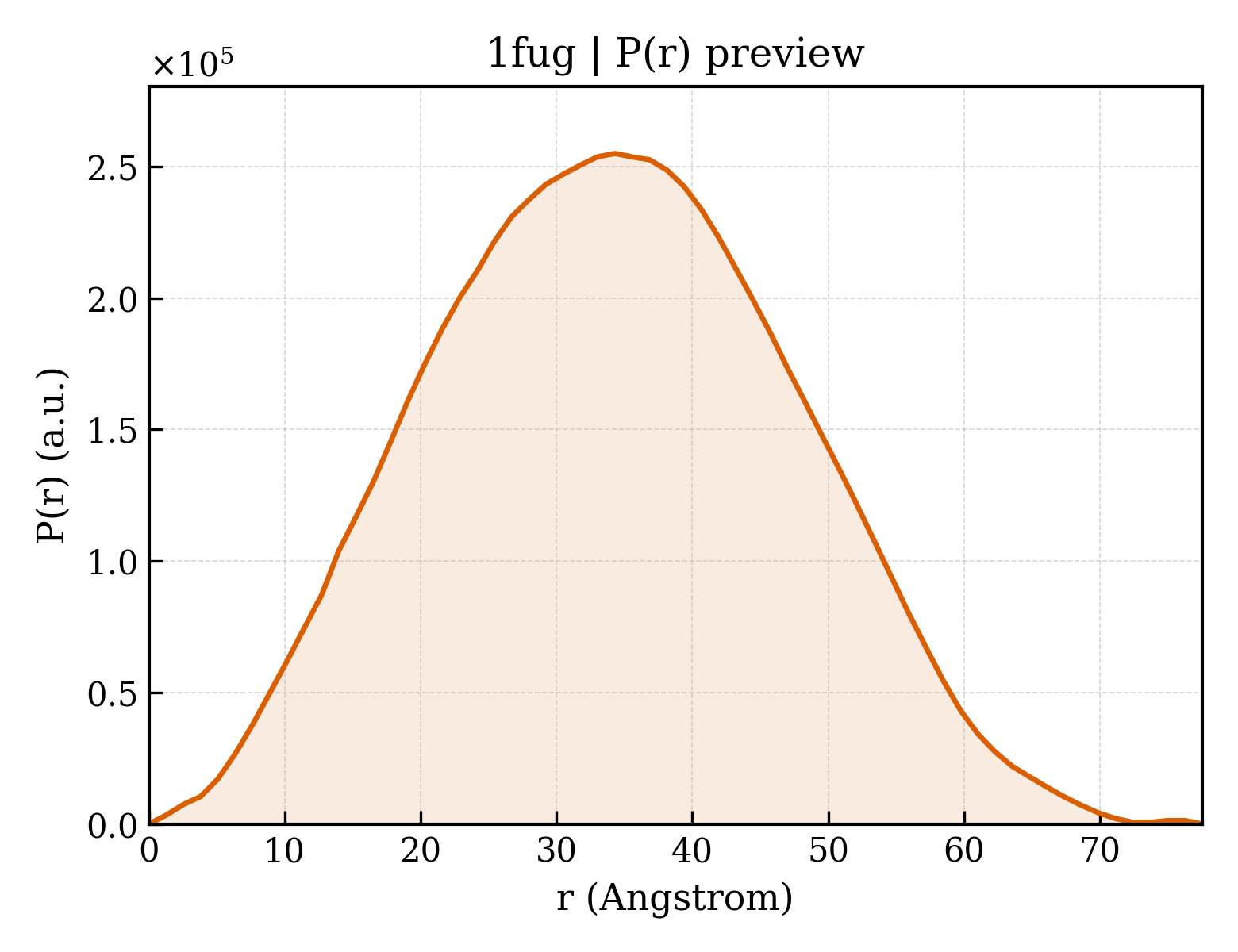

1fug__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.32 Å
Rg (electron density)	36.25 Å
Total Rg	36.65 Å
Atom count	14340
Residues	1532
Excluded volume	208990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fug__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1fuga1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1fuga2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1fuga3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1fugb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1fugb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

Domain ID domain_id	d1fugb3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.130 — S-adenosylmethionine synthetase
Superfamily Superfamily superfamily	d.130.1 — S-adenosylmethionine synthetase
Family Family family	d.130.1.1 — S-adenosylmethionine synthetase

CATH v4.4 (6 domains)

Domain ID domain_id	1fugA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fugA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fugA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fugB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fugB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1fugB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	300 — GMP Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	121.000 Å
Unit-cell length b length_b	121.000 Å
Unit-cell length c length_c	171.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2900

Description description	S-ADENOSYLMETHIONINE SYNTHETASE
Molecular weight formula_weight	41867.3 kDa
EC 编号 ec_number	2.5.1.6
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7170

S-ADENOSYLMETHIONINE SYNTHETASE

1. Protein Identity and Related Structures Protein Identity & Related Structures

S-ADENOSYLMETHIONINE SYNTHETASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fug__assembly_1__model_1

1fug__assembly_1__model_1 | I(q)

1fug__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
