Loligo pealei
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | O62547_LOLPE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–591； UniProt 1–591 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1fvh |
| Deposition date deposition_date | 2000-09-19 |
| Structure title title | CRYSTAL STRUCTURE ANALYSIS OF NEURONAL SEC1 FROM THE SQUID L. PEALEI |
| Keywords keywords | PARALLEL BETA-SHEETS, LEFT-HAND TURN CONNECTION, HELICAL BUNDLE, ENDOCYTOSIS-EXOCYTOSIS COMPLEX; ENDOCYTOSIS/EXOCYTOSIS |
| Experimental Method method | X-RAY DIFFRACTION |

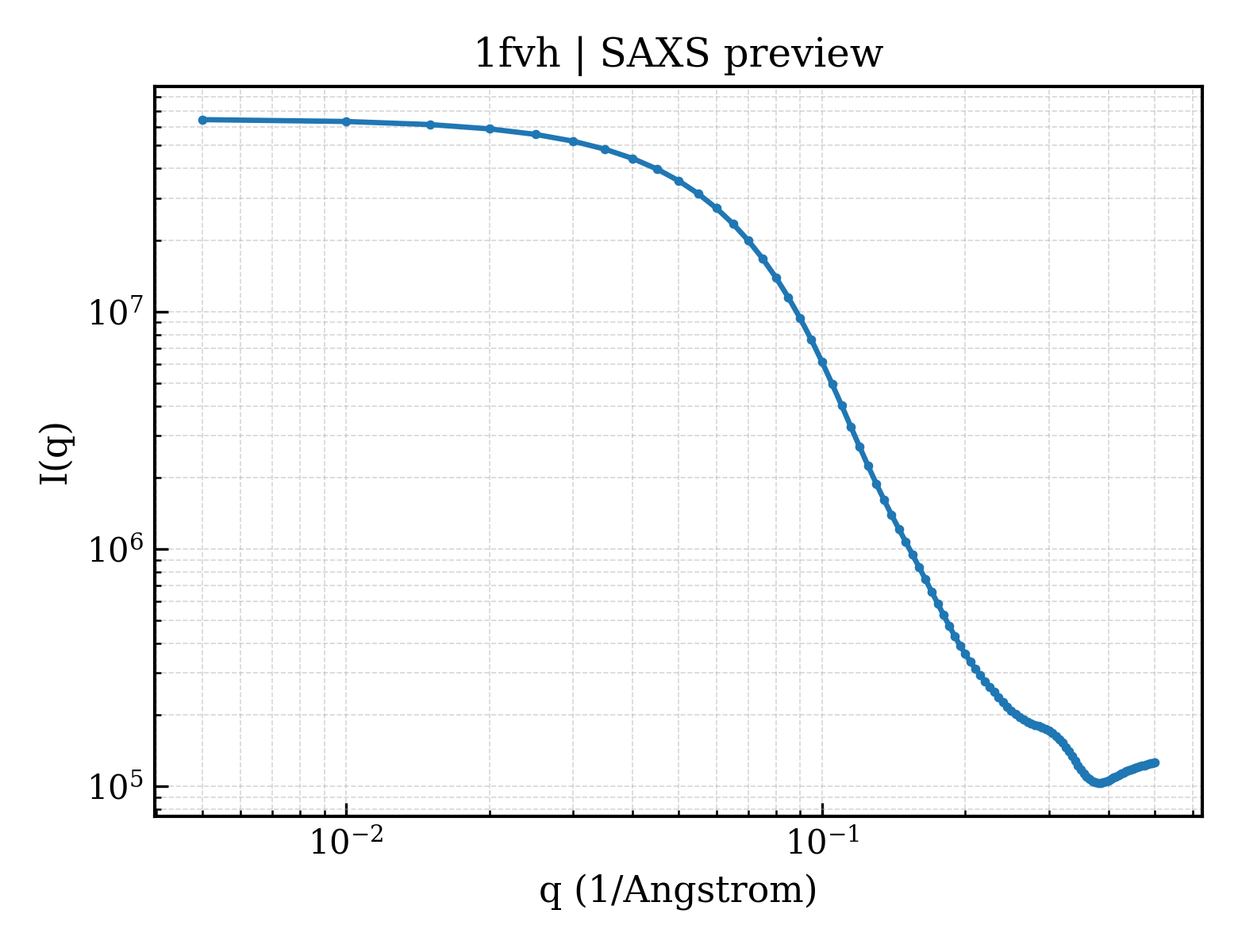

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 26.76 Å |
| Rg (electron density) | 25.85 Å |
| Total Rg | 26.68 Å |
| Atom count | 4412 |
| Residues | 546 |
| Excluded volume | 78744 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1fvha_ |
| Class class | e — Multi-domain proteins (alpha and beta) |
| Fold Fold fold | e.25 — Sec1/munc18-like (SM) proteins |
| Superfamily Superfamily superfamily | e.25.1 — Sec1/munc18-like (SM) proteins |
| Family Family family | e.25.1.1 — Sec1/munc18-like (SM) proteins |
| Domain ID domain_id | 1fvhA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 1910 — Sec1/Munc18 (SM) protein, domain 2 |
| Domain ID domain_id | 1fvhA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 2060 — Sec1/Munc18 (SM) protein, domain 1 |
| Domain ID domain_id | 1fvhA03 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 830 — Syntaxin Binding Protein 1; Chain A, domain 2 |
| Homologous superfamily homologous superfamily | 10 — Sec1/Munc18 (SM) protein, domain 3a |
| Domain ID domain_id | 1fvhA04 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 25 — Alpha Horseshoe |
| Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| Homologous superfamily homologous superfamily | 60 — |
