SAXSdb — 1fvi

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CHLORELLA VIRUS DNA LIGASE-ADENYLATE

Chlorella virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 ADENOSINE MONOPHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O41026_CHVP1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–297； UniProt 2–298

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fvi
Deposition date deposition_date	2000-09-20
Structure title title	CRYSTAL STRUCTURE OF CHLORELLA VIRUS DNA LIGASE-ADENYLATE
Keywords keywords	adenylated DNA ligase, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fvi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fvi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

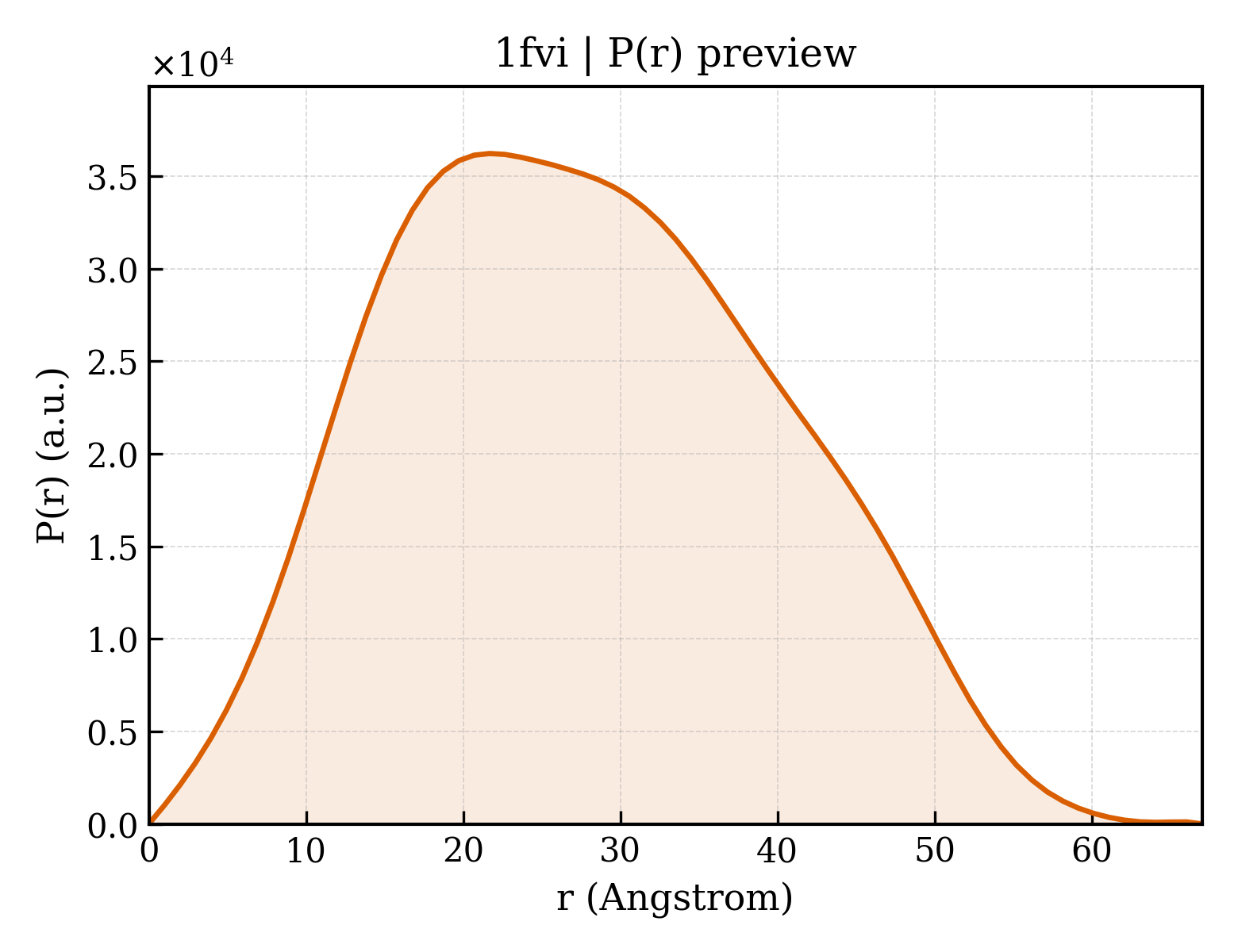

1fvi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.45 Å
Rg (electron density)	20.52 Å
Total Rg	21.41 Å
Atom count	2150
Residues	264
Excluded volume	38671 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fvi__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CHLORELLA VIRUS DNA LIGASE-ADENYLATE
Molecular weight formula_weight	34124.2 kDa
EC 编号 ec_number	6.5.1.-
Mutation mutation	D29A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2430

AITKPLLAATLENIEDVQFPCLATPKIAGIRSVKQTQMLSRTFKPIRNSVMNRLLTELLPEGSDGEISIEGATFQDTTSAVMTGHKMYNAKFSYYWFDYVTDDPLKKYIDRVEDMKNYITVHPHILEHAQVKIIPLIPVEINNITELLQYERDVLSKGFEGVMIRKPDGKYKFGRSTLKEGILLKMKQFKDAEATIISMTALFKNTNTKTKDNFGYSKRSTHKSGKVEEDVMGSIEVDYDGVVFSIGTGFDADQRRDFWQNKESYIGKMVKFKYFEMGSKDCPRFPVFIGIRHEEDR

Source Source

Source organism organism	Chlorella virus
NCBI taxonomy ID ncbi_taxonomy_id	10507
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	280

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fvia1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.6 — DNA ligase/mRNA capping enzyme postcatalytic domain

Domain ID domain_id	d1fvia2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.2 — DNA ligase/mRNA capping enzyme, catalytic domain
Family Family family	d.142.2.1 — ATP-dependent DNA ligase catalytic domain

CATH v4.4 (3 domains)

Domain ID domain_id	1fviA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1fviA02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1fviA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 — DNA ligase/mRNA capping enzyme

▶

Unit-cell length a length_a	48.170 Å
Unit-cell length b length_b	58.440 Å
Unit-cell length c length_c	101.790 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	6.000 Å
R factor r_factor	—
R_work r_work	0.1900
R_free r_free	0.2700
