SAXSdb — 1fym

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEAT SHOCK TRANSCRIPTION PROTEIN

Kluyveromyces lactis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	TAIL-TO-TAIL HSE × 2 water × 4	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	TAIL-TO-TAIL HSE × 2 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HSF_KLULA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–92； UniProt 193–284 Author chain B； PDBConstruct 1–92； UniProt 193–284

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fym
Deposition date deposition_date	2000-10-02
Structure title title	SERENDIPITOUS CRYSTAL STRUCTURE CONTAINING THE HEAT SHOCK TRANSCRIPTION FACTOR'S DNA BINDING DOMAIN AND COGNATE DNA IN A TAIL-TO-TAIL ORIENTATION
Keywords keywords	;crystal-packing interface, crystallization, protein-DNA interface, protein-protein interface, static disorder, TRANSCRIPTION-DNA COMPLEX ;; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fym__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

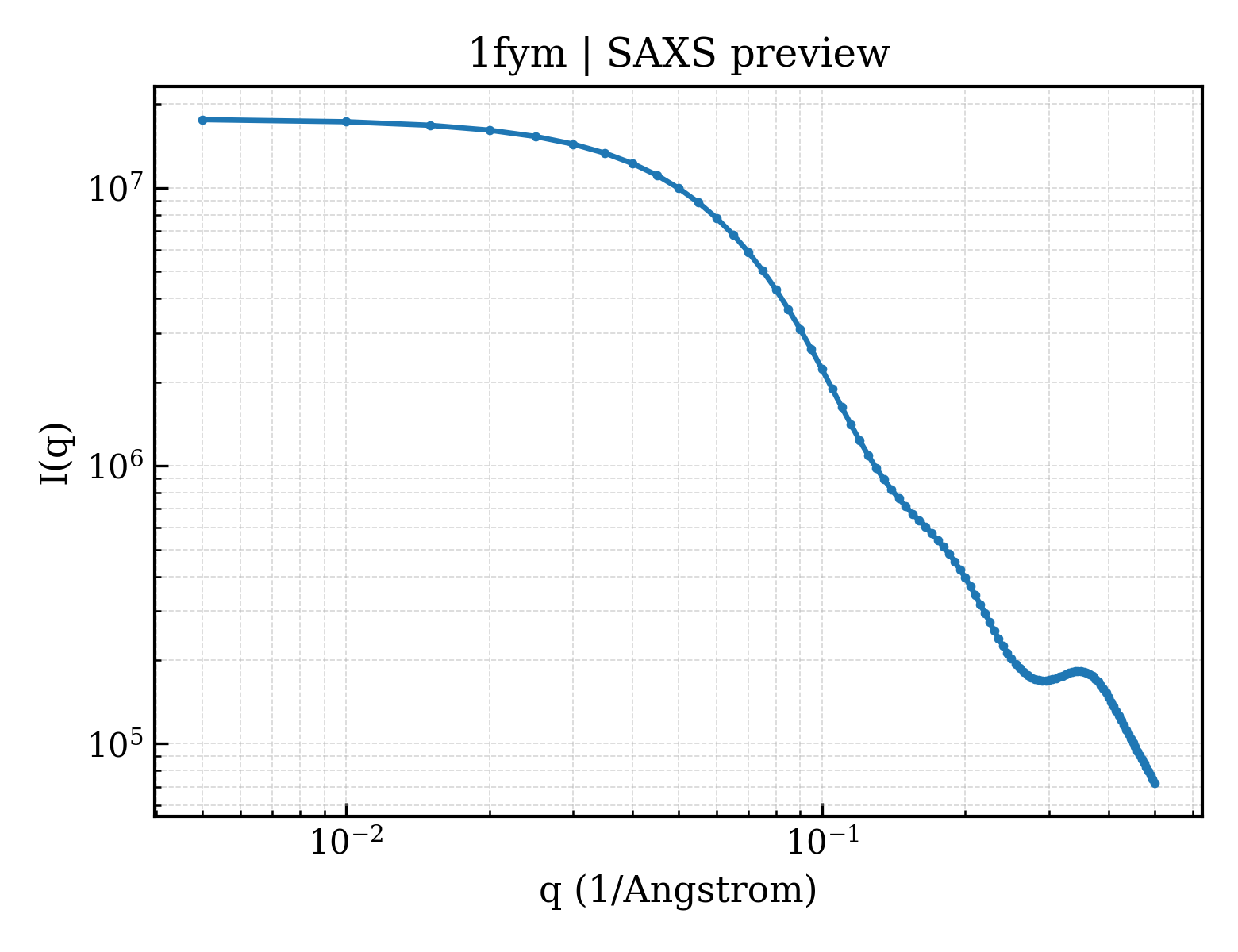

1fym__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

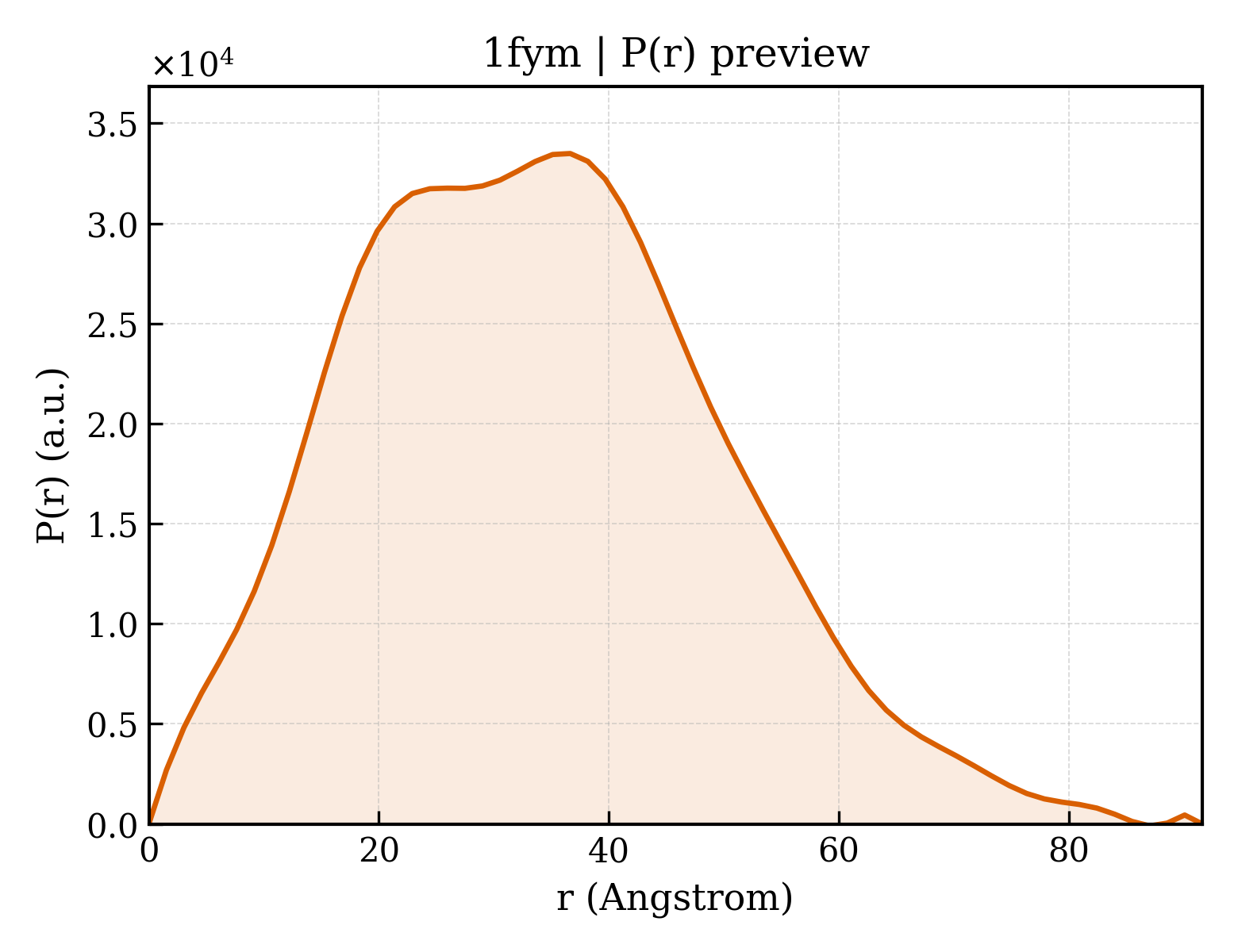

1fym__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.69 Å
Rg (electron density)	25.04 Å
Total Rg	25.55 Å
Atom count	1954
Residues	196
Excluded volume	32833 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fym__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fym__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TAIL-TO-TAIL HSE
Molecular weight formula_weight	3662.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D
Atom count atom_count	1980

GGTTCTAGAACC

Entity 2 Entity 2 polymer

Description description	HEAT SHOCK TRANSCRIPTION PROTEIN
Molecular weight formula_weight	10950.3 kDa
Mutation mutation	N282R, F283H, K284A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

ARPAFVNKLWSMVNDKSNEKFIHWSTSGESIVVPNRERFVQEVLPKYFKHSNFASFVRQLNMYGWHKVQDVKSGSMLSNNDSRWEFENERHA

Source Source

Source organism organism	Kluyveromyces lactis
NCBI taxonomy ID ncbi_taxonomy_id	28985
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	92

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1fyma_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.22 — Heat-shock transcription factor

Domain ID domain_id	d1fymb_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.22 — Heat-shock transcription factor

CATH v4.4 (2 domains)

Domain ID domain_id	1fymA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1fymB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	106.510 Å
Unit-cell length b length_b	34.020 Å
Unit-cell length c length_c	78.210 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.31 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2950

SERENDIPITOUS CRYSTAL STRUCTURE CONTAINING THE HEAT SHOCK TRANSCRIPTION FACTOR'S DNA BINDING DOMAIN AND COGNATE DNA IN A TAIL-TO-TAIL ORIENTATION
