SAXSdb — 1fzr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ENDONUCLEASE I

Enterobacteria phage T7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENRN_BPT7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–138； UniProt 12–149 Author chain B； PDBConstruct 1–138； UniProt 12–149 Author chain C； PDBConstruct 1–138； UniProt 12–149 Author chain D； PDBConstruct 1–138； UniProt 12–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fzr
Deposition date deposition_date	2000-10-04
Structure title title	CRYSTAL STRUCTURE OF BACTERIOPHAGE T7 ENDONUCLEASE I
Keywords keywords	Holliday junction resolvase, Homodimer, Domain swapped, Composite active site, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fzr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1fzr__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

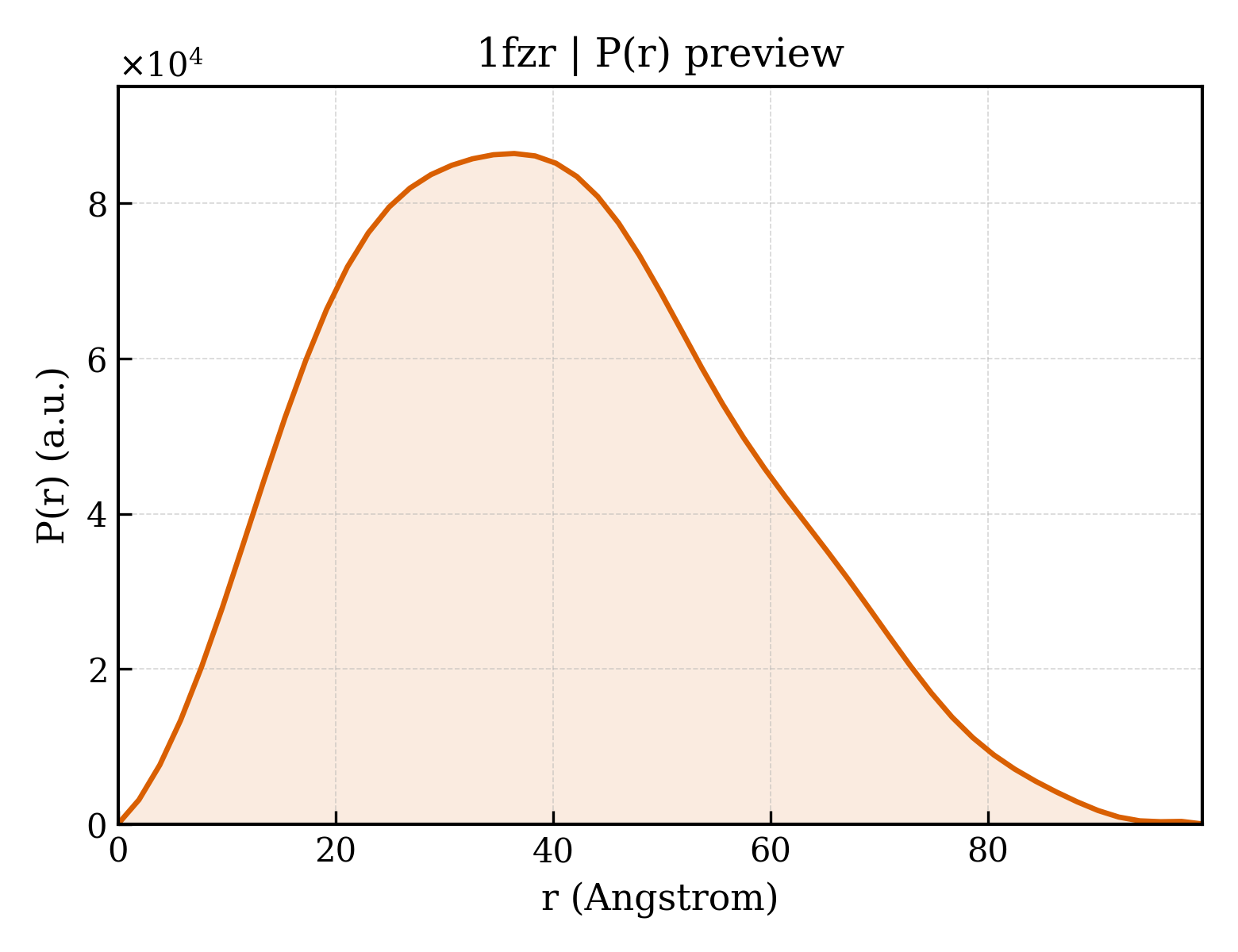

1fzr__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.11 Å
Rg (electron density)	25.77 Å
Total Rg	26.60 Å
Atom count	2109
Residues	258
Excluded volume	37809 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fzr__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fzr__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1fzra_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.17 — Endonuclease I (Holliday junction resolvase)

Domain ID domain_id	d1fzrb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.17 — Endonuclease I (Holliday junction resolvase)

Domain ID domain_id	d1fzrc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.17 — Endonuclease I (Holliday junction resolvase)

Domain ID domain_id	d1fzrd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.52 — Restriction endonuclease-like
Superfamily Superfamily superfamily	c.52.1 — Restriction endonuclease-like
Family Family family	c.52.1.17 — Endonuclease I (Holliday junction resolvase)

CATH v4.4 (4 domains)

Domain ID domain_id	1fzrA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	1fzrB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	1fzrC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	1fzrD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	91 — Restriction Endonuclease
Homologous superfamily homologous superfamily	30 —

▶

Unit-cell length a length_a	123.660 Å
Unit-cell length b length_b	135.190 Å
Unit-cell length c length_c	61.580 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	28.810 Å
R factor r_factor	0.2020
R_work r_work	0.1980
R_free r_free	0.2350

Description description	ENDONUCLEASE I
Molecular weight formula_weight	16069.6 kDa
EC 编号 ec_number	3.1.21.2
Mutation mutation	E65K
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4702

CRYSTAL STRUCTURE OF BACTERIOPHAGE T7 ENDONUCLEASE I

1. Protein Identity and Related Structures Protein Identity & Related Structures

ENDONUCLEASE I

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fzr__assembly_1__model_1

1fzr__assembly_1__model_1 | I(q)

1fzr__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Enterobacteria phage T7
NCBI taxonomy ID ncbi_taxonomy_id	10760
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	485

CRYSTAL STRUCTURE OF BACTERIOPHAGE T7 ENDONUCLEASE I

1. Protein Identity and Related Structures Protein Identity & Related Structures

ENDONUCLEASE I

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1fzr__assembly_1__model_1

1fzr__assembly_1__model_1 | I(q)

1fzr__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)
