SAXSdb — 1g0a

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HEMOGLOBIN ALPHA CHAIN

OrganismNot specified

UniProt P01966

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN BETA CHAIN × 2 （P02070） PROTOPORPHYRIN IX CONTAINING FE × 4 CARBON MONOXIDE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBA_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 1–141 Author chain C； PDBConstruct 1–141； UniProt 1–141

HEMOGLOBIN BETA CHAIN

OrganismNot specified

UniProt P02070

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	HEMOGLOBIN ALPHA CHAIN × 2 （P01966） PROTOPORPHYRIN IX CONTAINING FE × 4 CARBON MONOXIDE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBB_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–145； UniProt 1–145 Author chain D； PDBConstruct 1–145； UniProt 1–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g0a
Deposition date deposition_date	2000-10-05
Structure title title	CARBONMONOXY LIGANDED BOVINE HEMOGLOBIN PH 8.5
Keywords keywords	bovine, hemoglobin, liganded, carbonmonoxy, protoporphyrin IX, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g0a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

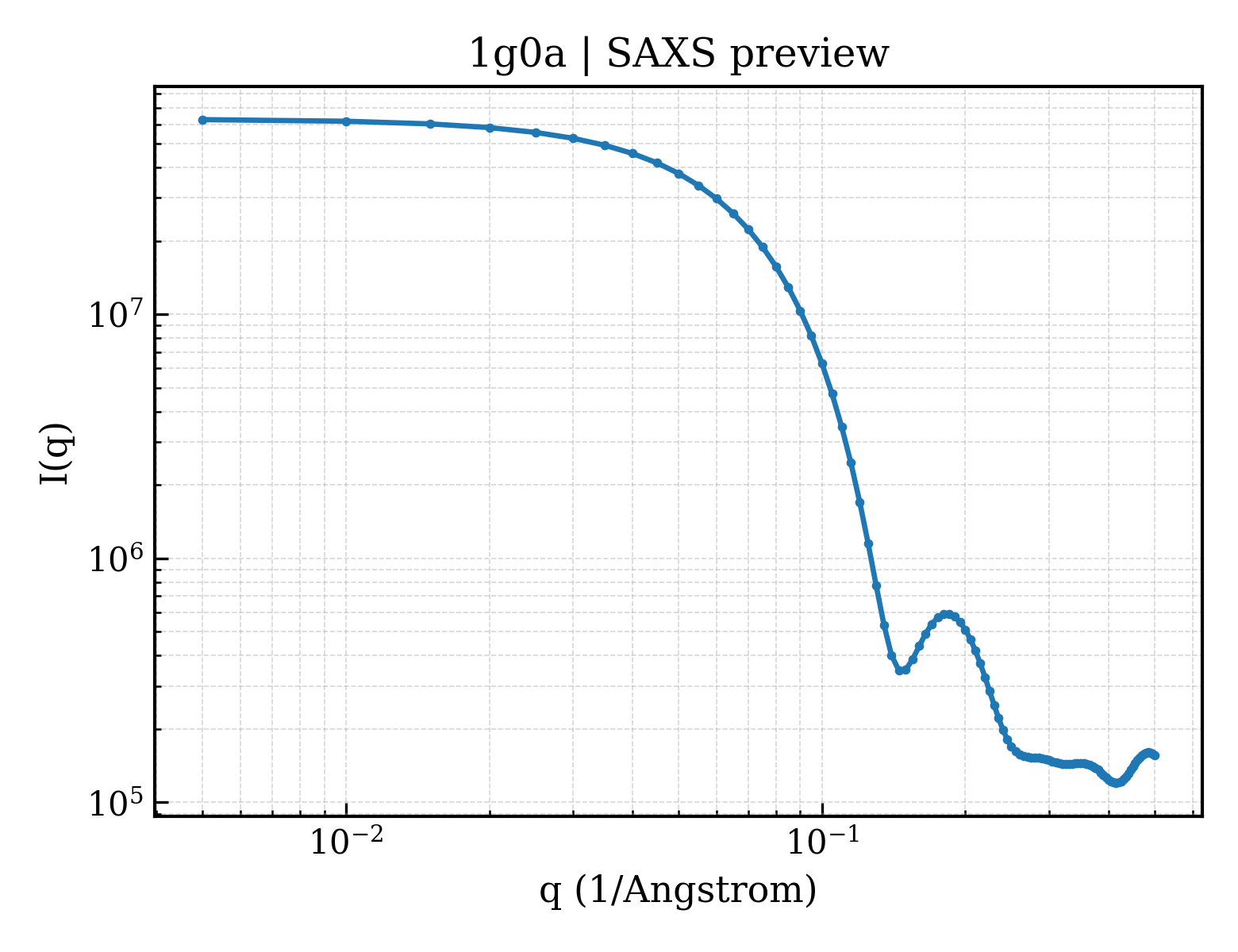

1g0a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

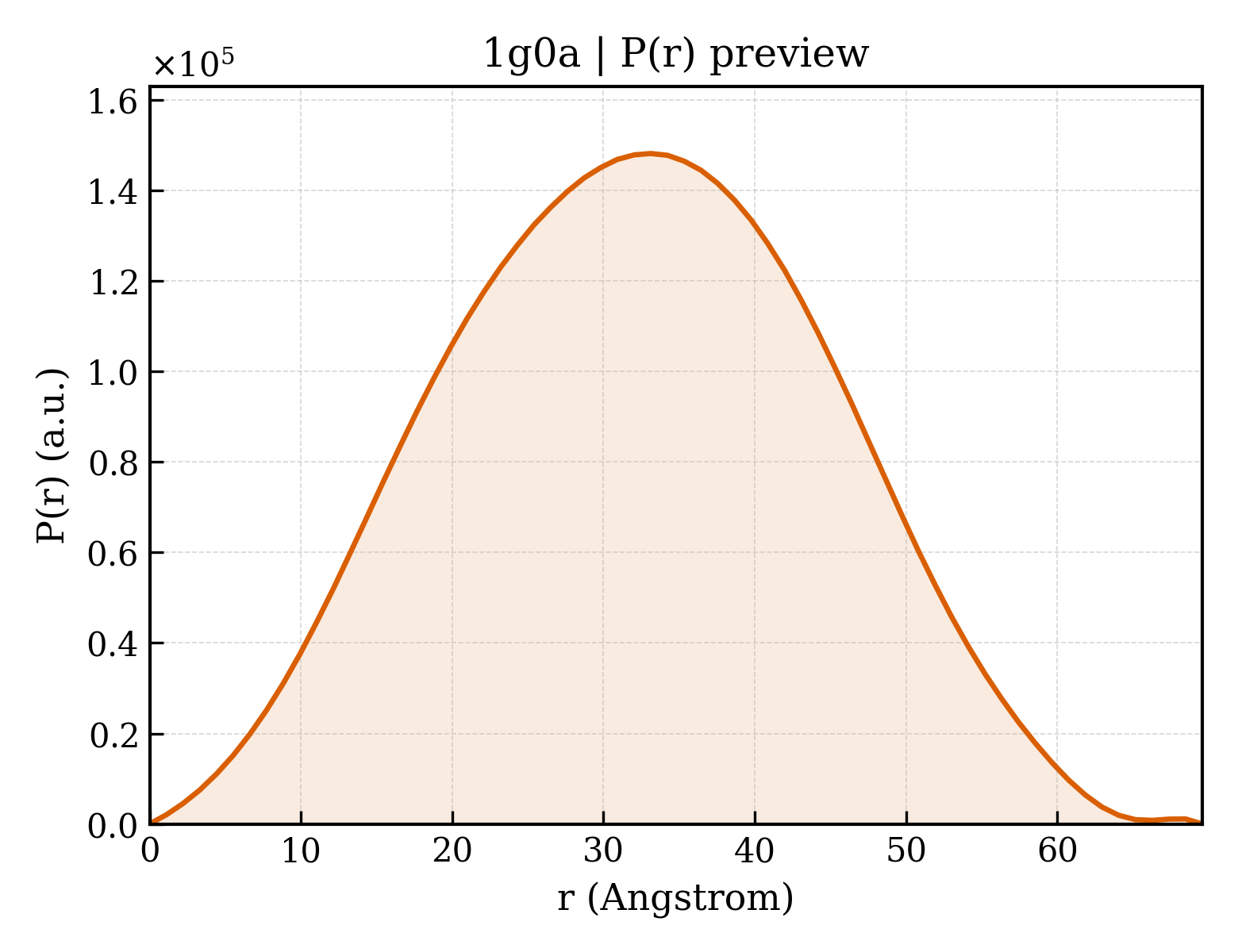

1g0a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.66 Å
Rg (electron density)	23.40 Å
Total Rg	24.31 Å
Atom count	4566
Residues	572
Excluded volume	81786 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g0a__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HEMOGLOBIN ALPHA CHAIN
Molecular weight formula_weight	15077.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4711

VLSAADKGNVKAAWGKVGGHAAEYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGAKVAAALTKAVEHLDDLPGALSELSDLHAHKLRVDPVNFKLLSHSLLVTLASHLPSDFTPAVHASLDKFLANVSTVLTSKYR

Entity 2 Entity 2 polymer

Description description	HEMOGLOBIN BETA CHAIN
Molecular weight formula_weight	15977.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MLTAEEKAAVTAFWGKVKVDEVGGEALGRLLVVYPWTQRFFESFGDLSTADAVMNNPKVKAHGKKVLDSFSNGMKHLDDLKGTFAALSELHCDKLHVDPENFKLLGNVLVVVLARNFGKEFTPVLQADFQKVVAGVANALAHRYH

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	CARBON MONOXIDE
Molecular weight formula_weight	28.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	145

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g0aa_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1g0ab_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1g0ac_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

Domain ID domain_id	d1g0ad_
Class class	a — All alpha proteins
Fold Fold fold	a.1 — Globin-like
Superfamily Superfamily superfamily	a.1.1 — Globin-like
Family Family family	a.1.1.2 — Globins

CATH v4.4 (4 domains)

Domain ID domain_id	1g0aA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1g0aB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1g0aC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

Domain ID domain_id	1g0aD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	490 — Globin-like
Homologous superfamily homologous superfamily	10 — Globins

▶

Unit-cell length a length_a	73.800 Å
Unit-cell length b length_b	131.400 Å
Unit-cell length c length_c	63.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	—

CARBONMONOXY LIGANDED BOVINE HEMOGLOBIN PH 8.5
