SAXSdb — 1g12

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEPTIDYL-LYS METALLOENDOPEPTIDASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	alpha-D-mannopyranose × 1 ZINC ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PLMP_GRIFR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–167； UniProt 1–167

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g12
Deposition date deposition_date	2000-10-10
Structure title title	ZINC PEPTIDASE FROM GRIFOLA FRONDOSA
Keywords keywords	zinc cordinate, METALLOPROTEASE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g12__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g12__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

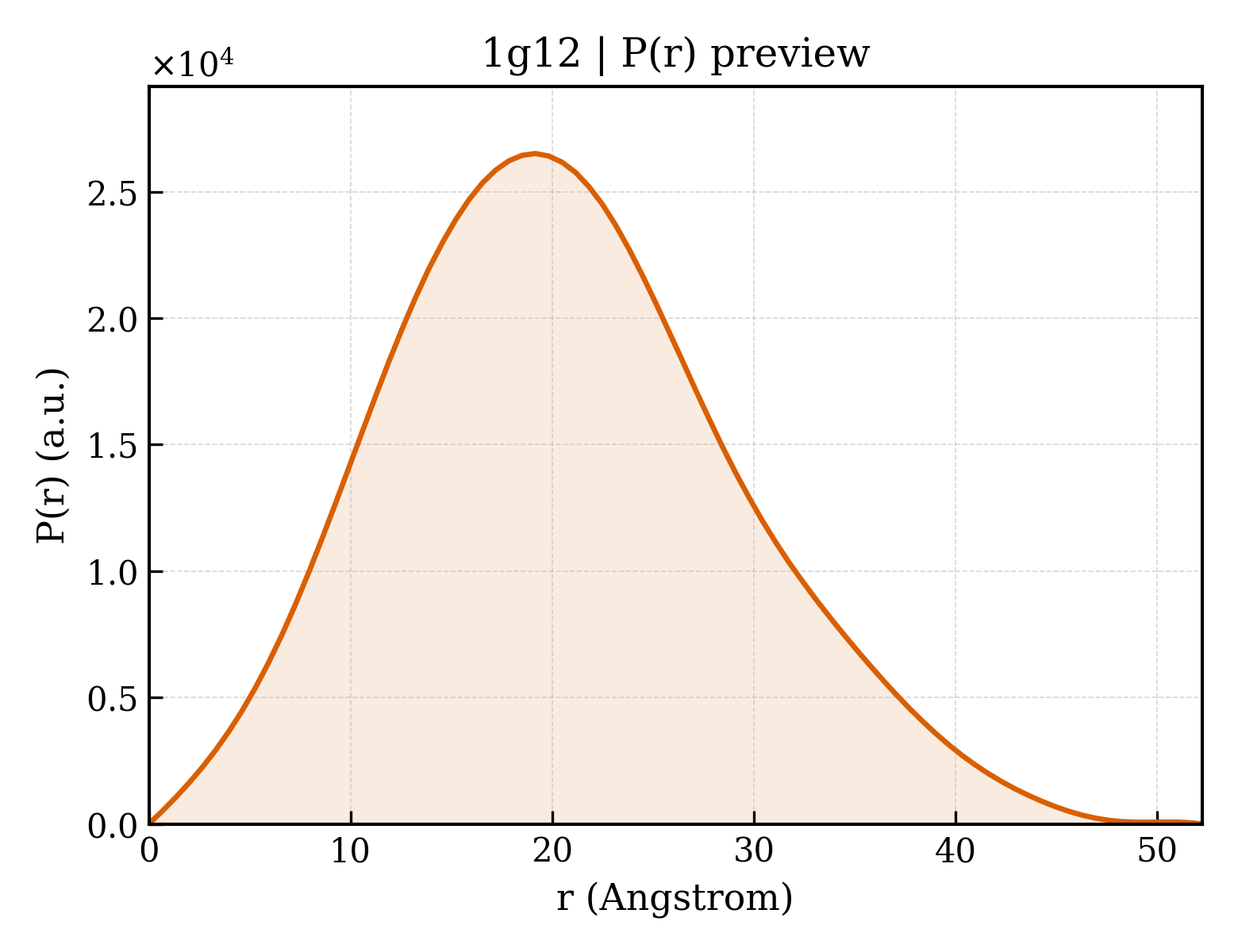

1g12__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.81 Å
Rg (electron density)	14.95 Å
Total Rg	16.03 Å
Atom count	1283
Residues	167
Excluded volume	22179 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g12__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PEPTIDYL-LYS METALLOENDOPEPTIDASE
Molecular weight formula_weight	18058.4 kDa
EC 编号 ec_number	3.4.24.20
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1484

TYNGCSSSEQSALAAAASAAQSYVAESLSYLQTHTAATPRYTTWFGSYISSRHSTVLQHYTDMNSNDFSSYSFDCTCTAAGTFAYVYPNRFGTVYLCGAFWKAPTTGTDSQAGTLVHESSHFTRNGGTKDYAYGQAAAKSLATMDPDKAVMNADNHEYFSENNPAQS

Entity 2 Entity 2 non-polymer

Description description	alpha-D-mannopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	201

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1g12a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.12 — Fungal zinc peptidase

CATH v4.4 (1 domains)

Domain ID domain_id	1g12A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

▶

Unit-cell length a length_a	43.631 Å
Unit-cell length b length_b	41.757 Å
Unit-cell length c length_c	76.941 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.48 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	38.300 Å
R factor r_factor	—
R_work r_work	0.2180
R_free r_free	0.2290

ZINC PEPTIDASE FROM GRIFOLA FRONDOSA
