1g1a

THE CRYSTAL STRUCTURE OF DTDP-D-GLUCOSE 4,6-DEHYDRATASE (RMLB)FROM SALMONELLA ENTERICA SEROVAR TYPHIMURIUM

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DTDP-D-GLUCOSE 4,6-DEHYDRATASE

Salmonella enterica subsp. enterica serovar Typhimurium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 5 NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFBB_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–361； UniProt 1–361 Author chain B； PDBConstruct 1–361； UniProt 1–361 Author chain C； PDBConstruct 1–361； UniProt 1–361 Author chain D； PDBConstruct 1–361； UniProt 1–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g1a
Deposition date deposition_date	2000-10-11
Structure title title	THE CRYSTAL STRUCTURE OF DTDP-D-GLUCOSE 4,6-DEHYDRATASE (RMLB)FROM SALMONELLA ENTERICA SEROVAR TYPHIMURIUM
Keywords keywords	Rossmann fold, Protein-NAD complex, Short Chain Dehydrogenase, lyase; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g1a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g1a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

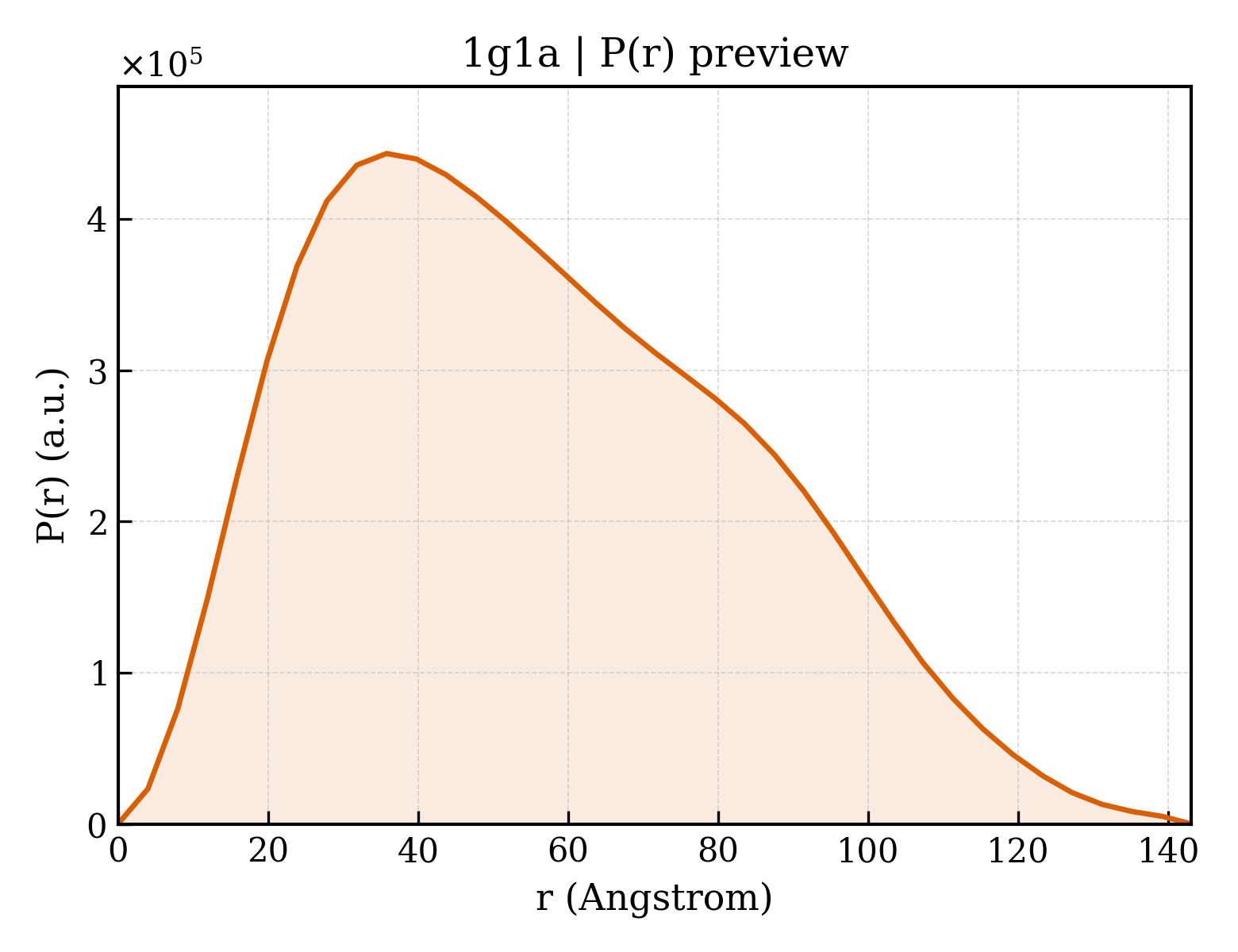

1g1a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.39 Å
Rg (electron density)	27.84 Å
Total Rg	28.56 Å
Atom count	5711
Residues	704
Excluded volume	100480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g1a__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g1a__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DTDP-D-GLUCOSE 4,6-DEHYDRATASE
Molecular weight formula_weight	40767.5 kDa
EC 编号 ec_number	4.2.1.46
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11929

MKILITGGAGFIGSAVVRHIIKNTQDTVVNIDKLTYAGNLESLSDISESNRYNFEHADICDSAEITRIFEQYQPDAVMHLAAESHVDRSITGPAAFIETNIVGTYALLEVARKYWSALGEDKKNNFRFHHISTDEVYGDLPHPDEVENSVTLPLFTETTAYAPSSPYSASKASSDHLVRAWRRTYGLPTIVTNCSNNYGPYHFPEKLIPLVILNALEGKPLPIYGKGDQIRDWLYVEDHARALHMVVTEGKAGETYNIGGHNEKKNLDVVFTICDLLDEIVPKATSYREQITYVADRPGHDRRYAIDAGKISRELGWKPLETFESGIRKTVEWYLANTQWVNNVKSGAYQSWIEQNYEGRQ

Source Source

Source organism organism	Salmonella enterica subsp. enterica serovar Typhimurium
NCBI taxonomy ID ncbi_taxonomy_id	90371
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 3 Entity 3 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	512

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g1aa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

Domain ID domain_id	d1g1ab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

Domain ID domain_id	d1g1ac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

Domain ID domain_id	d1g1ad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.2 — Tyrosine-dependent oxidoreductases

CATH v4.4 (8 domains)

Domain ID domain_id	1g1aA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1g1aA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	25 — UDP-galactose 4-epimerase; domain 1
Homologous superfamily homologous superfamily	10 — UDP-galactose 4-epimerase, domain 1

Domain ID domain_id	1g1aB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1g1aB02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	25 — UDP-galactose 4-epimerase; domain 1
Homologous superfamily homologous superfamily	10 — UDP-galactose 4-epimerase, domain 1

Domain ID domain_id	1g1aC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1g1aC02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	25 — UDP-galactose 4-epimerase; domain 1
Homologous superfamily homologous superfamily	10 — UDP-galactose 4-epimerase, domain 1

Domain ID domain_id	1g1aD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1g1aD02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	25 — UDP-galactose 4-epimerase; domain 1
Homologous superfamily homologous superfamily	10 — UDP-galactose 4-epimerase, domain 1

▶

Unit-cell length a length_a	110.623 Å
Unit-cell length b length_b	87.533 Å
Unit-cell length c length_c	111.304 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.04 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.470 Å
Low-resolution limit resolution_low	40.800 Å
R factor r_factor	0.2040
R_work r_work	0.2020
R_free r_free	0.2490
