SAXSdb — 1g24

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

EXOENZYME C3

Clostridium botulinum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
4	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARC3_CBDP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 8–218 Author chain B； PDBConstruct 1–211； UniProt 8–218 Author chain C； PDBConstruct 1–211； UniProt 8–218 Author chain D； PDBConstruct 1–211； UniProt 8–218

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g24
Deposition date deposition_date	2000-10-16
Structure title title	THE CRYSTAL STRUCTURE OF EXOENZYME C3 FROM CLOSTRIDIUM BOTULINUM
Keywords keywords	C3, ADP-ribosyltransferase, transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g24__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g24__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

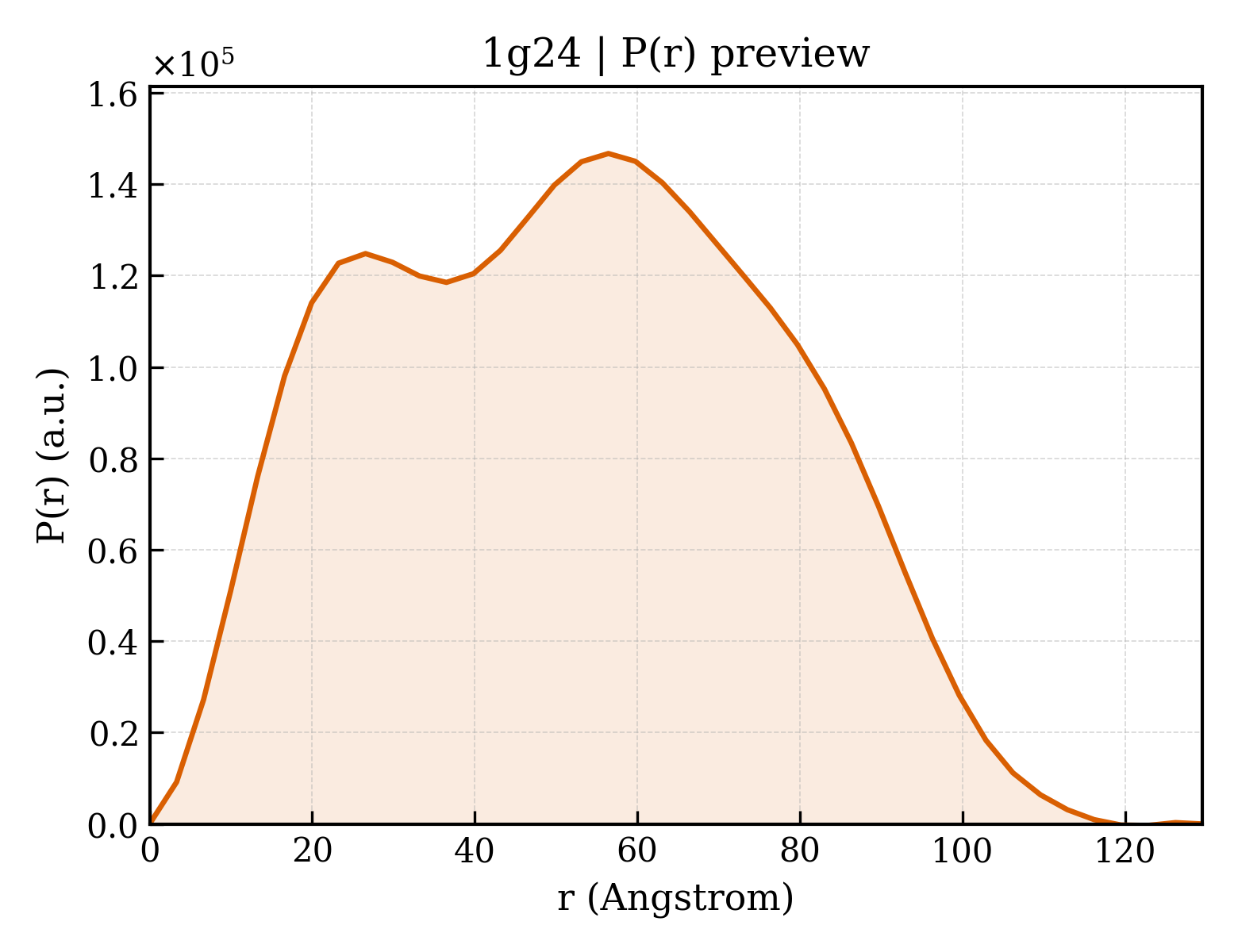

1g24__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.46 Å
Rg (electron density)	17.40 Å
Total Rg	18.47 Å
Atom count	1656
Residues	211
Excluded volume	29678 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g24__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g24__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1g24__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1g24__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g24a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d1g24b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d1g24c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d1g24d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

CATH v4.4 (4 domains)

Domain ID domain_id	1g24A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

Domain ID domain_id	1g24B00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

Domain ID domain_id	1g24C00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

Domain ID domain_id	1g24D00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	176 — Toxin ADP-ribosyltransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Toxin ADP-ribosyltransferase; Chain A, domain 1

▶

Unit-cell length a length_a	233.747 Å
Unit-cell length b length_b	73.757 Å
Unit-cell length c length_c	73.749 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	107.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2400
R_work r_work	0.2400
R_free r_free	0.2650

Description description	EXOENZYME C3
Molecular weight formula_weight	23592.0 kDa
EC 编号 ec_number	2.4.2.-
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7493

THE CRYSTAL STRUCTURE OF EXOENZYME C3 FROM CLOSTRIDIUM BOTULINUM

1. Protein Identity and Related Structures Protein Identity & Related Structures

EXOENZYME C3

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1g24__assembly_1__model_1

1g24__assembly_1__model_1 | I(q)

1g24__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	869
