1g29

MALK

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MALTOSE TRANSPORT PROTEIN MALK

Thermococcus litoralis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	AMMONIUM ION × 3 CHLORIDE ION × 10 SODIUM ION × 28 MAGNESIUM ION × 11 PYROPHOSPHATE 2- × 2 1,4-DIETHYLENE DIOXIDE × 3 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	AMMONIUM ION × 6 CHLORIDE ION × 20 SODIUM ION × 56 MAGNESIUM ION × 22 PYROPHOSPHATE 2- × 4 1,4-DIETHYLENE DIOXIDE × 6 water × 4	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	AMMONIUM ION × 3 CHLORIDE ION × 10 SODIUM ION × 28 MAGNESIUM ION × 11 PYROPHOSPHATE 2- × 2 1,4-DIETHYLENE DIOXIDE × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9YGA6_THELI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–372； UniProt 1–372 Author chain 2； PDBConstruct 1–372； UniProt 1–372

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g29
Deposition date deposition_date	2000-10-18
Structure title title	MALK
Keywords keywords	ATPase, active transport, maltose uptake and regulation, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g29__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g29__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

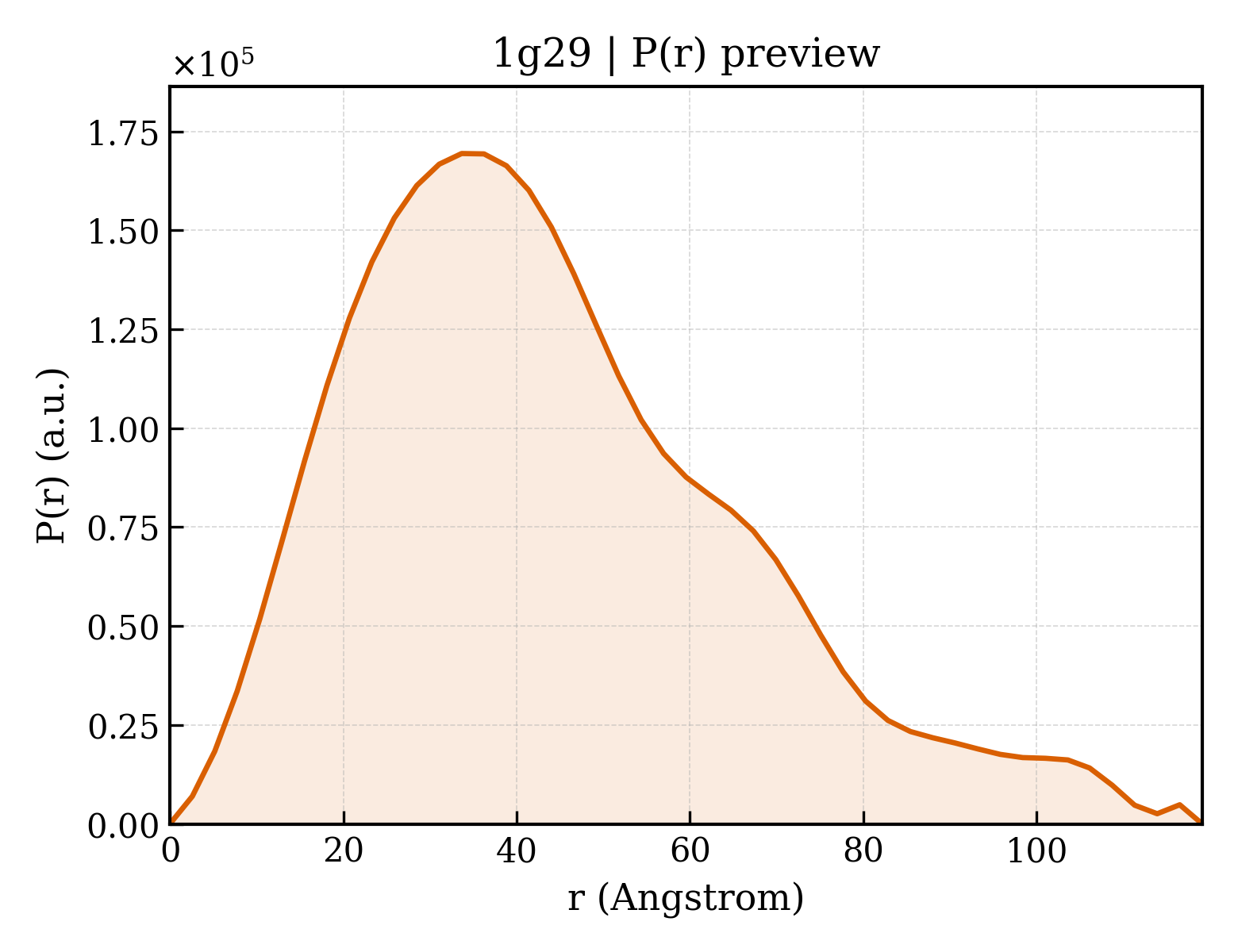

1g29__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.23 Å
Rg (electron density)	34.55 Å
Total Rg	34.53 Å
Atom count	5966
Residues	744
Excluded volume	108140 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g29__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g29__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1g29__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	MALTOSE TRANSPORT PROTEIN MALK
Molecular weight formula_weight	41858.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1,2
Atom count atom_count	6362

MAGVRLVDVWKVFGEVTAVREMSLEVKDGEFMILLGPSGCGKTTTLRMIAGLEEPSRGQIYIGDKLVADPEKGIFVPPKDRDIAMVFQSYALYPHMTVYDNIAFPLKLRKVPRQEIDQRVREVAELLGLTELLNRKPRELSGGQRQRVALGRAIVRKPQVFLMDEPLSNLDAKLRVRMRAELKKLQRQLGVTTIYVTHDQVEAMTMGDRIAVMNRGVLQQVGSPDEVYDKPANTFVAGFIGSPPMNFLDAIVTEDGFVDFGEFRLKLLPDQFEVLGELGYVGREVIFGIRPEDLYDAMFAQVRVPGENLVRAVVEIVENLGSERIVRLRVGGVTFVGSFRSESRVREGVEVDVVFDMKKIHIFDKTTGKAIF

Source Source

Source organism organism	Thermococcus litoralis
NCBI taxonomy ID ncbi_taxonomy_id	2265
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	28

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	11

Entity 6 Entity 6 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	1,4-DIETHYLENE DIOXIDE
Molecular weight formula_weight	88.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	396

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1g2912
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d1g2913
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1g2914
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1g2922
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.12 — ABC transporter ATPase domain-like

Domain ID domain_id	d1g2923
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

Domain ID domain_id	d1g2924
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.6 — MOP-like
Family Family family	b.40.6.3 — ABC-transporter additional domain

CATH v4.4 (6 domains)

Domain ID domain_id	1g29101
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1g29102
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1g29103
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

Domain ID domain_id	1g29201
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1g29202
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1g29203
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

Unit-cell length a length_a	190.718 Å
Unit-cell length b length_b	65.705 Å
Unit-cell length c length_c	77.912 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	34.260 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2470
