1g2c

HUMAN RESPIRATORY SYNCYTIAL VIRUS FUSION PROTEIN CORE

Method: X-RAY DIFFRACTION D_max: 103.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

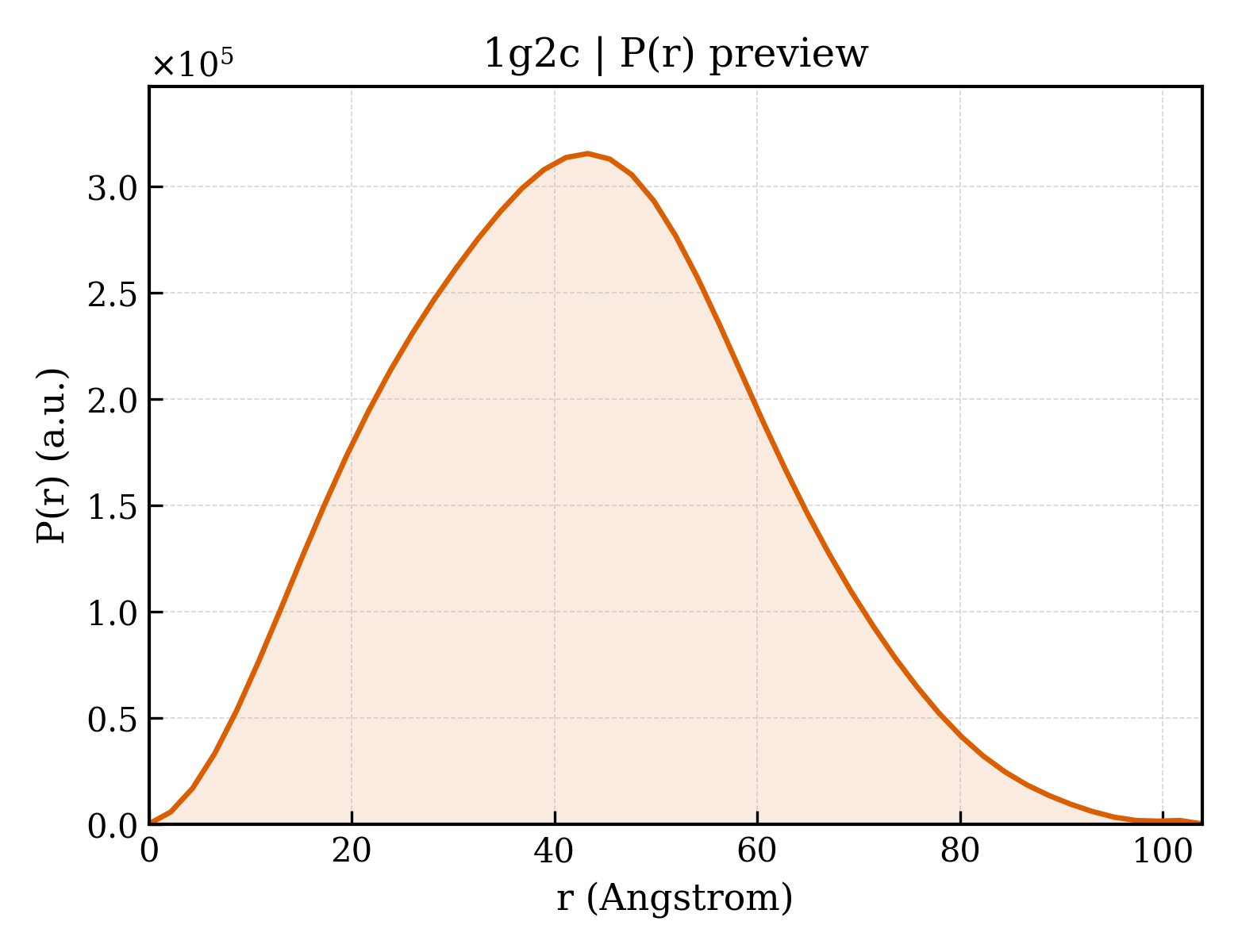

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g2c
沉积日期 deposition_date	2000-10-18
结构标题 title	HUMAN RESPIRATORY SYNCYTIAL VIRUS FUSION PROTEIN CORE
关键词 keywords	membrane fusion, pneumovirus, HRSV, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.80 Å
回转半径 Rg (电子) rg_electron	32.13 Å
零角强度 I(0) i0	183779000.00
分子量 molecular_weight	114250.0 kDa
排除体积 excluded_volume	145820 Å³
包络体积 envelope_volume	179150 Å³
水化壳体积 shell_volume	46113 Å³
包络直径 envelope_diameter	114.7 Å
壳层 Rg shell_rg	39.50 Å
包络 Rg envelope_rg	32.09 Å
形状 Rg shape_rg	32.12 Å
总 Rg total_rg	32.76 Å
总原子数 total_atoms	8054
残基数 n_residues	1039
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	103.9 Å
Rg (实空间) rg_real	32.64 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	1.8380e+08
I(0) 误差 (实空间) i0_real_error	3.1580e+06
Rg (倒空间) rg_reciprocal	32.71 Å
I(0) (倒空间) i0_reciprocal	183800000.0000
解质量估计 total_estimate	0.6767
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	43.3 Å
偏度 Skewness skewness	0.207
峰度 Kurtosis kurtosis	-0.386
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	65530000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 0.049; Positv: 1.000; Valcen: 0.997; Smooth: 0.936

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	FUSION PROTEIN (F)
分子量 formula_weight	5653.7 kDa
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K,M,O,Q,S,U,W
原子数 atom_count	8942

LHLEGEVNKIKSALLSTNKAVVSLSNGVSVLTSKVLDLKNYIDKQLLPIVNK

来源 Source

来源生物 organism	Human respiratory syncytial virus
NCBI 分类编号 ncbi_taxonomy_id	11261
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	FUSION PROTEIN (F)
分子量 formula_weight	4873.3 kDa
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L,N,P,R,T,V,X

FYDPLVFPSDEFDASISQVNEKINQSLAFIRKSDELLHNVNAG

来源 Source

来源生物 organism	Human respiratory syncytial virus
NCBI 分类编号 ncbi_taxonomy_id	11261
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	888

▼

6. 折叠分类 (SCOP + CATH) 26 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1g2c.1
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.2
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.3
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.4
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.5
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.6
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.7
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.8
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.9
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.a
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.b
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

结构域编号 domain_id	d1g2c.c
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.3 — Stalk segment of viral fusion proteins
超家族 Superfamily superfamily	h.3.2 — Virus ectodomain
家族 Family family	h.3.2.1 — Virus ectodomain

CATH v4.4 (14 domains)

结构域编号 domain_id	1g2cA00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cB00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1g2cC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cI00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cK00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cL00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1g2cM00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cO00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cQ00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cS00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cU00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1g2cW00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	67.904 Å
晶胞边长 b length_b	71.539 Å
晶胞边长 c length_c	76.455 Å
晶胞夹角 α angle_alpha	81.34 °
晶胞夹角 β angle_beta	73.80 °
晶胞夹角 γ angle_gamma	60.72 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2330
R_work r_work	0.2330
R_free r_free	0.2860

fit	/app/data/saxs_computation/g2/1g2c/1g2c.fit
pddf	/app/data/pr_computation/g2/1g2c/1g2c.pr.out
profile	/app/data/saxs_computation/g2/1g2c/1g2c.dat
