SAXSdb — 1g2o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PURINE NUCLEOSIDE PHOSPHORYLASE

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	PHOSPHATE ION × 3 1,4-DIDEOXY-4-AZA-1-(S)-(9-DEAZAHYPOXANTHIN-9-YL)-D-RIBITOL × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PUNA_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–268； UniProt 1–268 Author chain B； PDBConstruct 1–268； UniProt 1–268 Author chain C； PDBConstruct 1–268； UniProt 1–268

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g2o
Deposition date deposition_date	2000-10-20
Structure title title	CRYSTAL STRUCTURE OF PURINE NUCLEOSIDE PHOSPHORYLASE FROM MYCOBACTERIUM TUBERCULOSIS IN COMPLEX WITH A TRANSITION-STATE INHIBITOR
Keywords keywords	trimer, transition-state complex, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g2o__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g2o__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

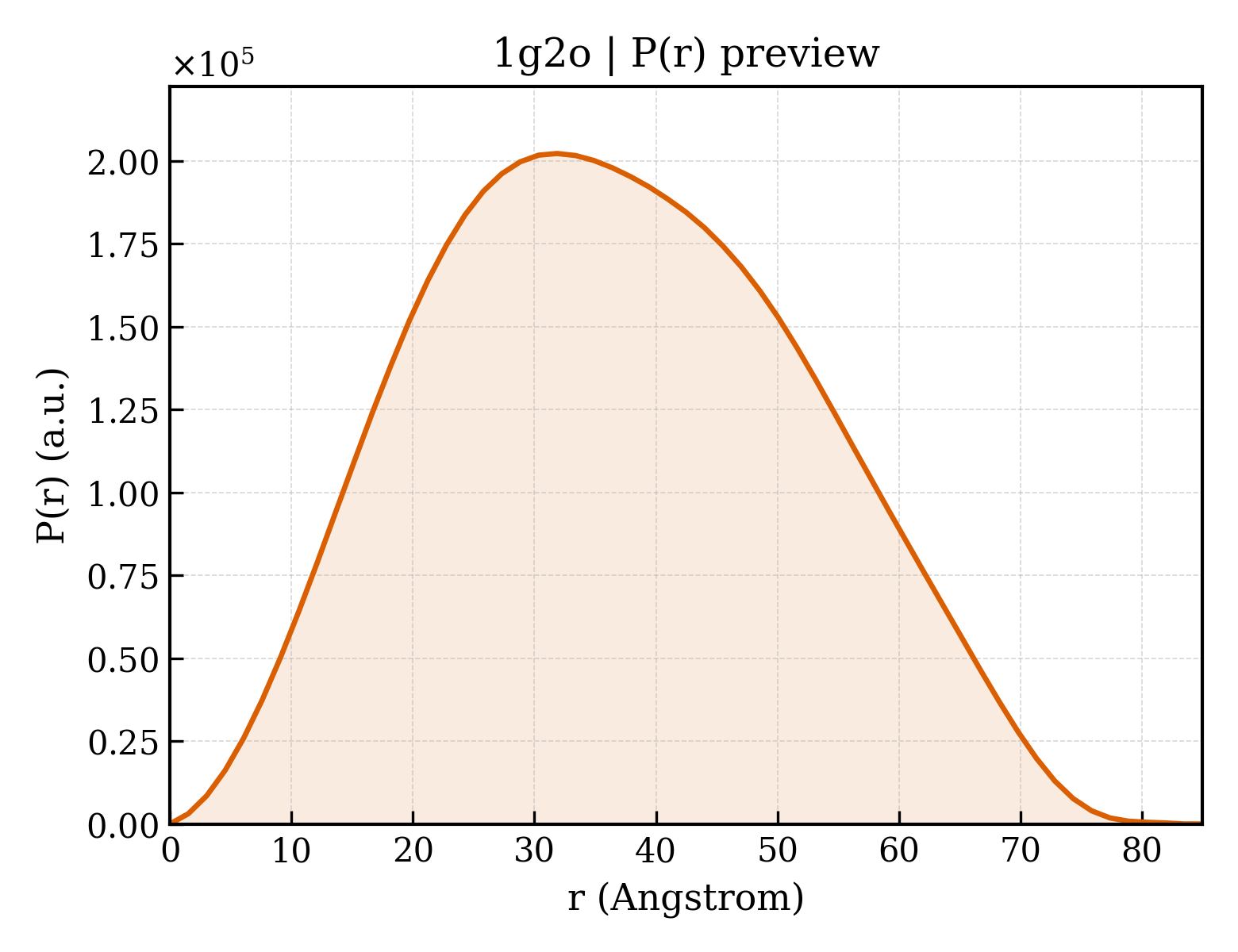

1g2o__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.32 Å
Rg (electron density)	27.39 Å
Total Rg	28.15 Å
Atom count	5760
Residues	786
Excluded volume	102090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g2o__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PURINE NUCLEOSIDE PHOSPHORYLASE
Molecular weight formula_weight	27599.5 kDa
EC 编号 ec_number	2.4.2.1
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6245

MADPRPDPDELARRAAQVIADRTGIGEHDVAVVLGSGWLPAVAALGSPTTVLPQAELPGFVPPTAAGHAGELLSVPIGAHRVLVLAGRIHAYEGHDLRYVVHPVRAARAAGAQIMVLTNAAGGLRADLQVGQPVLISDHLNLTARSPLVGGEFVDLTDAYSPRLRELARQSDPQLAEGVYAGLPGPHYETPAEIRMLQTLGADLVGMSTVHETIAARAAGAEVLGVSLVTNLAAGITGEPLSHAEVLAAGAASATRMGALLADVIARF

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	1,4-DIDEOXY-4-AZA-1-(S)-(9-DEAZAHYPOXANTHIN-9-YL)-D-RIBITOL
Molecular weight formula_weight	266.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	485

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1g2oa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1g2ob_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1g2oc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

CATH v4.4 (3 domains)

Domain ID domain_id	1g2oA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1g2oB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1g2oC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

▶

Unit-cell length a length_a	102.625 Å
Unit-cell length b length_b	102.625 Å
Unit-cell length c length_c	128.478 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1910
R_work r_work	0.1890
R_free r_free	0.2120
