SAXSdb — 1g4t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIAMIN PHOSPHATE SYNTHASE

Bacillus subtilis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 3-(4-AMINO-2-TRIFLUOROMETHYL-PYRIMIDIN-5-YLMETHYL)-4-METHYL-5-(2-PHOSPHONATOOXY-ETHYL)-THIAZOL-3-IUM × 1 PYROPHOSPHATE 2- × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 3-(4-AMINO-2-TRIFLUOROMETHYL-PYRIMIDIN-5-YLMETHYL)-4-METHYL-5-(2-PHOSPHONATOOXY-ETHYL)-THIAZOL-3-IUM × 1 PYROPHOSPHATE 2- × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	THIE_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–227； UniProt 1–222 Author chain B； PDBConstruct 6–227； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g4t
Deposition date deposition_date	2000-10-28
Structure title title	THIAMIN PHOSPHATE SYNTHASE
Keywords keywords	THIAMIN BIOSYNTHESIS, TIM BARREL, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g4t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g4t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

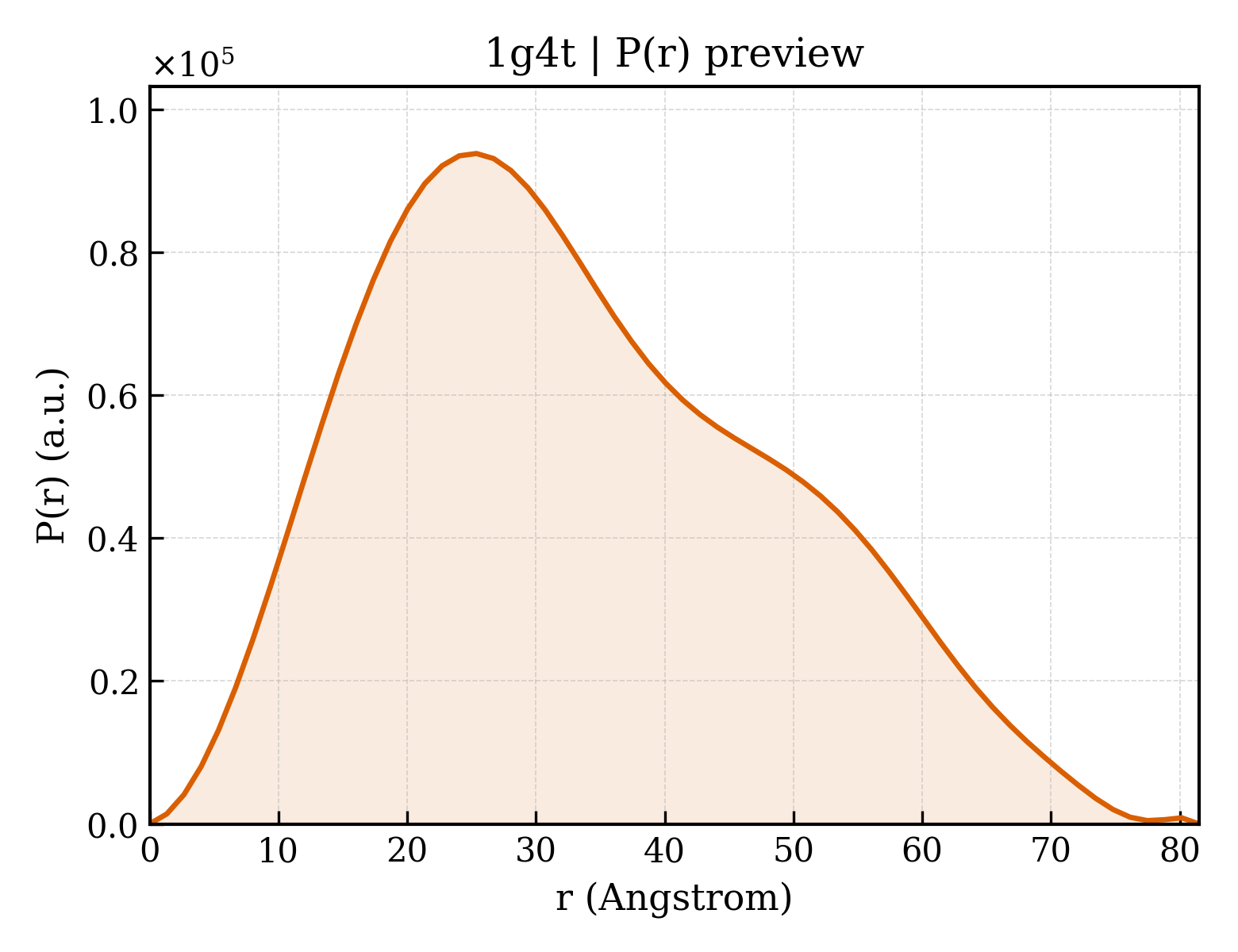

1g4t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.34 Å
Rg (electron density)	16.18 Å
Total Rg	17.24 Å
Atom count	1727
Residues	226
Excluded volume	30548 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g4t__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g4t__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	THIAMIN PHOSPHATE SYNTHASE
Molecular weight formula_weight	24312.6 kDa
EC 编号 ec_number	2.5.1.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3833

HHGIRMTRISREMMKELLSVYFIMGSNNTKADPVTVVQKALKGGATLYQFREKGGDALTGEARIKFAEKAQAACREAGVPFIVNDDVELALNLKADGIHIGQEDANAKEVRAAIGDMILGVSAHTMSEVKQAEEDGADYVGLGPIYPTETKKDTRAVQGVSLIEAVRRQGISIPIVGIGGITIDNAAPVIQAGADGVSMISAISQAEDPESAARKFREEIQTYKTGR

Source Source

Source organism organism	Bacillus subtilis
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	3-(4-AMINO-2-TRIFLUOROMETHYL-PYRIMIDIN-5-YLMETHYL)-4-METHYL-5-(2-PHOSPHONATOOXY-ETHYL)-THIAZOL-3-IUM
Molecular weight formula_weight	397.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	349

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g4ta1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.3 — Thiamin phosphate synthase
Family Family family	c.1.3.1 — Thiamin phosphate synthase

Domain ID domain_id	d1g4ta2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1g4tb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.3 — Thiamin phosphate synthase
Family Family family	c.1.3.1 — Thiamin phosphate synthase

Domain ID domain_id	d1g4tb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1g4tA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1g4tB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	76.790 Å
Unit-cell length b length_b	76.790 Å
Unit-cell length c length_c	140.330 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	42.940 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2390
