1g5c

CRYSTAL STRUCTURE OF THE 'CAB' TYPE BETA CLASS CARBONIC ANHYDRASE FROM METHANOBACTERIUM THERMOAUTOTROPHICUM

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CARBONIC ANHYDRASE

Methanothermobacter thermautotrophicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CALCIUM ION × 3 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CALCIUM ION × 1 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 2 CALCIUM ION × 2 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q50565_METTH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–170； UniProt 1–170 Author chain B； PDBConstruct 1–170； UniProt 1–170 Author chain C； PDBConstruct 1–170； UniProt 1–170 Author chain D； PDBConstruct 1–170； UniProt 1–170 Author chain E； PDBConstruct 1–170； UniProt 1–170 Author chain F； PDBConstruct 1–170； UniProt 1–170

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g5c
Deposition date deposition_date	2000-10-31
Structure title title	CRYSTAL STRUCTURE OF THE 'CAB' TYPE BETA CLASS CARBONIC ANHYDRASE FROM METHANOBACTERIUM THERMOAUTOTROPHICUM
Keywords keywords	beta carbonic anhydrase, zinc, HEPES, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g5c__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g5c__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

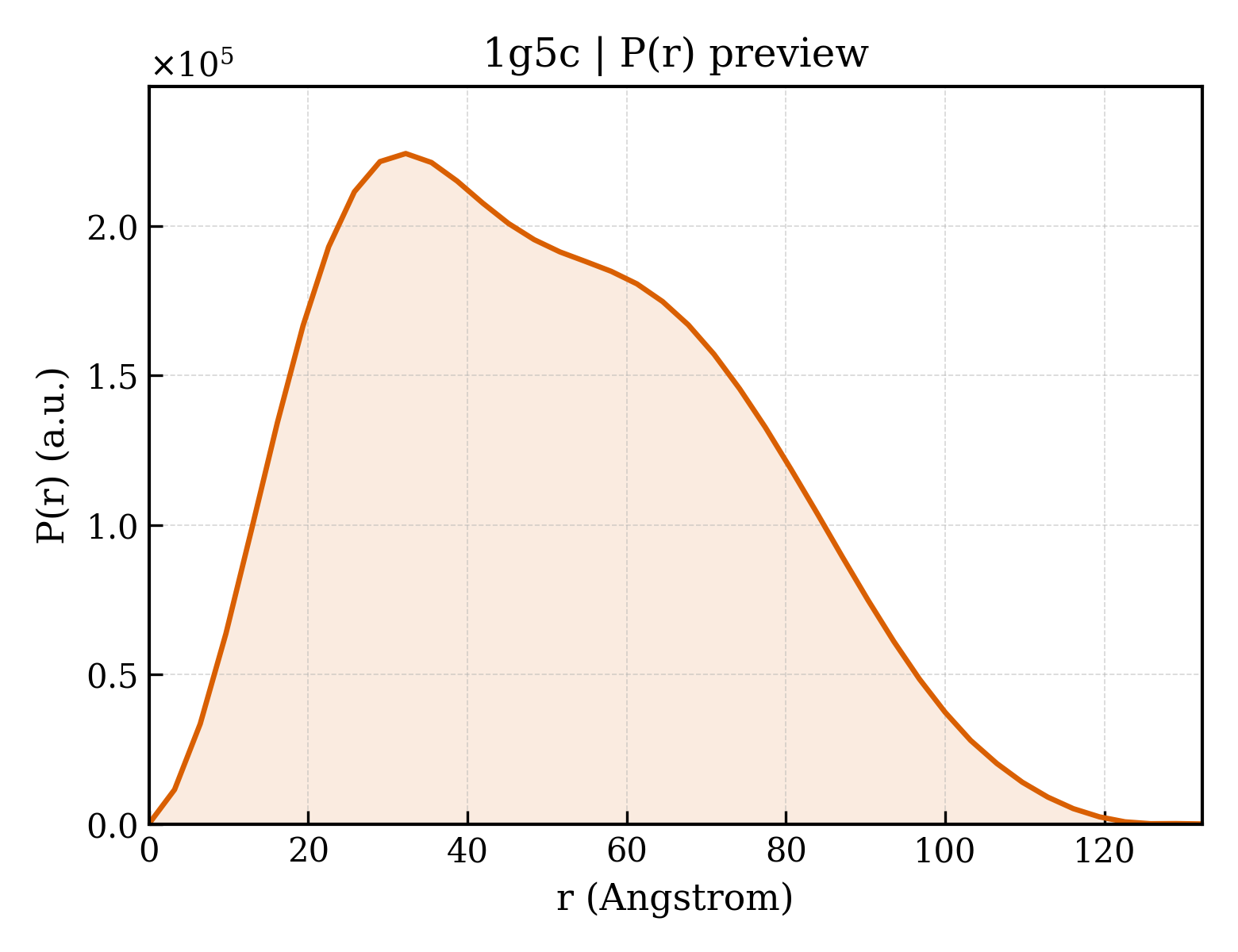

1g5c__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.94 Å
Rg (electron density)	19.98 Å
Total Rg	20.77 Å
Atom count	2541
Residues	327
Excluded volume	45660 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g5c__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1g5c__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1g5c__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BETA-CARBONIC ANHYDRASE
Molecular weight formula_weight	18869.7 kDa
EC 编号 ec_number	4.2.1.1
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	8010

MIIKDILRENQDFRFRDLSDLKHSPKLCIITCMDSRLIDLLERALGIGRGDAKVIKNAGNIVDDGVIRSAAVAIYALGDNEIIIVGHTDCGMARLDEDLIVSRMRELGVEEEVIENFSIDVLNPVGDEEENVIEGVKRLKSSPLIPESIGVHGLIIDINTGRLKPLYLDE

Source Source

Source organism organism	Methanothermobacter thermautotrophicus
NCBI taxonomy ID ncbi_taxonomy_id	145262
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	413

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1g5ca_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

Domain ID domain_id	d1g5cb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

Domain ID domain_id	d1g5cc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

Domain ID domain_id	d1g5cd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

Domain ID domain_id	d1g5ce_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

Domain ID domain_id	d1g5cf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.53 — Resolvase-like
Superfamily Superfamily superfamily	c.53.2 — beta-carbonic anhydrase, cab
Family Family family	c.53.2.1 — beta-carbonic anhydrase, cab

CATH v4.4 (6 domains)

Domain ID domain_id	1g5cA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

Domain ID domain_id	1g5cB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

Domain ID domain_id	1g5cC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

Domain ID domain_id	1g5cD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

Domain ID domain_id	1g5cE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

Domain ID domain_id	1g5cF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1050 — Beta-carbonic Anhydrase; Chain A
Homologous superfamily homologous superfamily	10 — Carbonic anhydrase

▶

Unit-cell length a length_a	54.670 Å
Unit-cell length b length_b	113.210 Å
Unit-cell length c length_c	156.180 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	18.000 Å
R factor r_factor	—
R_work r_work	0.2110
R_free r_free	0.2480
