1g5i

CRYSTAL STRUCTURE OF THE ACCESSORY SUBUNIT OF MURINE MITOCHONDRIAL POLYMERASE GAMMA

Method: X-RAY DIFFRACTION D_max: 140.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MITOCHONDRIAL DNA POLYMERASE ACCESSORY SUBUNIT

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 17–459 Chain B； UniProt 17–459	Not recorded	NA SODIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Sodium citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.233
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 17–459 Chain D； UniProt 17–459	Not recorded	NA SODIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Sodium citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.233

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1G5I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1G5H CRYSTAL STRUCTURE OF THE ACCESSORY SUBUNIT OF MURINE MITOCHONDRIAL POLYMERASE GAMMA Deposited 2000-11-01	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 17–459（443 aa） Chain B 17–459（443 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Sodium citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.224
1G5H CRYSTAL STRUCTURE OF THE ACCESSORY SUBUNIT OF MURINE MITOCHONDRIAL POLYMERASE GAMMA Deposited 2000-11-01	Different mutation/modification Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 17–459（443 aa） Chain D 17–459（443 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；Sodium citrate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.224
9G74 Mouse mitochondrial DNA polymerase gamma ternary complex in replication conformer Deposited 2024-07-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 17–459（443 aa） Chain C 17–459（443 aa）	Not recorded	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.75 Å
9G75 Mouse mitochondrial DNA polymerase gamma ternary complex in intermediate conformer Deposited 2024-07-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 17–459（443 aa） Chain C 17–459（443 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å
9G77 Mouse mitochondrial DNA polymerase gamma ternary complex in error-editing conformer (composite) Deposited 2024-07-19	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 17–459（443 aa） Chain C 17–459（443 aa）	Not recorded	CA CALCIUM ION × 2 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
9IC1 Chimeric mitochondrial DNA polymerase gamma ternary complex (hAmB) in replication conformer Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 17–459（443 aa） Chain C 17–459（443 aa）	Not recorded	CA CALCIUM ION × 1 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.73 Å
9IC3 Chimeric mitochondrial DNA polymerase gamma ternary complex (hAmB) in mouse-like error-editing conformer (composite) Deposited 2025-02-14	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 17–459（443 aa） Chain C 17–459（443 aa）	Not recorded	CA CALCIUM ION × 3 DCP 2'-DEOXYCYTIDINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPOG2_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–443； UniProt 17–459 Author chain B； PDBConstruct 1–443； UniProt 17–459 Author chain C； PDBConstruct 1–443； UniProt 17–459 Author chain D； PDBConstruct 1–443； UniProt 17–459

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g5i
Deposition date deposition_date	2000-11-01
Structure title title	CRYSTAL STRUCTURE OF THE ACCESSORY SUBUNIT OF MURINE MITOCHONDRIAL POLYMERASE GAMMA
Keywords keywords	intermolecular four helix bundle, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.22 Å
Radius of gyration Rg (electron density) rg_electron	39.02 Å
Forward intensity I(0) i0	491924000.00
Molecular weight molecular_weight	182890.0 kDa
Excluded volume excluded_volume	229980 Å³
Envelope volume envelope_volume	301080 Å³
Hydration-shell volume shell_volume	64239 Å³
Envelope diameter envelope_diameter	150.9 Å
Shell Rg shell_rg	44.75 Å
Envelope Rg envelope_rg	38.63 Å
Shape Rg shape_rg	38.97 Å
Total Rg total_rg	39.53 Å
Total atoms total_atoms	12892
Residues n_residues	1622
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

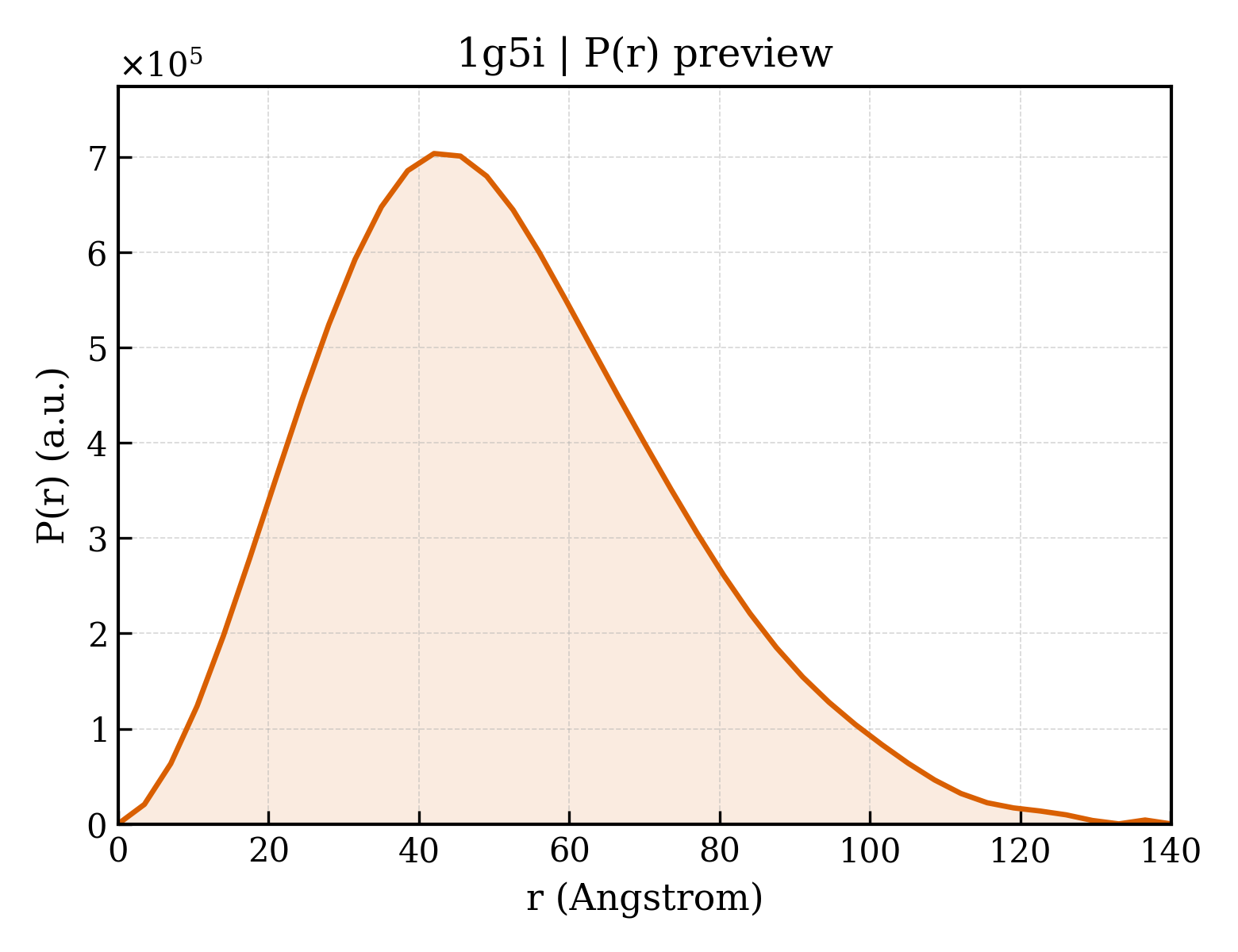

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.1 Å
Rg (real space) rg_real	39.35 Å
Rg uncertainty (real space) rg_real_error	1.42 Å
I(0) (real space) i0_real	4.9190e+08
I(0) uncertainty (real space) i0_real_error	8.7670e+06
Rg (reciprocal space) rg_reciprocal	39.27 Å
I(0) (reciprocal space) i0_reciprocal	491900000.0000
Solution quality estimate total_estimate	0.8368
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.0 Å
Skewness Skewness skewness	0.503
Kurtosis Kurtosis kurtosis	-0.036
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	124600000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.680; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.863

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MITOCHONDRIAL DNA POLYMERASE ACCESSORY SUBUNIT
Molecular weight formula_weight	51054.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13774

WLSGYAGPADGTQQPDAPEHAVAREALVDLCRRRHFLSGTPQQLSTAALLSGCHARFGPLGVELRKNLASQWWSSMVVFREQVFAVDSLHQEPGSSQPRDSAFRLVSPESIREILQDREPSKEQLVAFLENLLKTSGKLRATLLHGALEHYVNCLDLVNRKLPFGLAQIGVCFHPVSNSNQTPSSVTRVGEKTEASLVWFTPTRTSSQWLDFWLRHRLLWWRKFAMSPSNFSSADCQDELGRKGSKLYYSFPWGKEPIETLWNLGDQELLHTYPGNVSTIQGRDGRKNVVPCVLSVSGDVDLGTLAYLYDSFQLAENSFARKKSLQRKVLKLHPCLAPIKVALDVGKGPTVELRQVCQGLLNELLENGISVWPGYSETVHSSLEQLHSKYDEMSVLFSVLVTETTLENGLIQLRSRDTTMKEMMHISKLRDFLVKYLASASNVAAALDHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	882

▼

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1g5ia1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1g5ia2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1g5ia3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1g5ib1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1g5ib2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1g5ib3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1g5ic1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1g5ic2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1g5ic3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1g5id1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.51 — Anticodon-binding domain-like
Superfamily Superfamily superfamily	c.51.1 — Class II aaRS ABD-related
Family Family family	c.51.1.1 — Anticodon-binding domain of Class II aaRS

Domain ID domain_id	d1g5id2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

Domain ID domain_id	d1g5id3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	1g5iA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1g5iA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1g5iB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1g5iB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1g5iC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1g5iC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

Domain ID domain_id	1g5iD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

Domain ID domain_id	1g5iD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	800 — Anticodon-binding domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	96.743 Å
Unit-cell length b length_b	134.010 Å
Unit-cell length c length_c	135.144 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2330
