SAXSdb — 1g6n

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CATABOLITE GENE ACTIVATOR PROTEIN

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CRP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–210； UniProt 1–210 Author chain B； PDBConstruct 1–210； UniProt 1–210

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g6n
Deposition date deposition_date	2000-11-07
Structure title title	2.1 ANGSTROM STRUCTURE OF CAP-CAMP
Keywords keywords	Catabolite activator protein (CAP), cAMP receptor protein (CRP), transcription, allostery, cyclic AMP, cAMP, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1g6n__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1g6n__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

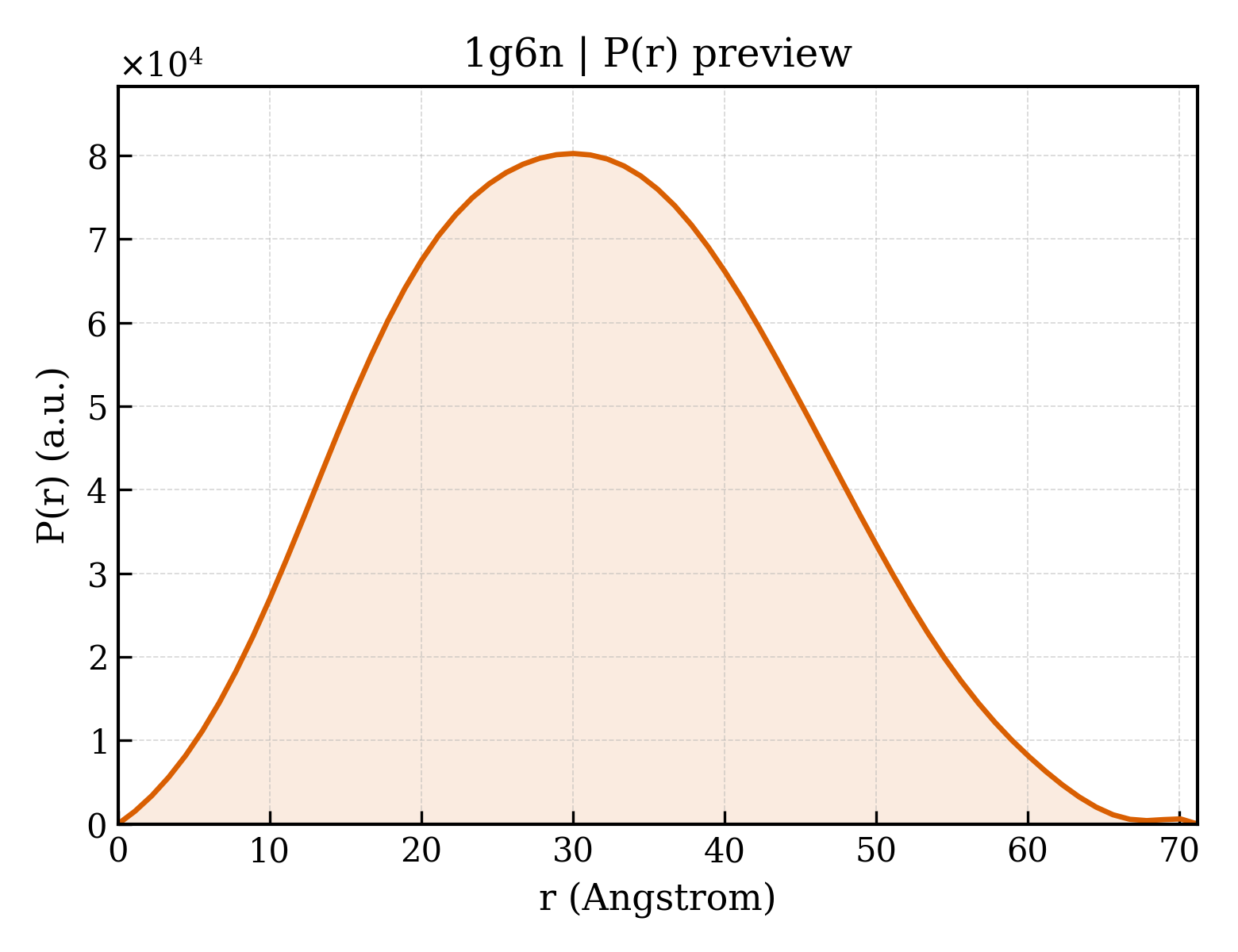

1g6n__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.92 Å
Rg (electron density)	22.91 Å
Total Rg	23.76 Å
Atom count	3214
Residues	401
Excluded volume	57490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1g6n__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CATABOLITE GENE ACTIVATOR PROTEIN
Molecular weight formula_weight	23672.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3329

MVLGKPQTDPTLEWFLSHCHIHKYPSKSTLIHQGEKAETLYYIVKGSVAVLIKDEEGKEMILSYLNQGDFIGELGLFEEGQERSAWVRAKTACEVAEISYKKFRQLIQVNPDILMRLSAQMARRLQVTSEKVGNLAFLDVTGRIAQTLLNLAKQPDAMTHPDGMQIKITRQEIGQIVGCSRETVGRILKMLEDQNLISAHGKTIVVYGTR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE
Molecular weight formula_weight	329.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	115

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1g6na1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.4 — CAP C-terminal domain-like

Domain ID domain_id	d1g6na2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.3 — cAMP-binding domain-like
Family Family family	b.82.3.2 — cAMP-binding domain

Domain ID domain_id	d1g6nb1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
Family Family family	a.4.5.4 — CAP C-terminal domain-like

Domain ID domain_id	d1g6nb2
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.3 — cAMP-binding domain-like
Family Family family	b.82.3.2 — cAMP-binding domain

CATH v4.4 (4 domains)

Domain ID domain_id	1g6nA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1g6nA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

Domain ID domain_id	1g6nB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	10 — Jelly Rolls

Domain ID domain_id	1g6nB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

Unit-cell length a length_a	46.800 Å
Unit-cell length b length_b	95.600 Å
Unit-cell length c length_c	105.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2070
R_work r_work	0.2070
R_free r_free	—
