Human immunodeficiency virus 1
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein–RNA | Monomer | Protein 1 RNA 1 | HIV-1 RRE-IIB 32 NUCLEOTIDE RNA × 1 | Consistent with all polymers |
| UniProt name | Q7SIF5_9HIV1 |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–22； UniProt 1–22 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1g70 |
| Deposition date deposition_date | 2000-11-08 |
| Structure title title | COMPLEX OF HIV-1 RRE-IIB RNA WITH RSG-1.2 PEPTIDE |
| Keywords keywords | peptide-RNA complex, non-canonical base pairs, VIRAL PROTEIN-RNA COMPLEX; VIRAL PROTEIN/RNA |
| Experimental Method method | SOLUTION NMR |

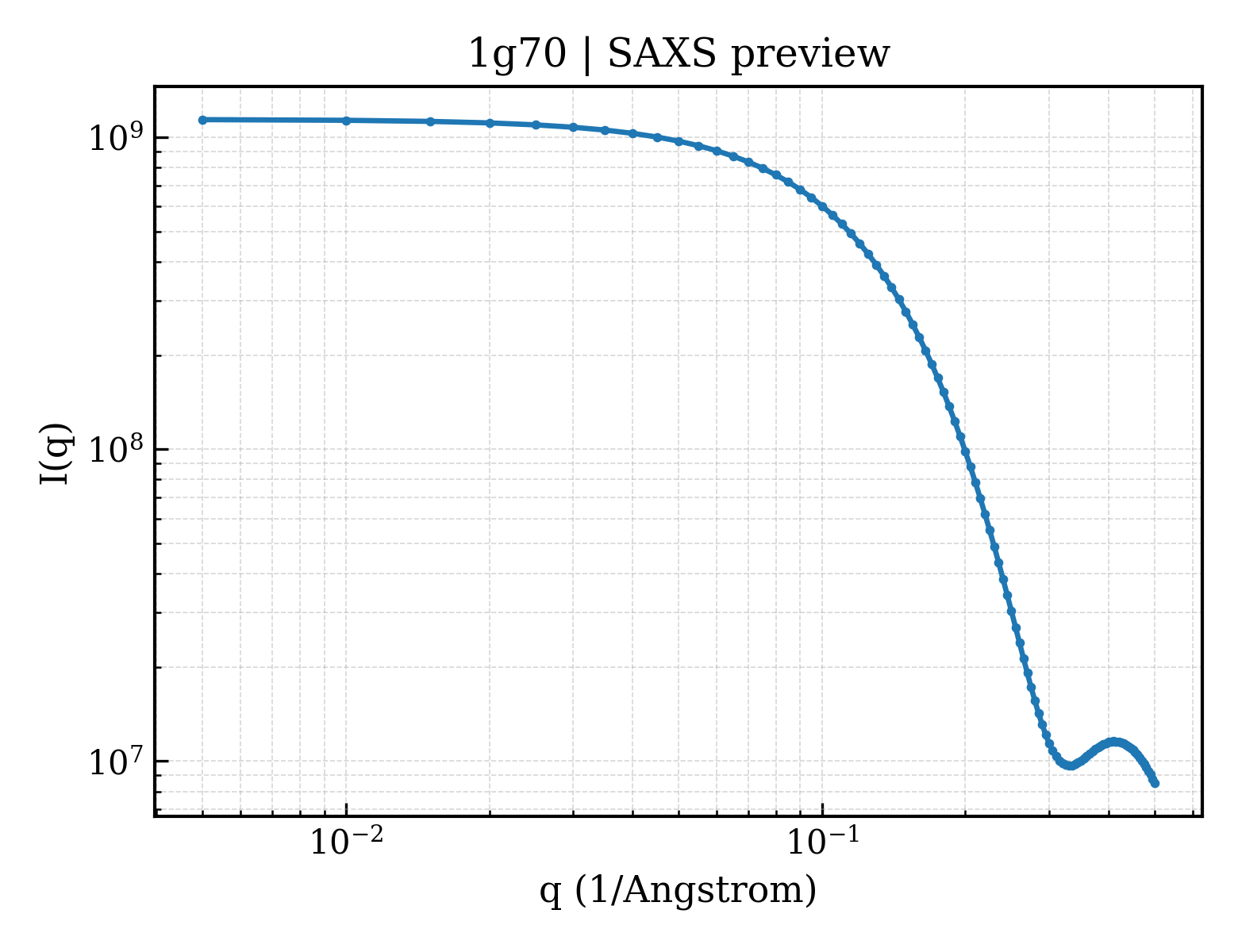

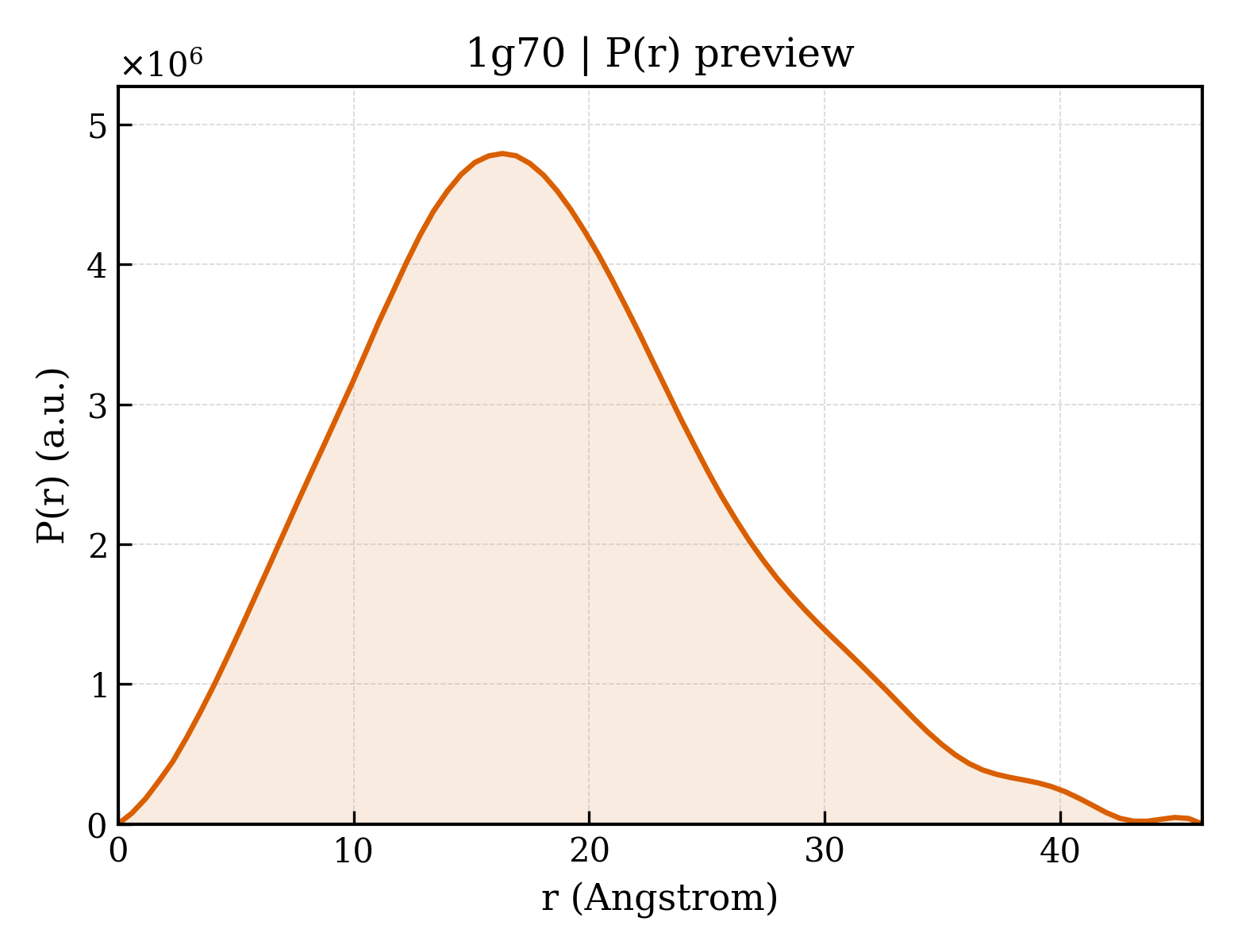

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 14.50 Å |
| Rg (electron density) | 13.70 Å |
| Total Rg | 14.55 Å |
| Atom count | 1285 |
| Residues | 48 |
| Excluded volume | 11748 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1g70__assembly_1__model_1 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1g70__assembly_1__model_2 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1g70__assembly_1__model_3 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1g70__assembly_1__model_4 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1g70__assembly_1__model_5 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1g70__assembly_1__model_6 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1g70__assembly_1__model_7 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1g70__assembly_1__model_8 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1g70__assembly_1__model_9 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1g70__assembly_1__model_10 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 11 | 1g70__assembly_1__model_11 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 12 | 1g70__assembly_1__model_12 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 13 | 1g70__assembly_1__model_13 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 14 | 1g70__assembly_1__model_14 |
dimeric （2） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1g70b_ |
| Class class | j — Peptides |
| Fold Fold fold | j.9 — Arg-rich RNA binding peptides |
| Superfamily Superfamily superfamily | j.9.3 — RSG-1.2 peptide |
| Family Family family | j.9.3.1 — RSG-1.2 peptide |
