SAXSdb — 1g9j

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1g9j
沉积日期 deposition_date	2000-11-24
结构标题 title	X-TAL STRUCTURE OF THE MUTANT E44Q OF THE CELLULASE CEL48F IN COMPLEX WITH A THIOOLIGOSACCHARIDE
关键词 keywords	alpha-alpha-6-barrel, cellulase, thiooligosaccharide, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.42 Å
回转半径 Rg (电子) rg_electron	23.19 Å
零角强度 I(0) i0	86763700.00
分子量 molecular_weight	72293.0 kDa
排除体积 excluded_volume	89618 Å³
包络体积 envelope_volume	99322 Å³
水化壳体积 shell_volume	33714 Å³
包络直径 envelope_diameter	74.6 Å
壳层 Rg shell_rg	31.96 Å
包络 Rg envelope_rg	23.38 Å
形状 Rg shape_rg	23.17 Å
总 Rg total_rg	24.11 Å
总原子数 total_atoms	5107
残基数 n_residues	629
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	73.5 Å
Rg (实空间) rg_real	24.20 Å
Rg 误差 (实空间) rg_real_error	0.26 Å
I(0) (实空间) i0_real	8.6760e+07
I(0) 误差 (实空间) i0_real_error	1.0900e+06
Rg (倒空间) rg_reciprocal	24.25 Å
I(0) (倒空间) i0_reciprocal	86770000.0000
解质量估计 total_estimate	0.7336
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.5 Å
偏度 Skewness skewness	0.081
峰度 Kurtosis kurtosis	-0.530
角度范围 angular_range	— – 0.3250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	32210000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 0.264; Positv: 1.000; Valcen: 0.978; Smooth: 0.979

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	CELLULASE CEL48F
分子量 formula_weight	70868.9 kDa
EC 编号 ec_number	3.2.1.4
突变 mutation	E44Q
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5568

ASSPANKVYQDRFESMYSKIKDPANGYFSEQGIPYHSIETLMVQAPDYGHVTTSEAMSYYMWLEAMHGRFSGDFTGFDKSWSVTEQYLIPTEKDQPNTSMSRYDANKPATYAPEFQDPSKYPSPLDTSQPVGRDPINSQLTSAYGTSMLYGMHWILDVDNWYGFGARADGTSKPSYINTFQRGEQESTWETIPQPCWDEHKFGGQYGFLDLFTKDTGTPAKQFKYTNAPDADARAVQATYWADQWAKEQGKSVSTSVGKATKMGDYLRYSFFDKYFRKIGQPSQAGTGYDAAHYLLSWYYAWGGGIDSTWSWIIGSSHNHFGYQNPFAAWVLSTDANFKPKSSNGASDWAKSLDRQLEFYQWLQSAEGAIAGGATNSWNGRYEAVPSGTSTFYGMGYVENPVYADPGSNTWFGMQVWSMQRVAELYYKTGDARAKKLLDKWAKWINGEIKFNADGTFQIPSTIDWEGQPDTWNPTQGYTGNANLHVKVVNYGTDLGCASSLANTLTYYAAKSGDETSRQNAQKLLDAMWNNYSDSKGISTVEQRGDYHRFLDQEVFVPAGWTGKMPNGDVIKSGVKFIDIRSKYKQDPEWQTMVAALQAGQVPTQRLHRFWAQSEFAVANGVYAILFPD

来源 Source

来源生物 organism	Clostridium cellulolyticum
NCBI 分类编号 ncbi_taxonomy_id	1521
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 branched

描述 description	;beta-D-glucopyranose-(1-4)-4-thio-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-4-thio-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-4-thio-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-4-thio-beta-D-glucopyranose ;
分子量 formula_weight	1379.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	374

▼

6. 折叠分类 (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

结构域编号 domain_id	d1g9ja_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.102 — alpha/alpha toroid
超家族 Superfamily superfamily	a.102.1 — Six-hairpin glycosidases
家族 Family family	a.102.1.2 — Cellulases catalytic domain

CATH v4.4 (3 domains)

结构域编号 domain_id	1g9jA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	50 — Alpha/alpha barrel
拓扑 Topology topology	10 — Glycosyltransferase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1g9jA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	170 — Beta Complex
拓扑 Topology topology	160 — Endo-1,4-beta-glucanase f; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Endo-1,4-beta-glucanase f. Domain 2

结构域编号 domain_id	1g9jA03
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	870 — Endo-1,4-beta-glucanase f; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Endo-1,4-beta-glucanase f. Domain 3

▶

7. 引用文献 (3)

▶

晶胞边长 a length_a	61.480 Å
晶胞边长 b length_b	84.720 Å
晶胞边长 c length_c	121.810 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	49.760 Å
R 因子 r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2070

fit	/app/data/saxs_computation/g9/1g9j/1g9j.fit
pddf	/app/data/pr_computation/g9/1g9j/1g9j.pr.out
profile	/app/data/saxs_computation/g9/1g9j/1g9j.dat

X-TAL STRUCTURE OF THE MUTANT E44Q OF THE CELLULASE CEL48F IN COMPLEX WITH A THIOOLIGOSACCHARIDE

SAXS 散射曲线 SAXS Profile

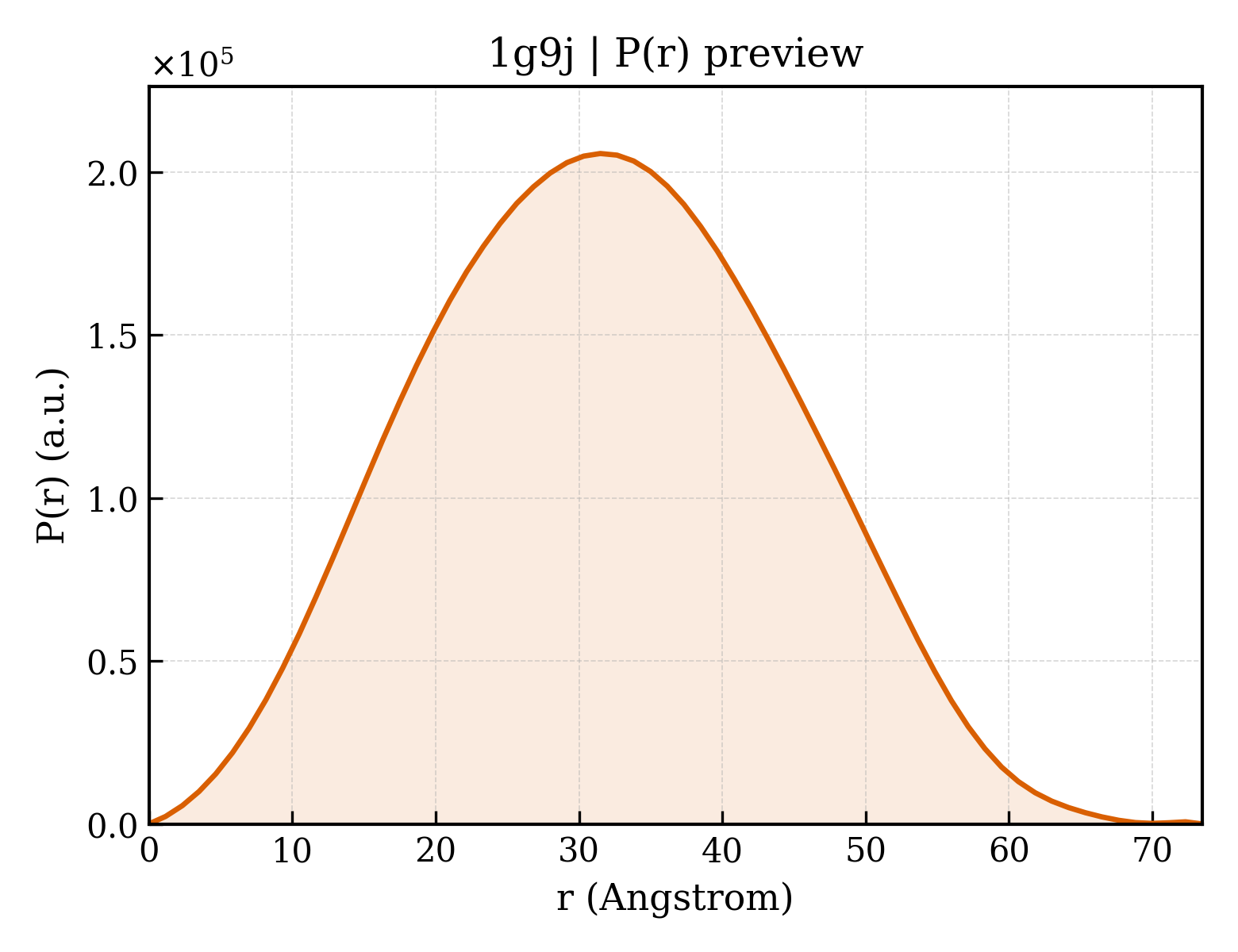

P(r) 距离分布 P(r) Distribution
