1gav

BACTERIOPHAGE GA PROTEIN CAPSID

Method: X-RAY DIFFRACTION D_max: 254.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

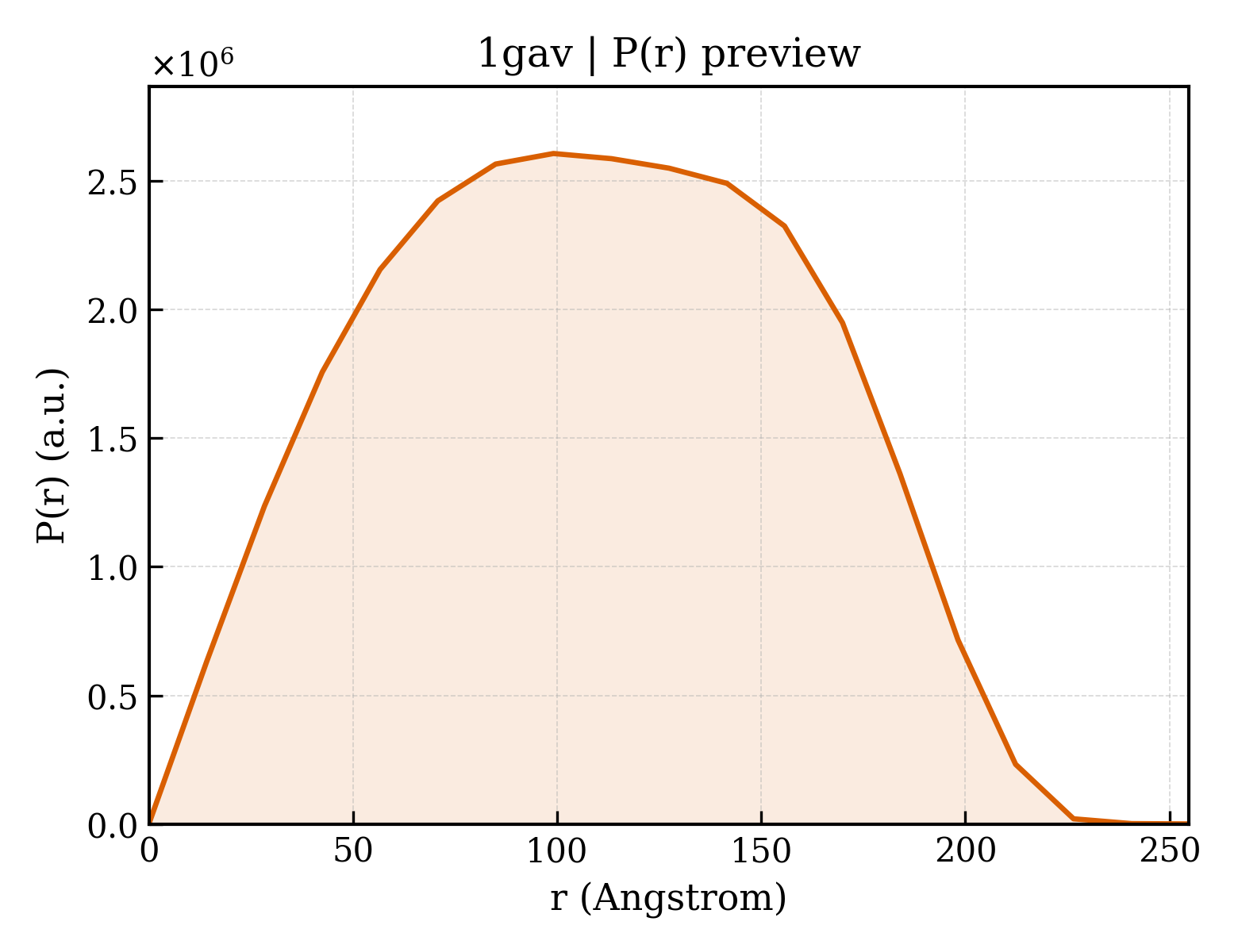

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gav
沉积日期 deposition_date	1997-01-28
结构标题 title	BACTERIOPHAGE GA PROTEIN CAPSID
关键词 keywords	BACTERIOPHAGE, CAPSID, COAT PROTEIN, Icosahedral virus, Virus; VIRUS
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.27 Å
回转半径 Rg (电子) rg_electron	83.94 Å
零角强度 I(0) i0	4911310000.00
分子量 molecular_weight	613190.0 kDa
排除体积 excluded_volume	775720 Å³
包络体积 envelope_volume	1616200 Å³
水化壳体积 shell_volume	163570 Å³
包络直径 envelope_diameter	243.4 Å
壳层 Rg shell_rg	82.44 Å
包络 Rg envelope_rg	78.23 Å
形状 Rg shape_rg	83.94 Å
总 Rg total_rg	83.91 Å
总原子数 total_atoms	43335
残基数 n_residues	5805
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	254.8 Å
Rg (实空间) rg_real	84.08 Å
Rg 误差 (实空间) rg_real_error	1.94 Å
I(0) (实空间) i0_real	4.9110e+09
I(0) 误差 (实空间) i0_real_error	1.0080e+08
Rg (倒空间) rg_reciprocal	84.44 Å
I(0) (倒空间) i0_reciprocal	4913000000.0000
解质量估计 total_estimate	0.8411
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	99.1 Å
偏度 Skewness skewness	0.013
峰度 Kurtosis kurtosis	-0.887
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.0076
最高正则化参数 α highest_alpha	131600000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.986; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▼

6. 折叠分类 (SCOP + CATH) 81 domains

SCOP 2.08 (36 domains)

结构域编号 domain_id	d1gav0_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav1_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav2_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav3_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav4_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav5_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav6_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav7_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav8_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gav9_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gava_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gave_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavg_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavh_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavi_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavj_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavk_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavl_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavm_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavn_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavo_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavp_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavq_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavr_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavs_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavt_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavu_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavv_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavw_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavx_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavy_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

结构域编号 domain_id	d1gavz_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.85 — RNA bacteriophage capsid protein
超家族 Superfamily superfamily	d.85.1 — RNA bacteriophage capsid protein
家族 Family family	d.85.1.1 — RNA bacteriophage capsid protein

CATH v4.4 (45 domains)

结构域编号 domain_id	1gav000
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav100
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav200
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav300
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav400
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav500
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav600
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav700
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav800
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gav900
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavO00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavP00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavQ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavR00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavS00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavT00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavU00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavV00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavW00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavX00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavY00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavZ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gava00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavb00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavc00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavd00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gave00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavf00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavg00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavh00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

结构域编号 domain_id	1gavi00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	380 — MS2 Viral Coat Protein
同源超家族 H-superfamily homologous superfamily	10 — MS2 Viral Coat Protein

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	272.700 Å
晶胞边长 b length_b	293.500 Å
晶胞边长 c length_c	339.300 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	360

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	3.400 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.2790
R_work r_work	0.2790
R_free r_free	—

描述 description	BACTERIOPHAGE GA PROTEIN CAPSID
分子量 formula_weight	13635.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	45

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,1,2,3,4,5,6,7,8,9,0,a,b,c,d,e,f,g,h,i
原子数 atom_count	43335

BACTERIOPHAGE GA PROTEIN CAPSID

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (1)

Entity 1 polymer

聚合体 Polymer

6. 折叠分类 (SCOP + CATH) 81 domains

SCOP 2.08 (36 domains)

CATH v4.4 (45 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/ga/1gav/1gav.fit
pddf	/app/data/pr_computation/ga/1gav/1gav.pr.out
profile	/app/data/saxs_computation/ga/1gav/1gav.dat
