1gax

CRYSTAL STRUCTURE OF THERMUS THERMOPHILUS VALYL-TRNA SYNTHETASE COMPLEXED WITH TRNA(VAL) AND VALYL-ADENYLATE ANALOGUE

Method: X-RAY DIFFRACTION D_max: 186.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

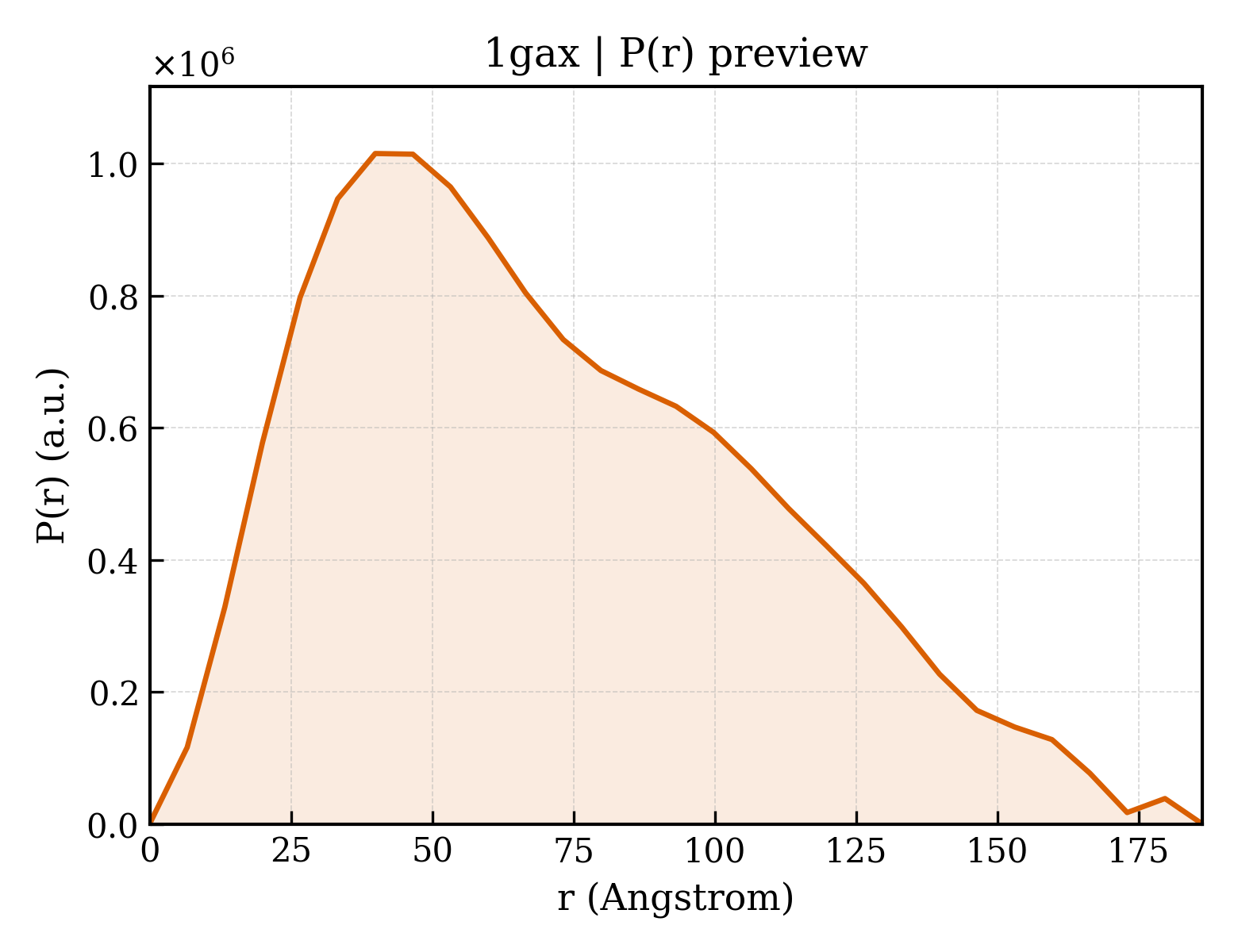

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gax
沉积日期 deposition_date	2000-06-23
结构标题 title	CRYSTAL STRUCTURE OF THERMUS THERMOPHILUS VALYL-TRNA SYNTHETASE COMPLEXED WITH TRNA(VAL) AND VALYL-ADENYLATE ANALOGUE
关键词 keywords	;protein-RNA complex, Rossmann fold, coiled coil, tRNA, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LIGASE-RNA COMPLEX ;; LIGASE/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	56.10 Å
回转半径 Rg (电子) rg_electron	58.87 Å
零角强度 I(0) i0	1142080000.00
分子量 molecular_weight	247300.0 kDa
排除体积 excluded_volume	294700 Å³
包络体积 envelope_volume	427420 Å³
水化壳体积 shell_volume	65664 Å³
包络直径 envelope_diameter	199.0 Å
壳层 Rg shell_rg	52.94 Å
包络 Rg envelope_rg	57.57 Å
形状 Rg shape_rg	58.97 Å
总 Rg total_rg	58.41 Å
总原子数 total_atoms	17210
残基数 n_residues	1874
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	186.3 Å
Rg (实空间) rg_real	56.73 Å
Rg 误差 (实空间) rg_real_error	2.71 Å
I(0) (实空间) i0_real	1.1420e+09
I(0) 误差 (实空间) i0_real_error	2.4880e+07
Rg (倒空间) rg_reciprocal	55.55 Å
I(0) (倒空间) i0_reciprocal	1140000000.0000
解质量估计 total_estimate	0.7671
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	39.9 Å
偏度 Skewness skewness	0.528
峰度 Kurtosis kurtosis	-0.477
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	55980000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.709; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.738; Smooth: 0.104

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	TRNA(VAL)
分子量 formula_weight	24174.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C,D
原子数 atom_count	17368

GGGCGGCUAGCUCAGCGGAAGAGCGCUCGCCUCACACGCGAGAGGUCGUAGGUUCAAGUCCUACGCCGCCCACCA

Entity 2 polymer

描述 description	VALYL-TRNA SYNTHETASE
分子量 formula_weight	98914.4 kDa
EC 编号 ec_number	6.1.1.9
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B

MDLPKAYDPKSVEPKWAEKWAKNPFVANPKSGKPPFVIFMPPPNVTGSLHMGHALDNSLQDALIRYKRMRGFEAVWLPGTDHAGIATQVVVERLLLKEGKTRHDLGREKFLERVWQWKEESGGTILKQLKRLGASADWSREAFTMDEKRSRAVRYAFSRYYHEGLAYRAPRLVNWCPRCETTLSDLEVETEPTPGKLYTLRYEVEGGGFIEIATVRPETVFADQAIAVHPEDERYRHLLGKRARIPLTEVWIPILADPAVEKDFGTGALKVTPAHDPLDYEIGERHGLKPVSVINLEGRMEGERVPEALRGLDRFEARRKAVELFREAGHLVKEEDYTIALATCSRCGTPIEYAIFPQWWLRMRPLAEEVLKGLRRGDIAFVPERWKKVNMDWLENVKDWNISRQLWWGHQIPAWYCEDCQAVNVPRPERYLEDPTSCEACGSPRLKRDEDVFDTWFSSALWPLSTLGWPEETEDLKAFYPGDVLVTGYDILFLWVSRMEVSGYHFMGERPFKTVLLHGLVLDEKGQKMSKSKGNVIDPLEMVERYGADALRFALIYLATGGQDIRLDLRWLEMARNFANKLYNAARFVLLSREGFQAKEDTPTLADRFMRSRLSRGVEEITALYEALDLAQAAREVYELVWSEFCDWYLEAAKPALKAGNAHTLRTLEEVLAVLLKLLHPMMPFLTSELYQALTGKEELALEAWPEPGGRDEEAERAFEALKQAVTAVRALKAEAGLPPAQEVRVYLEGETAPVEENLEVFRFLSRADLLPERPAKALVKAMPRVTARMPLEGLLDVEEWRRRQEKRLKELLALAERSQRKLASPGFREKAPKEVVEAEEARLKENLEQAERIREALSQIG

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	N-[VALINYL]-N'-[ADENOSYL]-DIAMINOSUFONE
分子量 formula_weight	444.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	158

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1gaxa2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.51 — ValRS/IleRS/LeuRS editing domain
超家族 Superfamily superfamily	b.51.1 — ValRS/IleRS/LeuRS editing domain
家族 Family family	b.51.1.1 — ValRS/IleRS/LeuRS editing domain

结构域编号 domain_id	d1gaxa3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

结构域编号 domain_id	d1gaxa4
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.2 — Long alpha-hairpin
超家族 Superfamily superfamily	a.2.7 — tRNA-binding arm
家族 Family family	a.2.7.3 — Valyl-tRNA synthetase (ValRS) C-terminal domain

结构域编号 domain_id	d1gaxa5
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.27 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
超家族 Superfamily superfamily	a.27.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
家族 Family family	a.27.1.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

结构域编号 domain_id	d1gaxb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.51 — ValRS/IleRS/LeuRS editing domain
超家族 Superfamily superfamily	b.51.1 — ValRS/IleRS/LeuRS editing domain
家族 Family family	b.51.1.1 — ValRS/IleRS/LeuRS editing domain

结构域编号 domain_id	d1gaxb3
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
超家族 Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
家族 Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

结构域编号 domain_id	d1gaxb4
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.2 — Long alpha-hairpin
超家族 Superfamily superfamily	a.2.7 — tRNA-binding arm
家族 Family family	a.2.7.3 — Valyl-tRNA synthetase (ValRS) C-terminal domain

结构域编号 domain_id	d1gaxb5
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.27 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
超家族 Superfamily superfamily	a.27.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
家族 Family family	a.27.1.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

CATH v4.4 (10 domains)

结构域编号 domain_id	1gaxA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1gaxA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	1gaxA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	1gaxA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1170 — Valyl-trna Synthetase; Chain: A, domain 4
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1gaxA05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	380 — Valyl-tRNA synthetase, C-terminal domain

结构域编号 domain_id	1gaxB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	620 — HUPs

结构域编号 domain_id	1gaxB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	730 — Isoleucyl-tRNA Synthetase; Domain 1
同源超家族 H-superfamily homologous superfamily	10 — Isoleucyl-tRNA Synthetase; Domain 1

结构域编号 domain_id	1gaxB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	740 — Isoleucyl-tRNA Synthetase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Valyl/Leucyl/Isoleucyl-tRNA synthetase, editing domain

结构域编号 domain_id	1gaxB04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1170 — Valyl-trna Synthetase; Chain: A, domain 4
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1gaxB05
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	380 — Valyl-tRNA synthetase, C-terminal domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	411.810 Å
晶胞边长 b length_b	411.810 Å
晶胞边长 c length_c	81.970 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 42 21 2
空间群编号 int_tables_number	94
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2447
R_free r_free	0.2715

fit	/app/data/saxs_computation/ga/1gax/1gax.fit
pddf	/app/data/pr_computation/ga/1gax/1gax.pr.out
profile	/app/data/saxs_computation/ga/1gax/1gax.dat
