1gc3

THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTATE AMINOTRANSFERASE

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	TRYPTOPHAN × 2 PYRIDOXAL-5'-PHOSPHATE × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	TRYPTOPHAN × 2 PYRIDOXAL-5'-PHOSPHATE × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	TRYPTOPHAN × 2 PYRIDOXAL-5'-PHOSPHATE × 2	Consistent with protein count
4	Protein homooligomer	Homooligomer	Protein 2	TRYPTOPHAN × 2 PYRIDOXAL-5'-PHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AAT_THETH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–385； UniProt 1–385 Author chain B； PDBConstruct 1–385； UniProt 1–385 Author chain C； PDBConstruct 1–385； UniProt 1–385 Author chain D； PDBConstruct 1–385； UniProt 1–385 Author chain E； PDBConstruct 1–385； UniProt 1–385 Author chain F； PDBConstruct 1–385； UniProt 1–385 Author chain G； PDBConstruct 1–385； UniProt 1–385 Author chain H； PDBConstruct 1–385； UniProt 1–385

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gc3
Deposition date deposition_date	2000-07-18
Structure title title	THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN
Keywords keywords	Aminotransferase, Dual-substrate enzyme, Pyridoxal enzyme, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gc3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gc3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

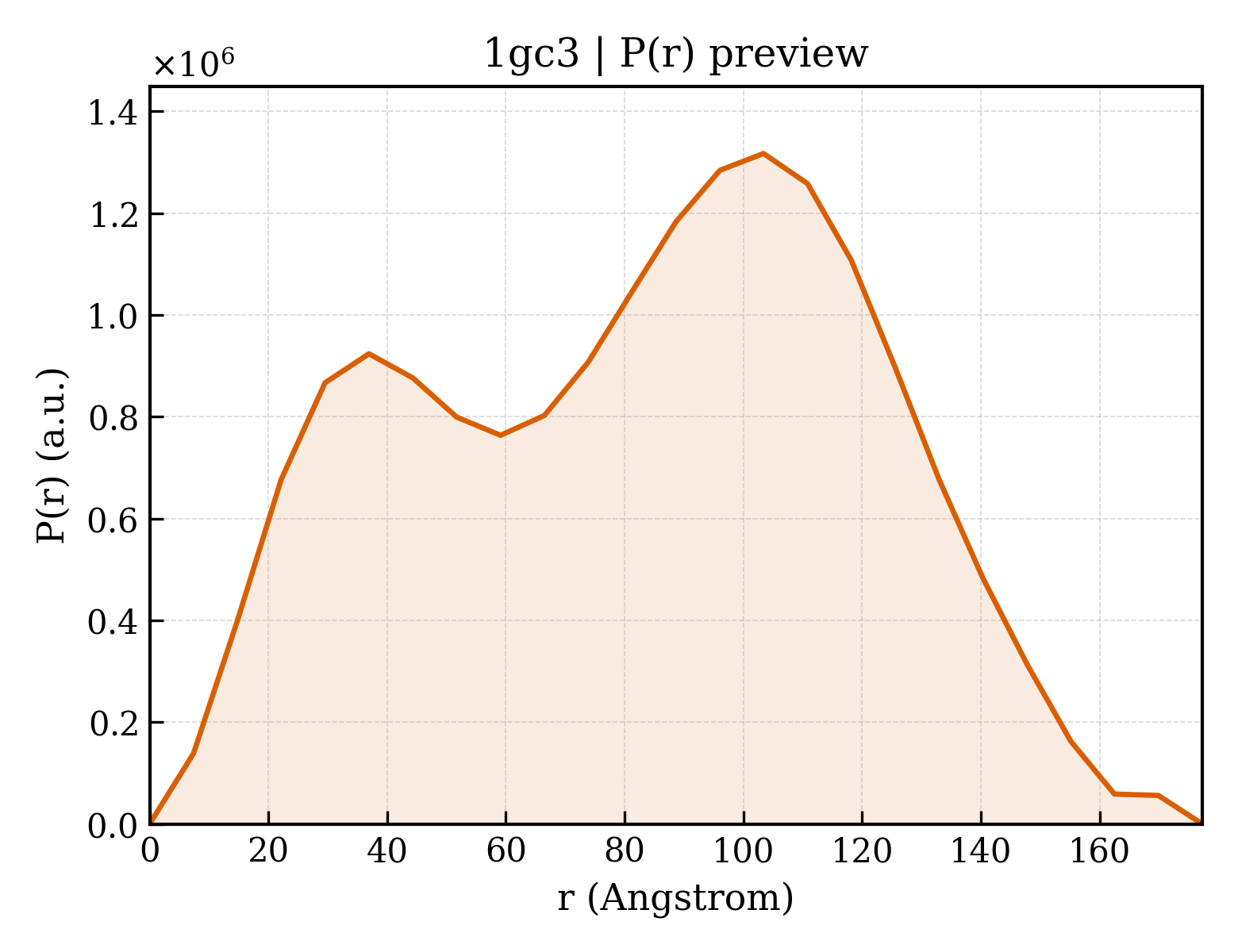

1gc3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.94 Å
Rg (electron density)	27.00 Å
Total Rg	27.84 Å
Atom count	5956
Residues	764
Excluded volume	105970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gc3__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gc3__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1gc3__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1gc3__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ASPARTATE AMINOTRANSFERASE
Molecular weight formula_weight	42157.0 kDa
EC 编号 ec_number	2.6.1.1
Mutation mutation	S14D, T16V, K101S, S261R
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	23824

MRGLSRRVQAMKPDAVVAVNAKALELRRQGVDLVALTAGEPDFDTPEHVKEAARRALAQGKTKYAPPAGIPELREALAEKFRRENGLSVTPEETIVTVGGSQALFNLFQAILDPGDEVIVLSPYWVSYPEMVRFAGGVVVEVETLPEEGFVPDPERVRRAITPRTKALVVNSPNNPTGAVYPKEVLEALARLAVEHDFYLVSDEIYEHLLYEGEHFSPGRVAPEHTLTVNGAAKAFAMTGWRIGYACGPKEVIKAMASVSRQSTTSPDTIAQWATLEALTNQEASRAFVEMAREAYRRRRDLLLEGLTALGLKAVRPSGAFYVLMDTSPIAPDEVRAAERLLEAGVAVVPGTDFAAFGHVRLSYATSEENLRKALERFARVLGRA

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	TRYPTOPHAN
Molecular weight formula_weight	204.2 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	PYRIDOXAL-5'-PHOSPHATE
Molecular weight formula_weight	247.1 kDa
Source method src_method	syn
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1gc3a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3e_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3g_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

Domain ID domain_id	d1gc3h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamily	c.67.1 — PLP-dependent transferases
Family Family family	c.67.1.1 — AAT-like

CATH v4.4 (16 domains)

Domain ID domain_id	1gc3A01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3B01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3C01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3C02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3D01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3D02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3E01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3E02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3F01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3F02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3G01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3G02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

Domain ID domain_id	1gc3H01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily	10 — Aspartate Aminotransferase, domain 1

Domain ID domain_id	1gc3H02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily	10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)

▶

Unit-cell length a length_a	81.500 Å
Unit-cell length b length_b	98.400 Å
Unit-cell length c length_c	187.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.53 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2200
R_work r_work	0.2030
R_free r_free	0.2820

THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTATE AMINOTRANSFERASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1gc3__assembly_1__model_1

1gc3__assembly_1__model_1 | I(q)

1gc3__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (4)

THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTATE AMINOTRANSFERASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1gc3__assembly_1__model_1

1gc3__assembly_1__model_1 | I(q)

1gc3__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (8 domains)

CATH v4.4 (16 domains)

7. Citations (4)
