1gc4

THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH ASPARTATE

Method: X-RAY DIFFRACTION Dmax: 155.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ASPARTATE AMINOTRANSFERASE

Thermus thermophilus

UniProt Q56232

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–385 Chain B； UniProt 1–385 Mutation：S14D, T16V, K101S, S261R ASP ASPARTIC ACID × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K Resolution 3.30 Å R-free 0.277
2 Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain C； UniProt 1–385 Chain D； UniProt 1–385 Mutation：S14D, T16V, K101S, S261R ASP ASPARTIC ACID × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K Resolution 3.30 Å R-free 0.277

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1GC4 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1B5O THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE SINGLE MUTANT 1 Deposited 1999-01-07 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：K101S Mutation：K101S PO4 PHOSPHATE ION × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；CRYSTALLIZED FROM 300MM AMMONIUM PHOSPHATE, PH 4.3
Resolution 2.20 Å R-free 0.237
1B5P THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE DOUBLE MUTANT 1 Deposited 1999-01-07 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：K101S,S261R Mutation：K101S,S261R PO4 PHOSPHATE ION × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；CRYSTALLIZED FROM 300MM AMMONIUM PHOSPHATE, PH 4.3
Resolution 1.80 Å R-free 0.239
1BJW ASPARTATE AMINOTRANSFERASE FROM THERMUS THERMOPHILUS Deposited 1998-06-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–382（382 aa）
Chain B 1–382（382 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) PO4 PHOSPHATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；pH 4.3
Resolution 1.80 Å R-free 0.269
1BKG ASPARTATE AMINOTRANSFERASE FROM THERMUS THERMOPHILUS WITH MALEATE Deposited 1998-07-07 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Not recorded PMP 4'-DEOXY-4'-AMINOPYRIDOXAL-5'-PHOSPHATE × 2 MAE MALEIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 2.60 Å R-free 0.238
1BKG ASPARTATE AMINOTRANSFERASE FROM THERMUS THERMOPHILUS WITH MALEATE Deposited 1998-07-07 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–385（385 aa）
Chain D 1–385（385 aa）
Not recorded PMP 4'-DEOXY-4'-AMINOPYRIDOXAL-5'-PHOSPHATE × 2 MAE MALEIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；pH 6.5
Resolution 2.60 Å R-free 0.238
1GC3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN Deposited 2000-07-18 Different ligand/ion Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：S14D, T16V, K101S, S261R Mutation：S14D, T16V, K101S, S261R TRP TRYPTOPHAN × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.282
1GC3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN Deposited 2000-07-18 Different ligand/ion Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–385（385 aa）
Chain D 1–385（385 aa）
Mutation：S14D, T16V, K101S, S261R Mutation：S14D, T16V, K101S, S261R TRP TRYPTOPHAN × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.282
1GC3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN Deposited 2000-07-18 Different ligand/ion Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain E 1–385（385 aa）
Chain F 1–385（385 aa）
Mutation：S14D, T16V, K101S, S261R Mutation：S14D, T16V, K101S, S261R TRP TRYPTOPHAN × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.282
1GC3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH TRYPTOPHAN Deposited 2000-07-18 Different ligand/ion Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain G 1–385（385 aa）
Chain H 1–385（385 aa）
Mutation：S14D, T16V, K101S, S261R Mutation：S14D, T16V, K101S, S261R TRP TRYPTOPHAN × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 3.30 Å R-free 0.282
1GCK THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE DOUBLE MUTANT 1 COMPLEXED WITH ASPARTATE Deposited 2000-08-04 Different mutation/modification Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：K101S, S261R Mutation：K101S, S261R ASP ASPARTIC ACID × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PEG 6000, HEPES, sodium acetate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.284
5BJ3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 1 Deposited 1999-01-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：S14D,T16P,K101S,S261R Mutation：S14D,T16P,K101S,S261R PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；CRYSTALLIZED FROM 30MM AMMONIUM PHOSPHATE, PH 4.3
Resolution 2.20 Å R-free 0.243
5BJ3 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 1 Deposited 1999-01-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–385（385 aa）
Chain D 1–385（385 aa）
Mutation：S14D,T16P,K101S,S261R Mutation：S14D,T16P,K101S,S261R PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；CRYSTALLIZED FROM 30MM AMMONIUM PHOSPHATE, PH 4.3
Resolution 2.20 Å R-free 0.243
5BJ4 THERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 Deposited 1999-01-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–385（385 aa）
Chain B 1–385（385 aa）
Mutation：S14D,T16V,K101S,S261R Mutation：S14D,T16V,K101S,S261R PO4 PHOSPHATE ION × 2 PLP PYRIDOXAL-5'-PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 4.3；CRYSTALLIZED FROM 300MM AMMONIUM PHOSPHATE, PH 4.3
Resolution 2.00 Å R-free 0.214

8 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name AAT_THETH
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–385； UniProt 1–385 Author chain B； PDBConstruct 1–385； UniProt 1–385 Author chain C； PDBConstruct 1–385； UniProt 1–385 Author chain D； PDBConstruct 1–385； UniProt 1–385

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1gc4

P(r) Distance Distribution P(r) Distribution

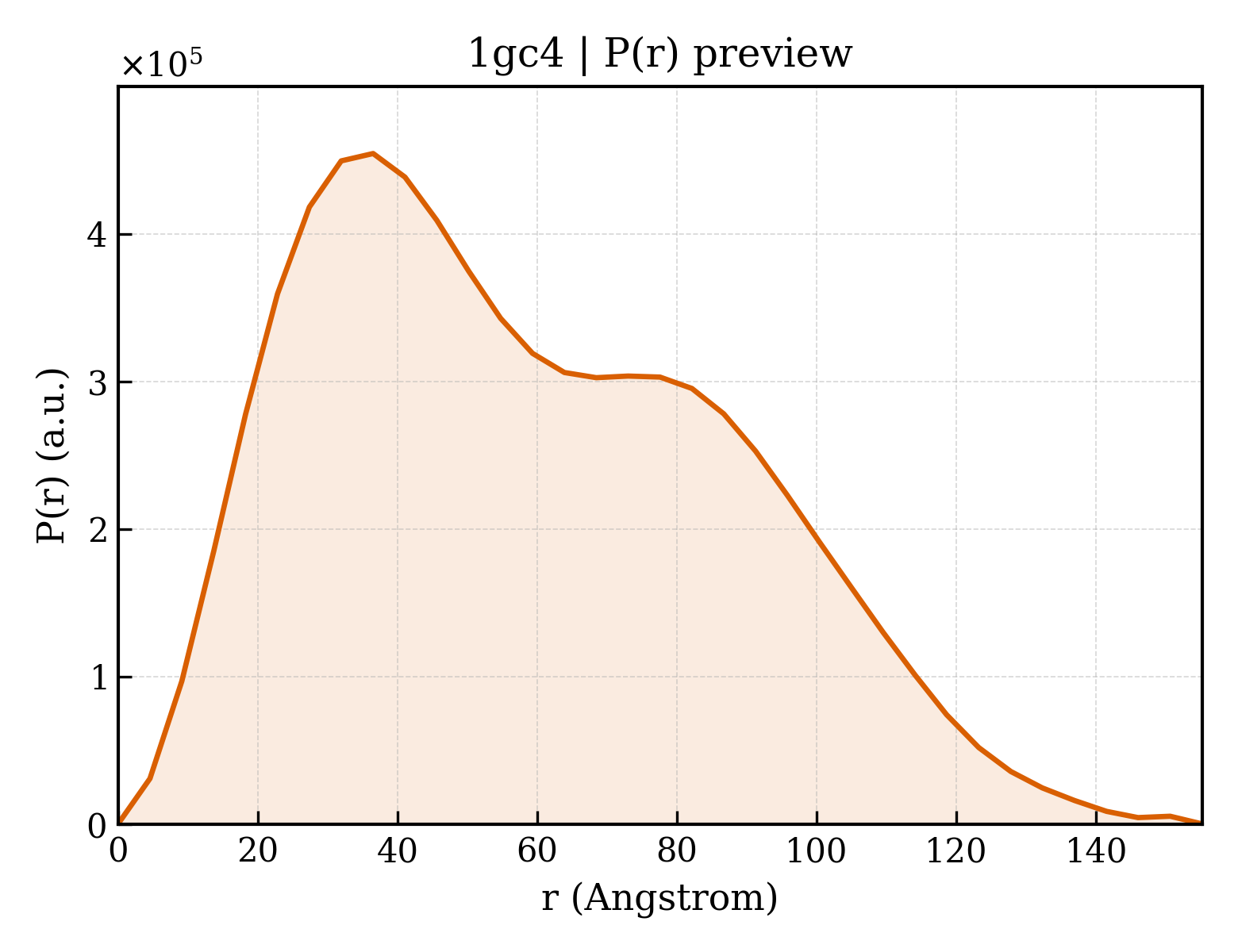

P(r) distribution for 1gc4
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1gc4
Deposition date deposition_date2000-07-19
Structure title titleTHERMUS THERMOPHILUS ASPARTATE AMINOTRANSFERASE TETRA MUTANT 2 COMPLEXED WITH ASPARTATE
Keywords keywordsAminotransferase, Dual-substrate enzyme, Pyridoxal enzyme, TRANSFERASE; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier45.77 Å
Radius of gyration Rg (electron density) rg_electron46.03 Å
Forward intensity I(0) i0413914000.00
Molecular weight molecular_weight168640.0 kDa
Excluded volume excluded_volume211410 ų
Envelope volume envelope_volume272400 ų
Hydration-shell volume shell_volume50665 ų
Envelope diameter envelope_diameter165.4 Å
Shell Rg shell_rg48.75 Å
Envelope Rg envelope_rg45.32 Å
Shape Rg shape_rg46.03 Å
Total Rg total_rg46.16 Å
Total atoms total_atoms11888
Residues n_residues1528
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax155.2 Å
Rg (real space) rg_real46.18 Å
Rg uncertainty (real space) rg_real_error1.60 Å
I(0) (real space) i0_real4.1390e+08
I(0) uncertainty (real space) i0_real_error7.9560e+06
Rg (reciprocal space) rg_reciprocal45.78 Å
I(0) (reciprocal space) i0_reciprocal413700000.0000
Solution quality estimate total_estimate0.8001
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary36.5 Å
Skewness Skewness skewness0.419
Kurtosis Kurtosis kurtosis-0.638
Angular range angular_range— – 0.1700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha71920000.0000
Real-space data points n_real_points35
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.639; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.802; Smooth: 0.678
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd1gc4a_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamilyc.67.1 — PLP-dependent transferases
Family Family familyc.67.1.1 — AAT-like
Domain ID domain_idd1gc4b_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamilyc.67.1 — PLP-dependent transferases
Family Family familyc.67.1.1 — AAT-like
Domain ID domain_idd1gc4c_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamilyc.67.1 — PLP-dependent transferases
Family Family familyc.67.1.1 — AAT-like
Domain ID domain_idd1gc4d_
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.67 — PLP-dependent transferase-like
Superfamily Superfamily superfamilyc.67.1 — PLP-dependent transferases
Family Family familyc.67.1.1 — AAT-like

CATH v4.4 (8 domains)

Domain ID domain_id1gc4A01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily10 — Aspartate Aminotransferase, domain 1
Domain ID domain_id1gc4A02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)
Domain ID domain_id1gc4B01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily10 — Aspartate Aminotransferase, domain 1
Domain ID domain_id1gc4B02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)
Domain ID domain_id1gc4C01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily10 — Aspartate Aminotransferase, domain 1
Domain ID domain_id1gc4C02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)
Domain ID domain_id1gc4D01
Class class3 — Alpha Beta
Architecture architecture90 — Alpha-Beta Complex
Topology topology1150 — Aspartate Aminotransferase, domain 1
Homologous superfamily homologous superfamily10 — Aspartate Aminotransferase, domain 1
Domain ID domain_id1gc4D02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology640 — Aspartate Aminotransferase; domain 2
Homologous superfamily homologous superfamily10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain)
▶
