SAXSdb — 1gd2

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gd2
沉积日期 deposition_date	2000-08-25
结构标题 title	CRYSTAL STRUCTURE OF BZIP TRANSCRIPTION FACTOR PAP1 BOUND TO DNA
关键词 keywords	basic leucine zipper, protein-DNA complex, transcription-DNA COMPLEX; transcription/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.94 Å
回转半径 Rg (电子) rg_electron	35.57 Å
零角强度 I(0) i0	61379200.00
分子量 molecular_weight	49974.0 kDa
排除体积 excluded_volume	57469 Å³
包络体积 envelope_volume	95369 Å³
水化壳体积 shell_volume	24265 Å³
包络直径 envelope_diameter	116.9 Å
壳层 Rg shell_rg	38.38 Å
包络 Rg envelope_rg	35.44 Å
形状 Rg shape_rg	35.65 Å
总 Rg total_rg	35.56 Å
总原子数 total_atoms	3456
残基数 n_residues	360
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	113.7 Å
Rg (实空间) rg_real	34.25 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	6.1380e+07
I(0) 误差 (实空间) i0_real_error	1.1100e+06
Rg (倒空间) rg_reciprocal	34.06 Å
I(0) (倒空间) i0_reciprocal	61370000.0000
解质量估计 total_estimate	0.8113
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	26.6 Å
偏度 Skewness skewness	0.405
峰度 Kurtosis kurtosis	-0.754
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	2306000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.740; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.428; Smooth: 0.895

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	;DNA (5'-D(APGPGPTPTPAPCPGPTPAPAPCP*C)-3') ;
分子量 formula_weight	3975.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	A,B,C,D
原子数 atom_count	4287

AGGTTACGTAACC

Entity 2 polymer

描述 description	TRANSCRIPTION FACTOR PAP1
分子量 formula_weight	8357.5 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H,I,J

RKNSDQEPSSKRKAQNRAAQRAFRKRKEDHLKALETQVVTLKELHSSTTLENDQLRQKVRQLEEELRILK

来源 Source

来源生物 organism	Schizosaccharomyces pombe
通用名 common_name	fission yeast
NCBI 分类编号 ncbi_taxonomy_id	4896
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	831

▼

6. 折叠分类 (SCOP + CATH) 11 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1gd2e_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1gd2f_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1gd2g_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1gd2h_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1gd2i_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

结构域编号 domain_id	d1gd2j_
类 Class class	h — Coiled coil proteins
折叠类型 Fold fold	h.1 — Parallel coiled-coil
超家族 Superfamily superfamily	h.1.3 — Leucine zipper domain
家族 Family family	h.1.3.1 — Leucine zipper domain

CATH v4.4 (5 domains)

结构域编号 domain_id	1gd2E00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1gd2F00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1gd2G00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1gd2H00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1gd2I00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	170 —

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	240.910 Å
晶胞边长 b length_b	240.910 Å
晶胞边长 c length_c	43.870 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	54

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2300
R_free r_free	0.2530

fit	/app/data/saxs_computation/gd/1gd2/1gd2.fit
pddf	/app/data/pr_computation/gd/1gd2/1gd2.pr.out
profile	/app/data/saxs_computation/gd/1gd2/1gd2.dat

CRYSTAL STRUCTURE OF BZIP TRANSCRIPTION FACTOR PAP1 BOUND TO DNA

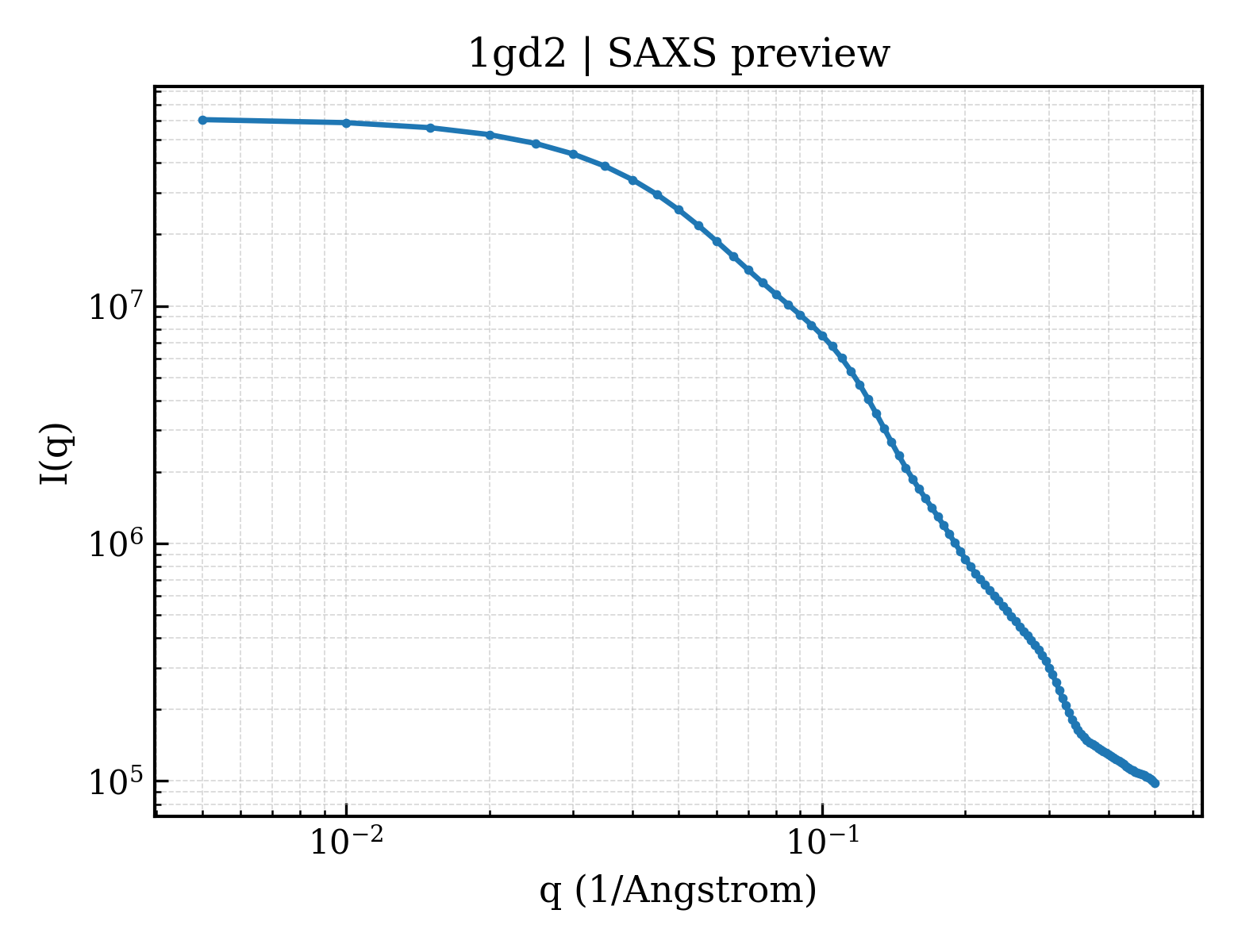

SAXS 散射曲线 SAXS Profile

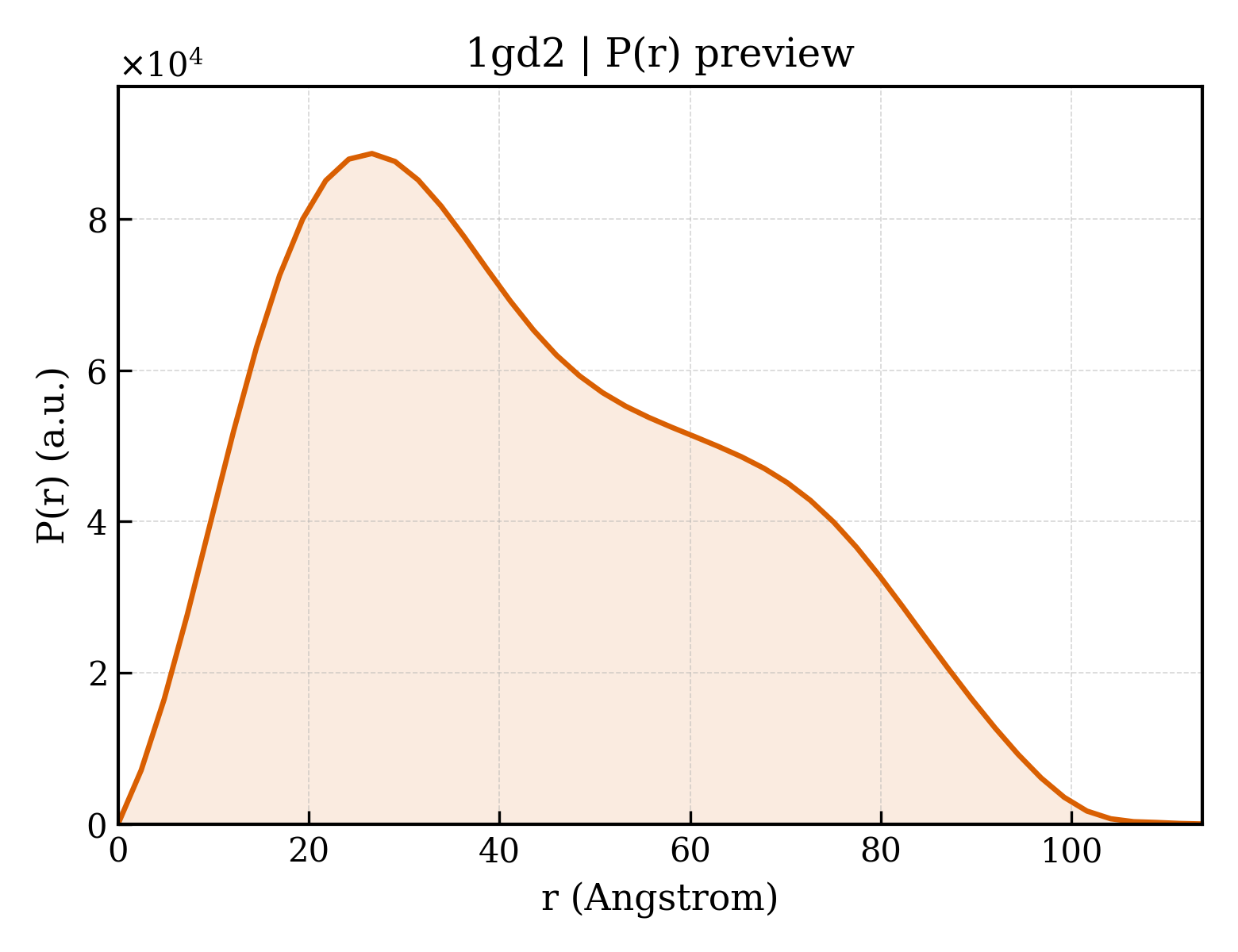

P(r) 距离分布 P(r) Distribution
