SAXSdb — 1gji

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

C-REL PROTO-ONCOGENE PROTEIN

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	IL-2 CD28RE DNA × 1 IL-2 CD28RE DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	REL_CHICK
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–275； UniProt 7–281 Author chain B； PDBConstruct 1–275； UniProt 7–281

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gji
Deposition date deposition_date	2001-05-30
Structure title title	Crystal structure of c-Rel bound to DNA
Keywords keywords	NF-kB-DNA COMPLEX, TRANSCRIPTION FACTOR, c-Rel HOMODIMER, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gji__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gji__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

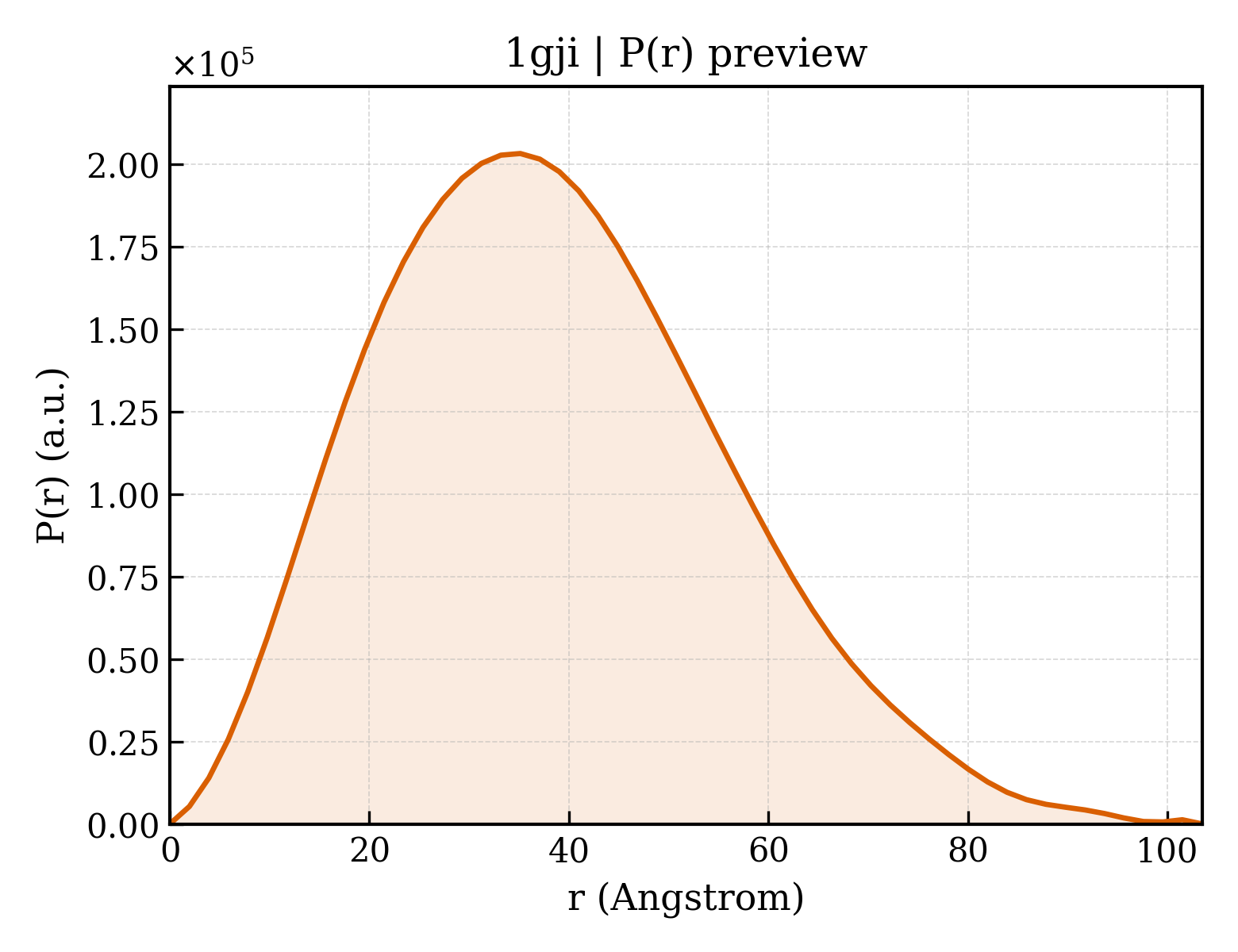

1gji__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.76 Å
Rg (electron density)	30.44 Å
Total Rg	30.62 Å
Atom count	5300
Residues	590
Excluded volume	91528 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gji__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	IL-2 CD28RE DNA
Molecular weight formula_weight	6206.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C
Atom count atom_count	6114

GGGTTTAAAGAAATTCCAGA

Entity 2 Entity 2 polymer

Description description	IL-2 CD28RE DNA
Molecular weight formula_weight	6058.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

TCTGGAATTTCTTTAAACCC

Entity 3 Entity 3 polymer

Description description	C-REL PROTO-ONCOGENE PROTEIN
Molecular weight formula_weight	31894.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

PYIEIFEQPRQRGMRFRYKCEGRSAGSIPGEHSTDNNKTFPSIQILNYFGKVKIRTTLVTKNEPYKPHPHDLVGKDCRDGYYEAEFGPERRVLSFQNLGIQCVKKKDLKESISLRISKKINPFNVPEEQLHNIDEYDLNVVRLCFQAFLPDEHGNYTLALPPLISNPIYDNRAPNTAELRICRVNKNCGSVKGGDEIFILCDKVQKDDIEVRFVLDNWEAKGSFSQADVHRQVAIVFRTPPFLRDITEPITVKMQLRRPSDQEVSEPMDFRYLPD

Source Source

Source organism organism	Gallus gallus
Common name common_name	chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	Escherichia coli

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1gjia1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d1gjia2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.3 — Rel/Dorsal transcription factors, DNA-binding domain

Domain ID domain_id	d1gjib1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d1gjib2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.5 — p53-like transcription factors
Family Family family	b.2.5.3 — Rel/Dorsal transcription factors, DNA-binding domain

CATH v4.4 (4 domains)

Domain ID domain_id	1gjiA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	340 — Rel homology domain (RHD), DNA-binding domain

Domain ID domain_id	1gjiA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1gjiB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	340 — Rel homology domain (RHD), DNA-binding domain

Domain ID domain_id	1gjiB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	99.320 Å
Unit-cell length b length_b	99.320 Å
Unit-cell length c length_c	196.250 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.2270
R_free r_free	0.2790
