1gki

Plasmid coupling protein TrwB in complex with ADP and Mg2+.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CONJUGAL TRANSFER PROTEIN TRWB

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	ADENOSINE-5'-DIPHOSPHATE × 6 MAGNESIUM ION × 5 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q04230
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–437； UniProt 71–507 Author chain B； PDBConstruct 1–437； UniProt 71–507 Author chain D； PDBConstruct 1–437； UniProt 71–507 Author chain E； PDBConstruct 1–437； UniProt 71–507 Author chain F； PDBConstruct 1–437； UniProt 71–507 Author chain G； PDBConstruct 1–437； UniProt 71–507

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gki
Deposition date deposition_date	2001-08-14
Structure title title	Plasmid coupling protein TrwB in complex with ADP and Mg2+.
Keywords keywords	COUPLING PROTEIN, BACTERIAL CONJUGATION, F1-ATPASE-LIKE QUATERNARY STRUCTURE, RING HELICASES; COUPLING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gki__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gki__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

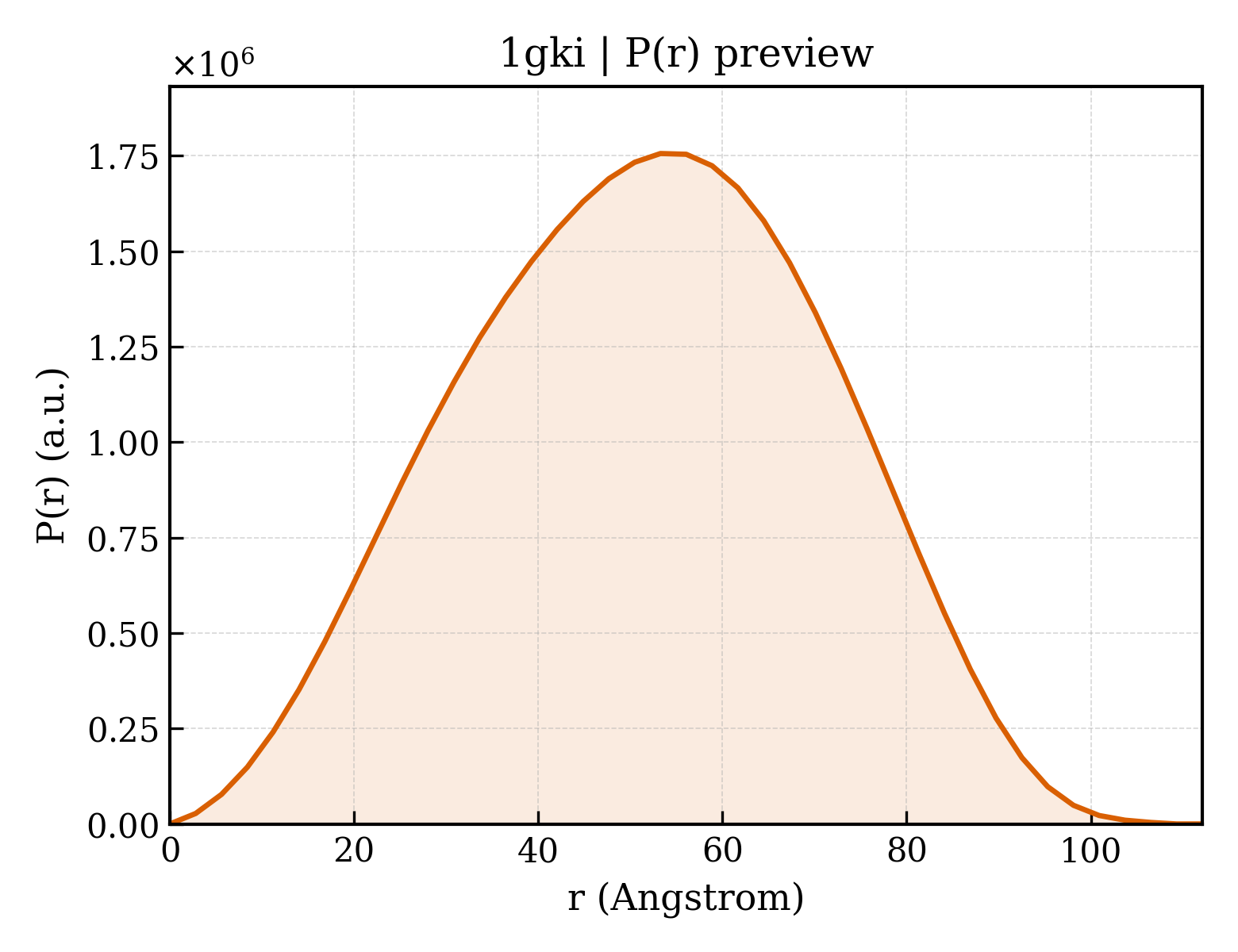

1gki__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.35 Å
Rg (electron density)	38.31 Å
Total Rg	38.82 Å
Atom count	19733
Residues	2488
Excluded volume	350750 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gki__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CONJUGAL TRANSFER PROTEIN TRWB
Molecular weight formula_weight	48671.5 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,D,E,F,G
Atom count atom_count	20150

LNSVGQGEFGGAPFKRFLRGTRIVSGGKLKRMTREKAKQVTVAGVPMPRDAEPRHLLVNGATGTGKSVLLRELAYTGLLRGDRMVIVDPNGDMLSKFGRDKDIILNPYDQRTKGWSFFNEIRNDYDWQRYALSVVPRGKTDEAEEWASYGRLLLRETAKKLALIGTPSMRELFHWTTIATFDDLRGFLEGTLAESLFAGSNEASKALTSARFVLSDKLPEHVTMPDGDFSIRSWLEDPNGGNLFITWREDMGPALRPLISAWVDVVCTSILSLPEEPKRRLWLFIDELASLEKLASLADALTKGRKAGLRVVAGLQSTSQLDDVYGVKEAQTLRASFRSLVVLGGSRTDPKTNEDMSLSLGEHEVERDRYSKNTGKHHSTGRALERVRERVVMPAEIANLPDLTAYVGFAGNRPIAKVPLEIKQFANRQPAFVEGTI

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	417

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1gkia_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1gkib_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1gkid_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1gkie_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1gkif_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

Domain ID domain_id	d1gkig_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.11 — RecA protein-like (ATPase-domain)

CATH v4.4 (12 domains)

Domain ID domain_id	1gkiA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

Domain ID domain_id	1gkiB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

Domain ID domain_id	1gkiD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiD02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

Domain ID domain_id	1gkiE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

Domain ID domain_id	1gkiF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

Domain ID domain_id	1gkiG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1gkiG02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	80 — Magnesium chelatase subunit I, C-Terminal domain

▶

Unit-cell length a length_a	151.100 Å
Unit-cell length b length_b	151.100 Å
Unit-cell length c length_c	251.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2320
