Escherichia coli
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | GSHB_ECOLI |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–303； UniProt 1–316 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1glv |
| Deposition date deposition_date | 1993-03-12 |
| Structure title title | THREE-DIMENSIONAL STRUCTURE OF THE GLUTATHIONE SYNTHETASE FROM ESCHERICHIA COLI B AT 2.0 ANGSTROMS RESOLUTION |
| Keywords keywords | GLUTATHIONE BIOSYNTHESIS LIGASE; GLUTATHIONE BIOSYNTHESIS LIGASE |
| Experimental Method method | X-RAY DIFFRACTION |

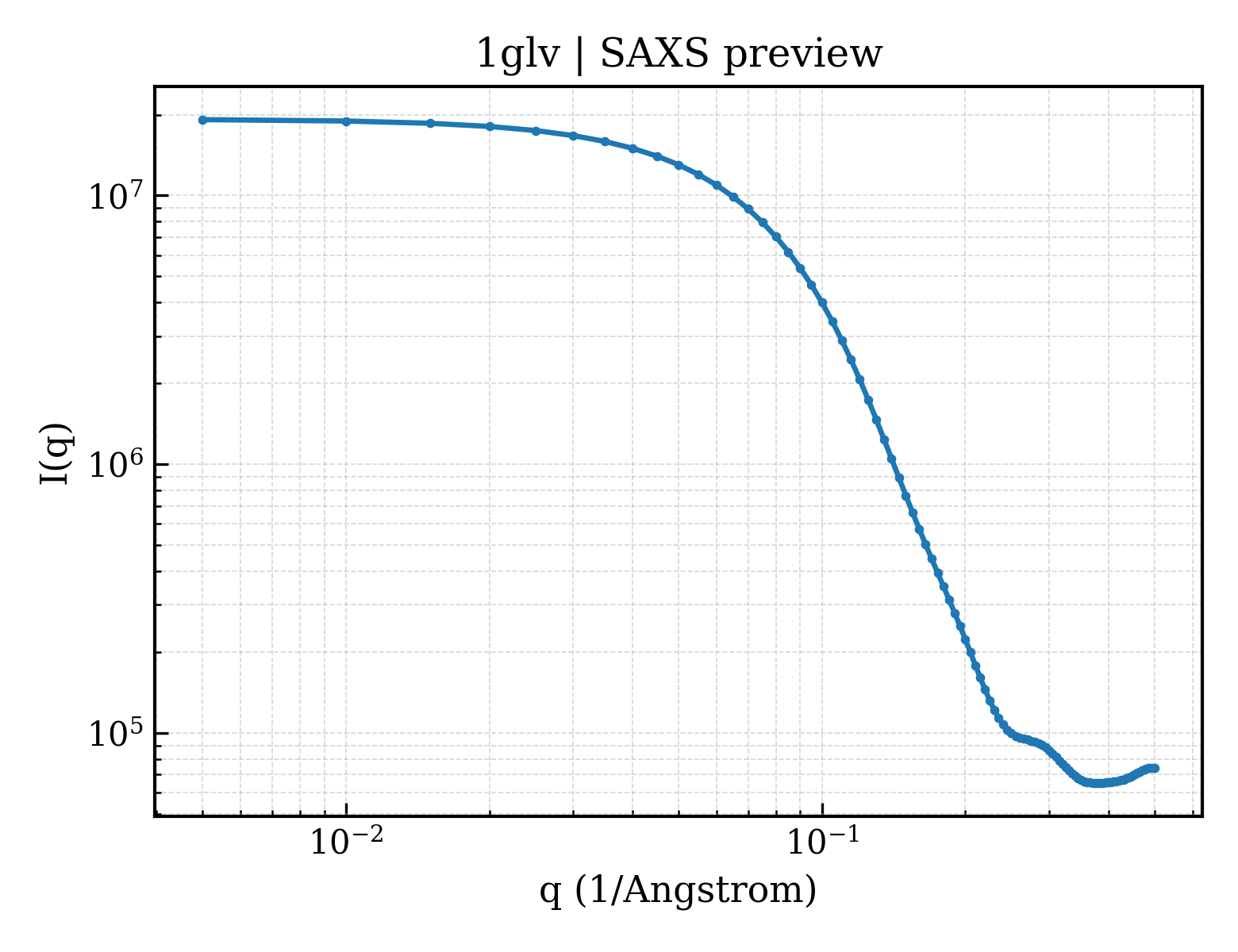

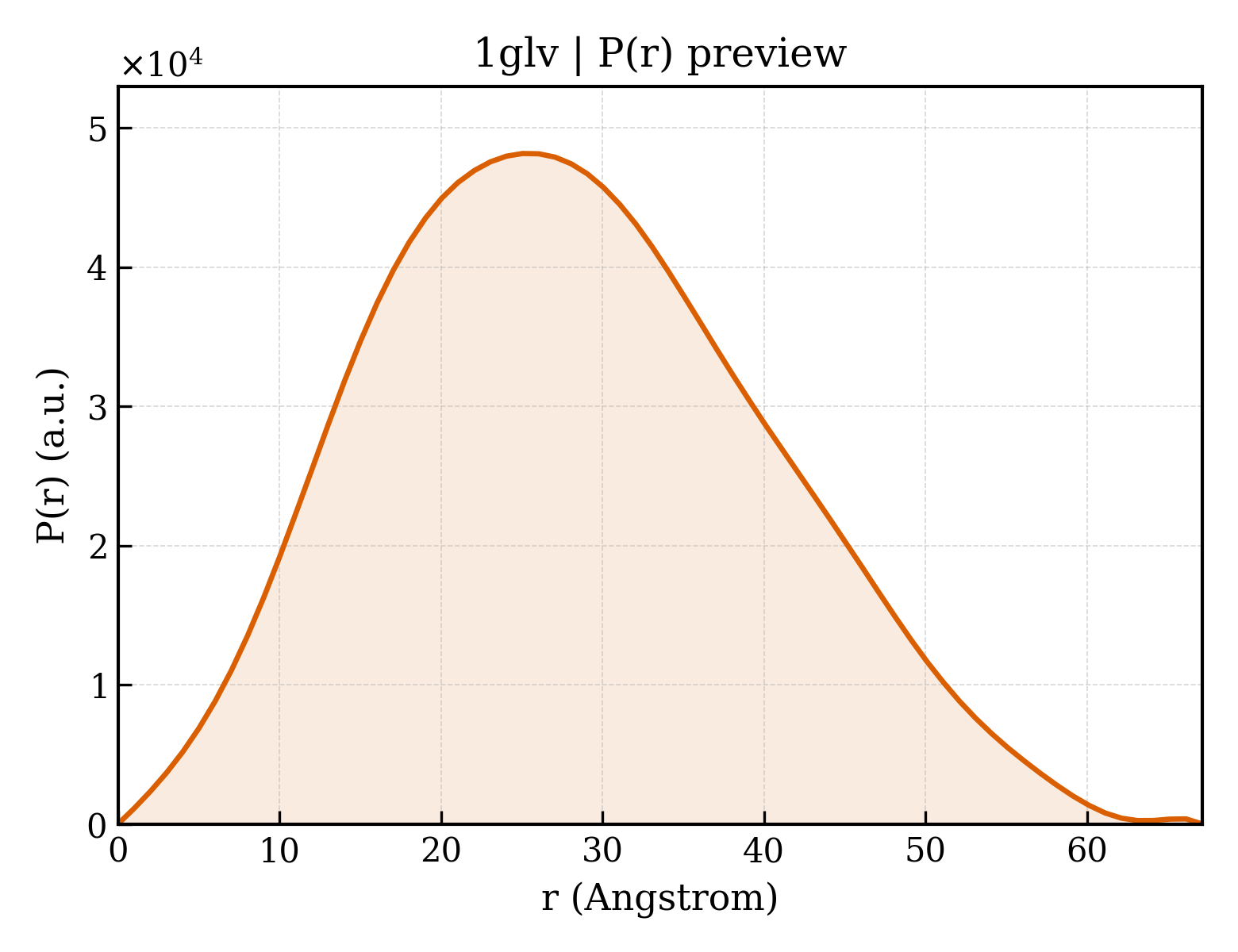

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 21.65 Å |
| Rg (electron density) | 20.59 Å |
| Total Rg | 21.32 Å |
| Atom count | 2381 |
| Residues | 299 |
| Excluded volume | 42686 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1glva1 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.30 — PreATP-grasp domain |
| Superfamily Superfamily superfamily | c.30.1 — PreATP-grasp domain |
| Family Family family | c.30.1.3 — Prokaryotic glutathione synthetase, N-terminal domain |
| Domain ID domain_id | d1glva2 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.142 — ATP-grasp |
| Superfamily Superfamily superfamily | d.142.1 — Glutathione synthetase ATP-binding domain-like |
| Family Family family | d.142.1.1 — ATP-binding domain of peptide synthetases |
| Domain ID domain_id | 1glvA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 20 — |
| Domain ID domain_id | 1glvA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 470 — D-amino Acid Aminotransferase; Chain A, domain 1 |
| Homologous superfamily homologous superfamily | 20 — ATP-grasp fold, B domain |
| Domain ID domain_id | 1glvA03 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 1490 — Dna Ligase; domain 1 |
| Homologous superfamily homologous superfamily | 20 — ATP-grasp fold, A domain |
