SAXSdb — 1gn9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYBRID CLUSTER PROTEIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	IRON/SULFUR/OXYGEN HYBRID CLUSTER × 1 IRON/SULFUR CLUSTER × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	IRON/SULFUR/OXYGEN HYBRID CLUSTER × 1 IRON/SULFUR CLUSTER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRIS_DESDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–544； UniProt 1–544 Author chain B； PDBConstruct 1–544； UniProt 1–544

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gn9
Deposition date deposition_date	2001-10-04
Structure title title	Hybrid Cluster Protein from Desulfovibrio desulfuricans ATCC 27774 X-ray structure at 2.6A resolution using synchrotron radiation at a wavelength of 1.722A
Keywords keywords	HYBRID CLUSTER, HYBRID CLUSTER PROTEIN, ANAEROBIC DESULFOVIBRIO DESULFURICANS, IRON ANOMALOUS; HYBRID CLUSTER
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gn9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gn9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

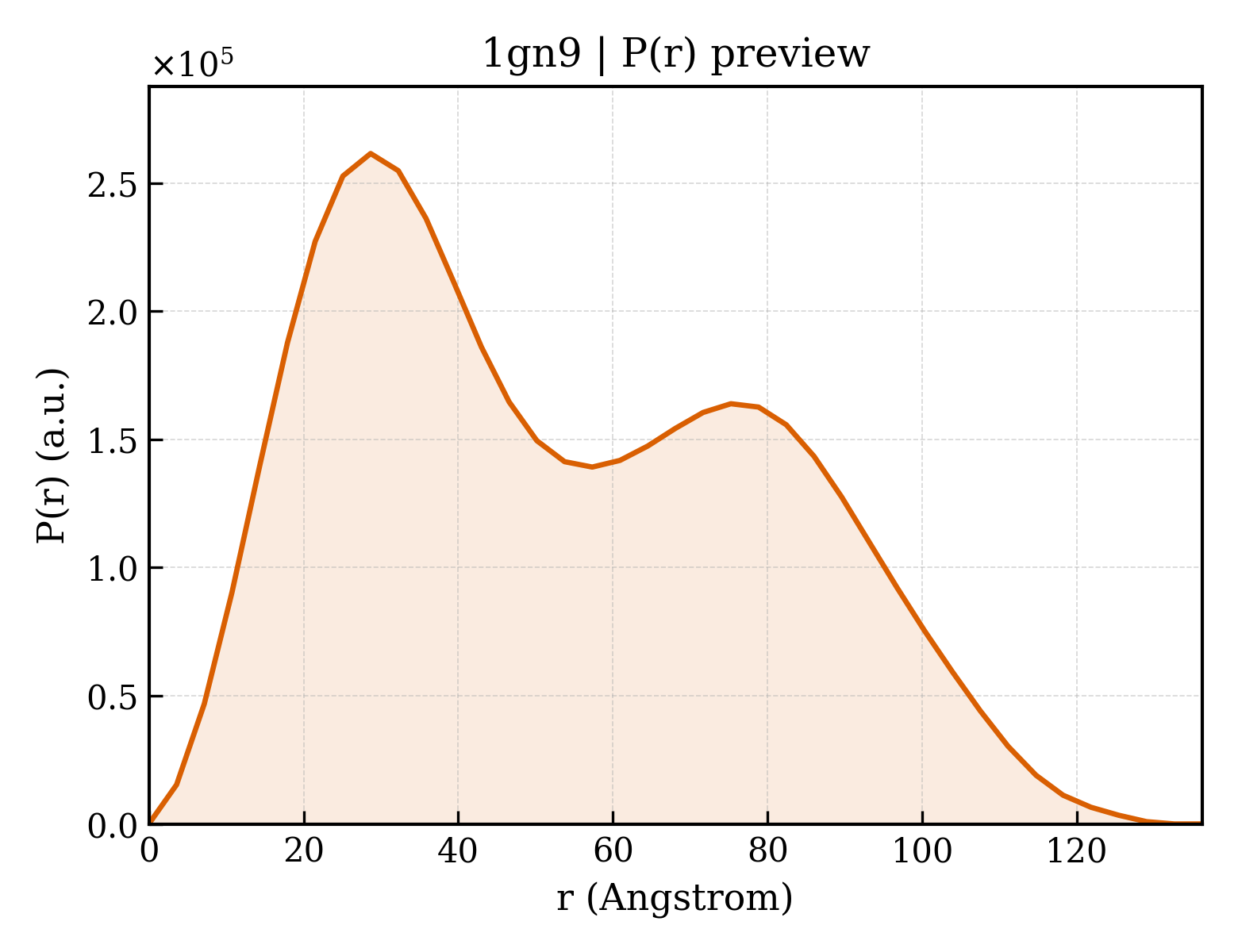

1gn9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.40 Å
Rg (electron density)	22.46 Å
Total Rg	23.17 Å
Atom count	4102
Residues	542
Excluded volume	73585 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gn9__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1gn9__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	HYBRID CLUSTER PROTEIN
Molecular weight formula_weight	58627.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8413

SNAMFCYQCQETVGNKGCTQVGVCGKKPETAALQDALIYVTKGLGQIATRLRAEGKAVDHRIDRLVTGNLFATITNANFDDDILAERVRMTCAAKKELAASLTDKSGLSDAALWEASEKSAMLAKAGTVGVMATTDDDVRSLRWLITFGLKGMAAYAKHADVLGKHENSLDAFMQEALAKTLDDSLSVADLVALTLETGKFGVSAMALLDAANTGTYGHPEITKVNIGVGSNPGILISGHDLRDLEMLLKQTEGTGVDVYTHSEMLPAHYYPAFKKYAHFKGNYGNAWWKQKEEFESFNGPVLLTTNCLVPPKDSYKDRVYTTGIVGFTGCKHIPGEIGEHKDFSAIIAHAKTCPAPTEIESGEIIGGFAHNQVLALADKVIDAVKSGAIKKFVVMAGCDGRAKSRSYYTDFAEGLPKDTVILTAGCAKYRYNKLNLGDIGGIPRVLDAGQCNDSYSLAVIALKLKEVFGLEDVNDLPIVYNIAWYEQKAVIVLLALLSLGVKNIHLGPTLPAFLSPNVAKVLVEQFNIGGITSPQDDLKAFFG

Entity 2 Entity 2 non-polymer

Description description	IRON/SULFUR/OXYGEN HYBRID CLUSTER
Molecular weight formula_weight	367.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	200

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1gn9a_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.26 — Prismane protein-like
Superfamily Superfamily superfamily	e.26.1 — Prismane protein-like
Family Family family	e.26.1.1 — Hybrid cluster protein (prismane protein)

Domain ID domain_id	d1gn9b_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.26 — Prismane protein-like
Superfamily Superfamily superfamily	e.26.1 — Prismane protein-like
Family Family family	e.26.1.1 — Hybrid cluster protein (prismane protein)

CATH v4.4 (8 domains)

Domain ID domain_id	1gn9A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1gn9A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1gn9A03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

Domain ID domain_id	1gn9A04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

Domain ID domain_id	1gn9B01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1gn9B02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1gn9B03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

Domain ID domain_id	1gn9B04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2030 —

▶

Unit-cell length a length_a	57.400 Å
Unit-cell length b length_b	61.800 Å
Unit-cell length c length_c	72.200 Å
Unit-cell angle α angle_alpha	82.70 °
Unit-cell angle β angle_beta	73.70 °
Unit-cell angle γ angle_gamma	87.30 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	25.010 Å
R factor r_factor	0.1930
R_work r_work	0.1930
R_free r_free	0.2600

Hybrid Cluster Protein from Desulfovibrio desulfuricans ATCC 27774 X-ray structure at 2.6A resolution using synchrotron radiation at a wavelength of 1.722A
