SAXSdb — 1gnn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 PROTEASE

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	N-[[1-[N-ACETAMIDYL]-[1-CYCLOHEXYLMETHYL-2-HYDROXY-4-ISOPROPYL]-BUT-4-YL]-CARBONYL]-GLUTAMINYL-ARGINYL-AMIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1PV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 69–167 Author chain B； PDBConstruct 1–99； UniProt 69–167

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1gnn
Deposition date deposition_date	1996-05-04
Structure title title	HIV-1 PROTEASE MUTANT WITH VAL 82 REPLACED BY ASN (V82N) COMPLEXED WITH U89360E (INHIBITOR)
Keywords keywords	ASPARTIC PROTEASE, HIV, MUTANT, INHIBITOR, U-89360E, HYDROLASE (ACID PROTEASE); HYDROLASE (ACID PROTEASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1gnn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1gnn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

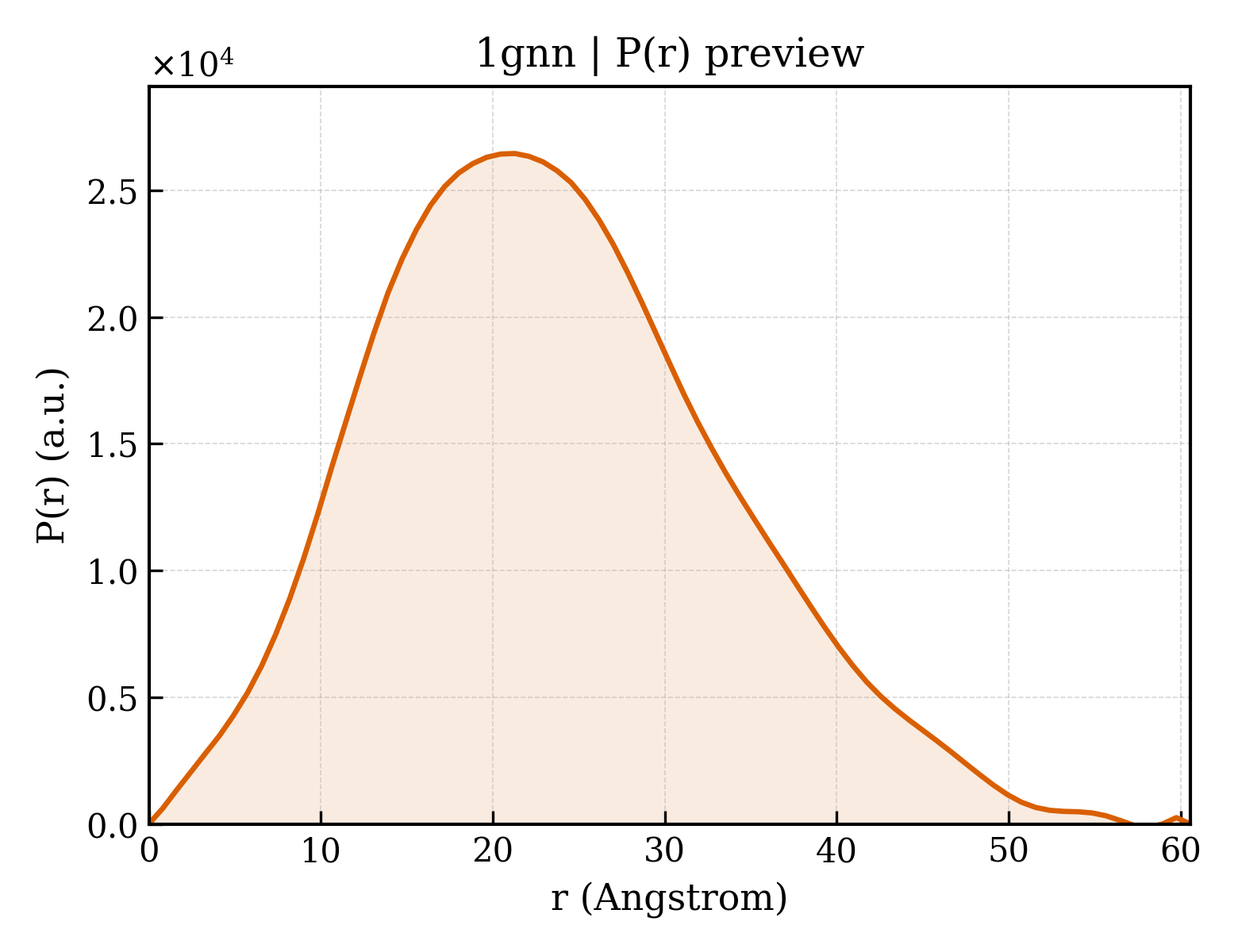

1gnn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.01 Å
Rg (electron density)	17.09 Å
Total Rg	18.08 Å
Atom count	1602
Residues	198
Excluded volume	29232 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1gnn__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	HIV-1 PROTEASE
Molecular weight formula_weight	10818.7 kDa
EC 编号 ec_number	2.7.7.49
Mutation mutation	V82N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1689

PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMSLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPNNIIGRNLLTQIGCTLNF

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	N-[[1-[N-ACETAMIDYL]-[1-CYCLOHEXYLMETHYL-2-HYDROXY-4-ISOPROPYL]-BUT-4-YL]-CARBONYL]-GLUTAMINYL-ARGINYL-AMIDE
Molecular weight formula_weight	596.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	87

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1gnna_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

Domain ID domain_id	d1gnnb_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

CATH v4.4 (2 domains)

Domain ID domain_id	1gnnA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1gnnB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

▶

Unit-cell length a length_a	63.260 Å
Unit-cell length b length_b	63.260 Å
Unit-cell length c length_c	83.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1830
R_free r_free	—

HIV-1 PROTEASE MUTANT WITH VAL 82 REPLACED BY ASN (V82N) COMPLEXED WITH U89360E (INHIBITOR)
