SAXSdb — 1go8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEASE C

ERWINIA CHRYSANTHEMI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 14 ZINC ION × 2 PHOSPHATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRTC_ERWCH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain P； PDBConstruct 1–462； UniProt 18–479

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1go8
Deposition date deposition_date	2001-10-20
Structure title title	The metzincin's methionine: PrtC M226L mutant
Keywords keywords	HYDROLASE, METALLOPROTEASE, PROTEASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1go8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

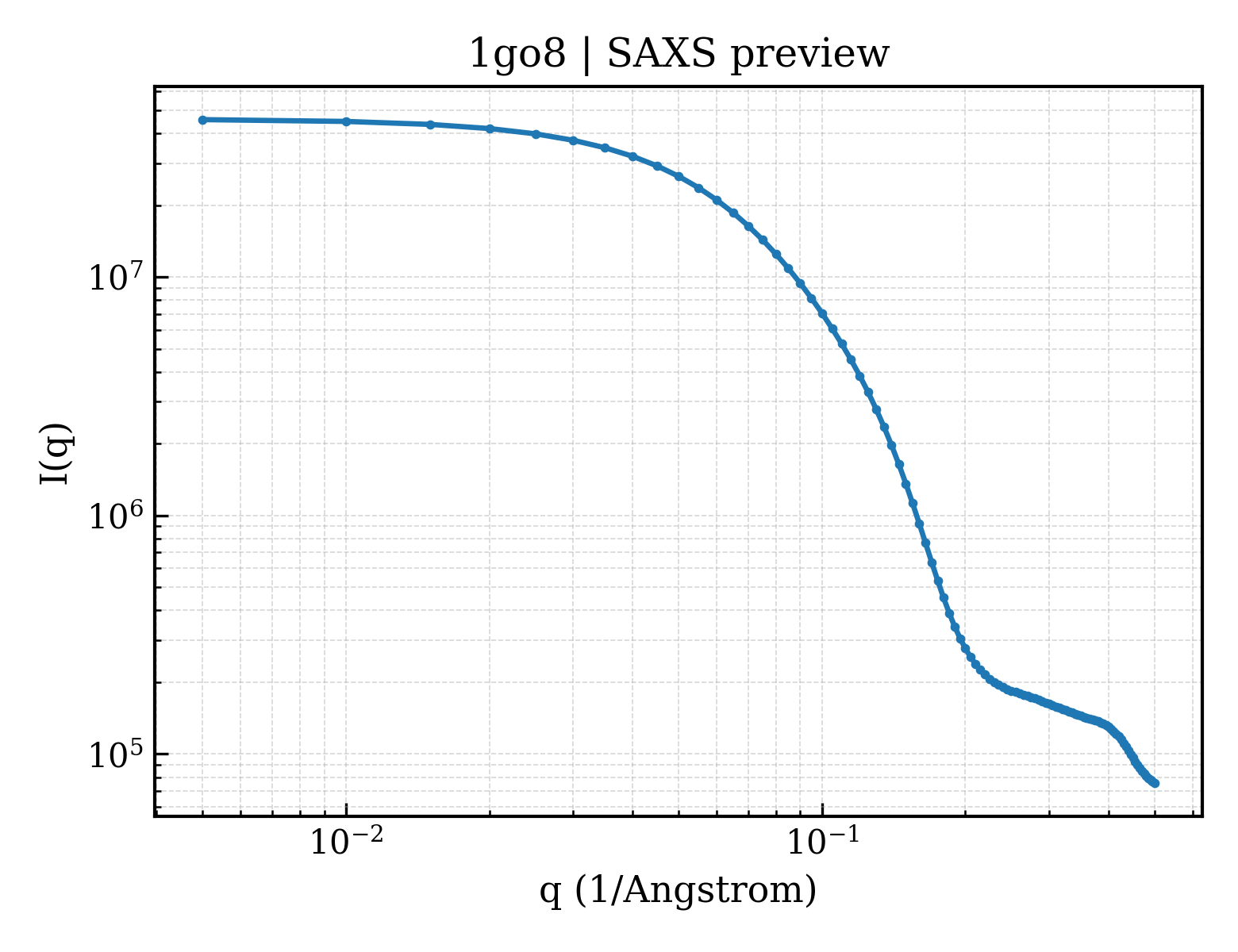

1go8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

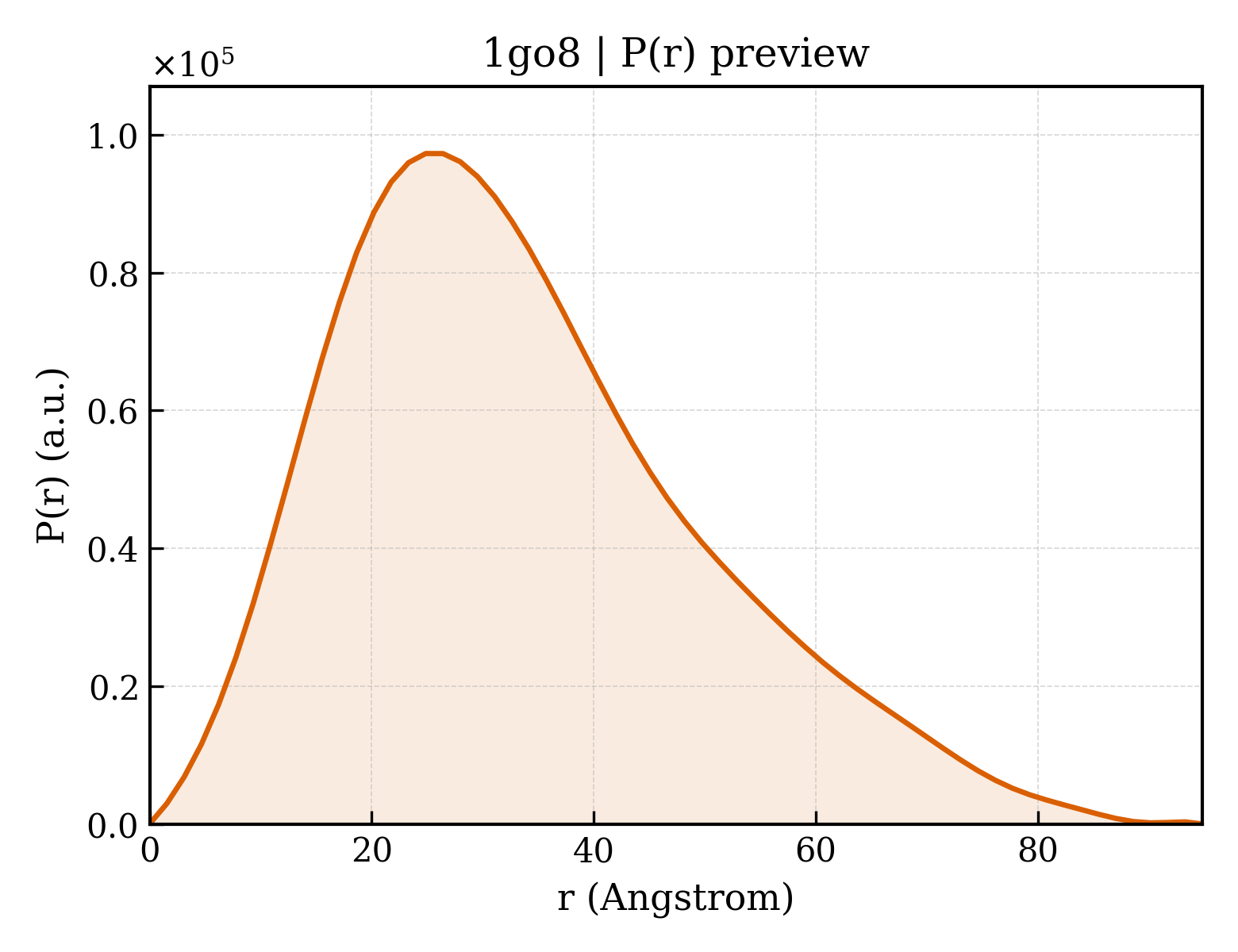

1go8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.95 Å
Rg (electron density)	33.65 Å
Total Rg	33.88 Å
Atom count	7040
Residues	920
Excluded volume	122090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1go8__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	PROTEASE C
Molecular weight formula_weight	49748.1 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P
Atom count atom_count	3906

ANTSSAYNSVYDFLRYHDRGDGLTVNGKTSYSIDQAAAQITRENVSWNGTNVFGKSANLTFKFLQSVSSIPSGDTGFVKFNAEQIEQAKLSLQSWSDVANLTFTEVTGNKSANITFGNYTRDASGNLDYGTQAYAYYPGNYQGAGSSWYNYNQSNIRNPGSEEYGRQTFTHEIGHALGLAHPGEYNAGEGDPSYNDAVYAEDSYQFSILSYWGENETGADYNGHYGGAPMIDDIAAIQRLYGANMTTRTGDSVYGFNSNTDRDFYTATDSSKALIFSVWDAGGTDTFDFSGYSNNQRINLNEGSFSDVGGLKGNVSIAHGVTIENAIGGSGNDILVGNSADNILQGGAGNDVLYGGAGADTLYGGAGRDTFVYGSGQDSTVAAYDWIADFQKGIDKIDLSAFRNEGQLSFVQDQFTGKGQEVMLQWDAANSITNLWLHEAGHSSVDFLVRIVGQAAQSDIIV

Source Source

Source organism organism	ERWINIA CHRYSANTHEMI
NCBI taxonomy ID ncbi_taxonomy_id	556
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	386

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1go8p1
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.7 — beta-Roll
Family Family family	b.80.7.1 — Serralysin-like metalloprotease, C-terminal domain

Domain ID domain_id	d1go8p2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.6 — Serralysin-like metalloprotease, catalytic (N-terminal) domain

CATH v4.4 (2 domains)

Domain ID domain_id	1go8P01
Class class	2 — Mainly Beta
Architecture architecture	150 — 2 Solenoid
Topology topology	10 — Alkaline Protease, subunit P, domain 1
Homologous superfamily homologous superfamily	10 — Serralysin-like metalloprotease, C-terminal

Domain ID domain_id	1go8P02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

▶

Unit-cell length a length_a	102.015 Å
Unit-cell length b length_b	102.015 Å
Unit-cell length c length_c	121.302 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1690
R_free r_free	0.1970

The metzincin's methionine: PrtC M226L mutant
