1gq2

Malic Enzyme from Pigeon Liver

Method: X-RAY DIFFRACTION D_max: 292.8 Å Quality: GOOD

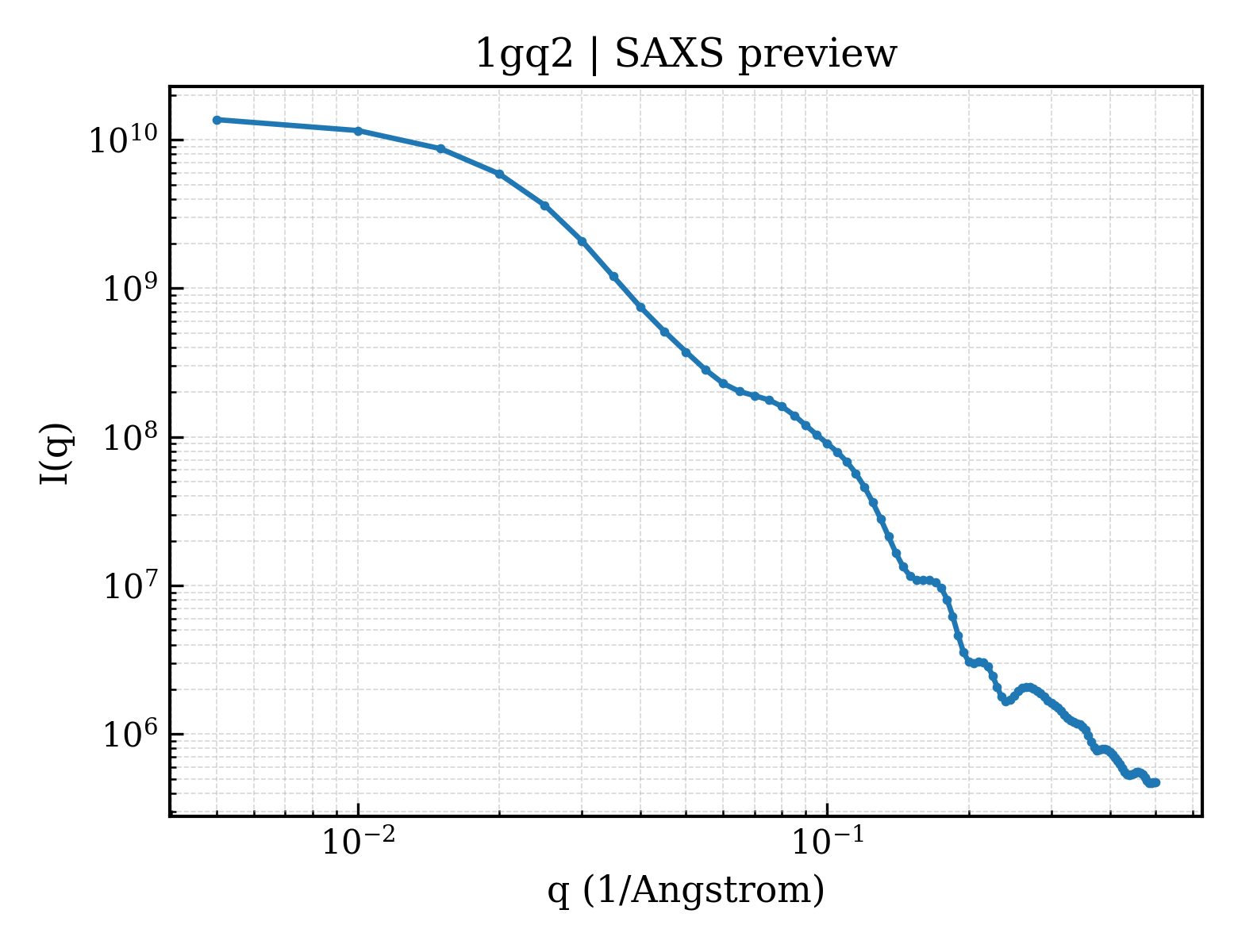

SAXS 散射曲线 SAXS Profile

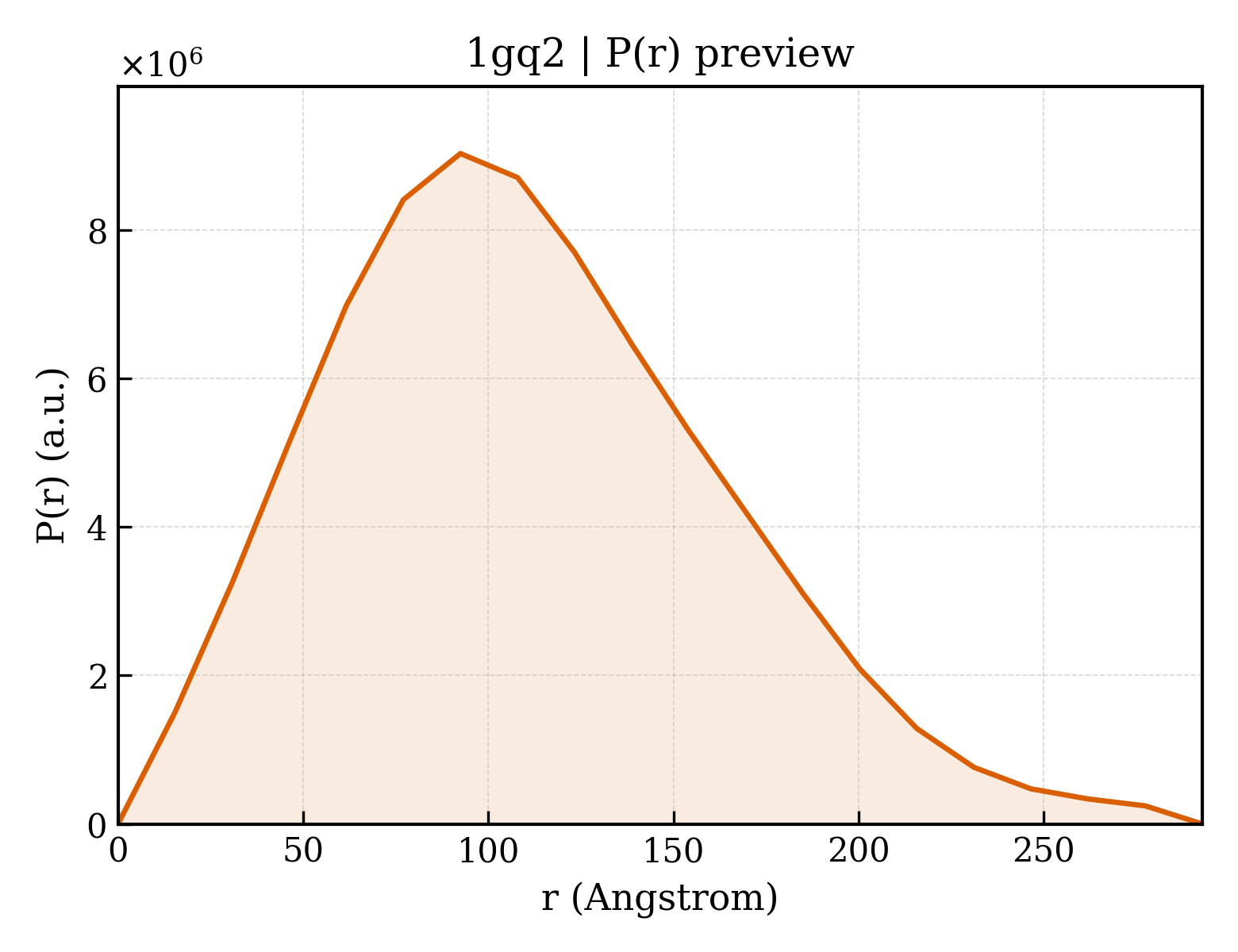

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1gq2
沉积日期 deposition_date	2001-11-19
结构标题 title	Malic Enzyme from Pigeon Liver
关键词 keywords	OXIDOREDUCTASE, MALIC ENZYME, PIGEON LIVER, NADP-DEPENDENT, NAD-NADP SELECTIVITY, DECARBOXYLASE, MALATE, MN2+; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	82.21 Å
回转半径 Rg (电子) rg_electron	82.12 Å
零角强度 I(0) i0	14460500000.00
分子量 molecular_weight	1015500.0 kDa
排除体积 excluded_volume	1263500 Å³
包络体积 envelope_volume	1885000 Å³
水化壳体积 shell_volume	195660 Å³
包络直径 envelope_diameter	282.6 Å
壳层 Rg shell_rg	79.42 Å
包络 Rg envelope_rg	79.29 Å
形状 Rg shape_rg	82.11 Å
总 Rg total_rg	82.12 Å
总原子数 total_atoms	70470
残基数 n_residues	8656
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	292.8 Å
Rg (实空间) rg_real	86.35 Å
Rg 误差 (实空间) rg_real_error	1.78 Å
I(0) (实空间) i0_real	1.4530e+10
I(0) 误差 (实空间) i0_real_error	3.0110e+08
Rg (倒空间) rg_reciprocal	82.02 Å
I(0) (倒空间) i0_reciprocal	14450000000.0000
解质量估计 total_estimate	0.8915
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	92.5 Å
偏度 Skewness skewness	0.484
峰度 Kurtosis kurtosis	-0.062
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1070
最高正则化参数 α highest_alpha	367400000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.862; Stabil: 0.859; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.460

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	MALIC ENZYME
分子量 formula_weight	62536.5 kDa
EC 编号 ec_number	1.1.1.40
来源方法 src_method	man
拷贝数 entity_count	16

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P
原子数 atom_count	71519

KKGYEVLRDPHLNKGMAFTLEERQQLNIHGLLPPCFLGQDAQVYSILKNFERLTSDLDRYILLMSLQDRNEKLFYKVLTSDIERFMPIVYTPTVGLACQHYGLAFRRPRGLFITIHDRGHIATMLQSWPESVIKAIVVTDGERILGLGDLGCYGMGIPVGKLALYTACGGVKPHQCLPVMLDVGTDNETLLKDPLYIGLRHKRIRGQAYDDLLDEFMEAVTSRYGMNCLIQFEDFANANAFRLLHKYRNKYCTFNDDIQGTASVAVAGLLAALRITKNRLSDHTVLFQGAGEAALGIANLIVMAMQKEGVSKEEAIKRIWMVDSKGLIVKGRASLTPEKEHFAHEHCEMKNLEDIVKDIKPTVLIGVAAIGGAFTQQILQDMAAFNKRPIIFALSNPTSKAECTAEQLYKYTEGRGIFASGSPFDPVTLPSGQTLYPGQGNNSYVFPGVALGVISCGLKHIGDDVFLTTAEVIAQEVSEENLQEGRLYPPLVTIQQVSLKIAVRIAKEAYRNNTASTYPQPEDLEAFIRSQVYSTDYNCFVADSYTWPEEAMKVK

来源 Source

来源生物 organism	COLUMBA LIVIA
通用名 common_name	DOMESTIC PIGEON
NCBI 分类编号 ncbi_taxonomy_id	8932
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 3 non-polymer

描述 description	OXALATE ION
分子量 formula_weight	88.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 4 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 5 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	33

Entity 6 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	36

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1049

▼

6. 折叠分类 (SCOP + CATH) 64 domains

SCOP 2.08 (32 domains)

结构域编号 domain_id	d1gq2a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2a2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2b2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2c1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2c2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2d2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2e1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2e2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2f1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2f2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2g1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2g2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2h1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2h2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2i1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2i2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2j1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2j2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2k1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2k2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2l1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2l2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2m1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2m2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2n1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2n2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2o1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2o2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

结构域编号 domain_id	d1gq2p1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

结构域编号 domain_id	d1gq2p2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
超家族 Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
家族 Family family	c.58.1.3 — Malic enzyme N-domain

CATH v4.4 (32 domains)

结构域编号 domain_id	1gq2A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2G02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2H02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2I01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2I02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2J01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2J02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2K01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2K02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2L01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2L02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2M01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2M02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2N01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2N02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2O01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2O02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1gq2P01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	10380 — Malic enzyme, N-terminal domain

结构域编号 domain_id	1gq2P02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	124.149 Å
晶胞边长 b length_b	140.863 Å
晶胞边长 c length_c	167.079 Å
晶胞夹角 α angle_alpha	90.05 °
晶胞夹角 β angle_beta	87.16 °
晶胞夹角 γ angle_gamma	75.63 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.2100
R_work r_work	0.2100
R_free r_free	0.2560
