SAXSdb — 1grf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE REDUCTASE

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 2 FLAVIN-ADENINE DINUCLEOTIDE × 2 ACETAMIDE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSHR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–478； UniProt 1–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1grf
Deposition date deposition_date	1992-12-15
Structure title title	SUBSTRATE BINDING AND CATALYSIS BY GLUTATHIONE REDUCTASE AS DERIVED FROM REFINED ENZYME: SUBSTRATE CRYSTAL STRUCTURES AT 2 ANGSTROMS RESOLUTION
Keywords keywords	OXIDOREDUCTASE(FLAVOENZYME), OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1grf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1grf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

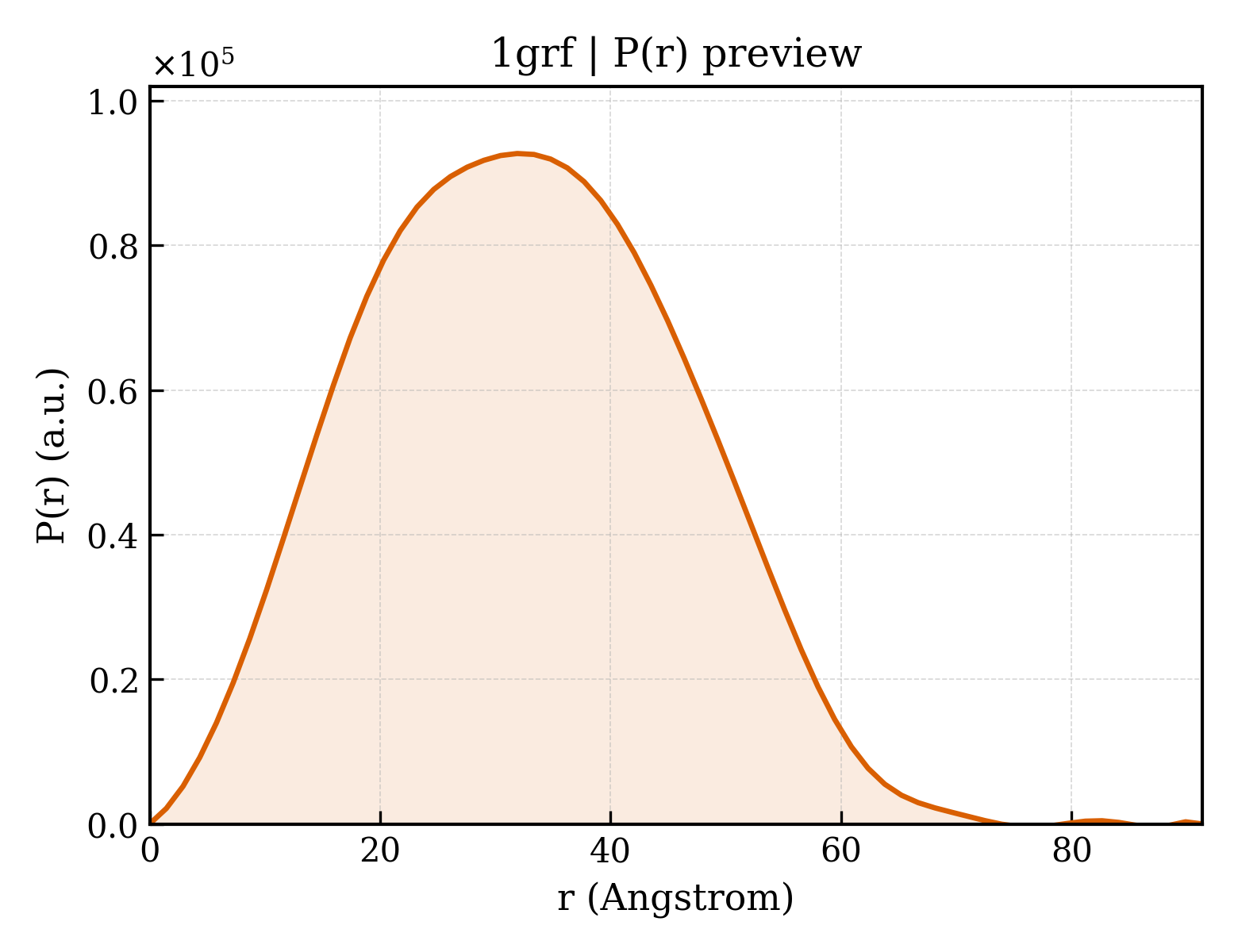

1grf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.14 Å
Rg (electron density)	30.69 Å
Total Rg	31.25 Å
Atom count	7122
Residues	922
Excluded volume	127110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1grf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GLUTATHIONE REDUCTASE
Molecular weight formula_weight	51636.2 kDa
EC 编号 ec_number	1.6.4.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4092

ACRQEPQPQGPPPAAGAVASYDYLVIGGGSGGLASARRAAELGARAAVVESHKLGGTCVNVGCVPKKVMWNTAVHSEFMHDHADYGFPSCEGKFNWRVIKEKRDAYVSRLNAIYQNNLTKSHIEIIRGHAAFTSDPKPTIEVSGKKYTAPHILIATGGMPSTPHESQIPGASLGITSDGFFQLEELPGRSVIVGAGYIAVEMAGILSALGSKTSLMIRHDKVLRSFDSMISTNCTEELENAGVEVLKFSQVKEVKKTLSGLEVSMVTAVPGRLPVMTMIPDVDCLLWAIGRVPNTKDLSLNKLGIQTDDKGHIIVDEFQNTNVKGIYAVGDVCGKALLTPVAIAAGRKLAHRLFEYKEDSKLDYNNIPTVVFSHPPIGTVGLTEDEAIHKYGIENVKTYSTSFTPMYHAVTKRKTKCVMKMVCANKEEKVVGIHMQGLGCDEMLQGFAVAVKMGATKADFDNTVAIHPTSSEELVTLR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ACETAMIDE
Molecular weight formula_weight	59.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	531

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1grfa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1grfa2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1grfa3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

CATH v4.4 (3 domains)

Domain ID domain_id	1grfA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1grfA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1grfA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

7. Citations (14)

;Substrate binding and catalysis by glutathione reductase as derived from refined enzyme: substrate crystal structures at 2 A resolution. ;

J.Mol.Biol. (1989)

PMID: 2585516 · DOI: 10.1016/0022-2836(89)90298-2 PRIMARY

;Inhibition of Human Glutathione Reductase by the Nitrosourea Drugs 1,3-Bis(2-Chloroethyl)-1-Nitrosourea and 1-(2-Chloroethyl)-3-(2-Hydroxyethyl)-1-Nitrosourea ;

Eur.J.Biochem. (1988)

Refined Structure of Glutathione Reductase at 1.54 Angstroms Resolution

J.Mol.Biol. (1987)

Interaction of a Glutathione S-Conjugate with Glutathione Reductase. Kinetic and X-Ray Crystallographic Studies

Eur.J.Biochem. (1984)

;Comparison of the Three-Dimensional Protein and Nucleotide Structure of the Fad-Binding Domain of P-Hydroxybenzoate Hydroxylase with the Fad-as Well as Nadph-Binding Domains of Glutathione Reductase ;

J.Mol.Biol. (1983)

The Catalytic Mechanism of Glutathione Reductase as Derived from X-Ray Diffraction Analyses of Reaction Intermediates

J.Biol.Chem. (1983)

Fad-Binding Site of Glutathione Reductase

J.Mol.Biol. (1982)

Glutathione Reductase from Human Erythrocytes. The Sequences of the Nadph Domain and of the Interface Domain

Eur.J.Biochem. (1982)

Three-Dimensional Structure of Glutathione Reductase at 2 Angstroms Resolution

J.Mol.Biol. (1981)

Gene Duplication in Glutathione Reductase

J.Mol.Biol. (1980)

The C-Terminal Fragment of Human Glutathione Reductase Contains the Postulated Catalytic Histidine

FEBS Lett. (1979)

The Structure of the Flavoenzyme Glutathione Reductase

Nature (1978)

Low Resolution Structure of Human Erythrocyte Glutathione Reductase

J.Mol.Biol. (1977)

Crystals of Human Erythrocyte Glutathione Reductase

FEBS Lett. (1975)

Unit-cell length a length_a	119.800 Å
Unit-cell length b length_b	84.500 Å
Unit-cell length c length_c	63.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	58.70 °
Molecules per unit cell Z z_pdb	4

Space group space_group	B 1 1 2
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1640
R_work r_work	—
R_free r_free	—
