SAXSdb — 1dnc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE REDUCTASE

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 2 FLAVIN-ADENINE DINUCLEOTIDE × 2 GLUTATHIONE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSHR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–478； UniProt 1–478

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dnc
Deposition date deposition_date	1998-02-20
Structure title title	HUMAN GLUTATHIONE REDUCTASE MODIFIED BY DIGLUTATHIONE-DINITROSO-IRON
Keywords keywords	SULFHYDRYL OXIDATION, SULFINIC ACID, NITRIC OXIDE, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dnc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dnc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

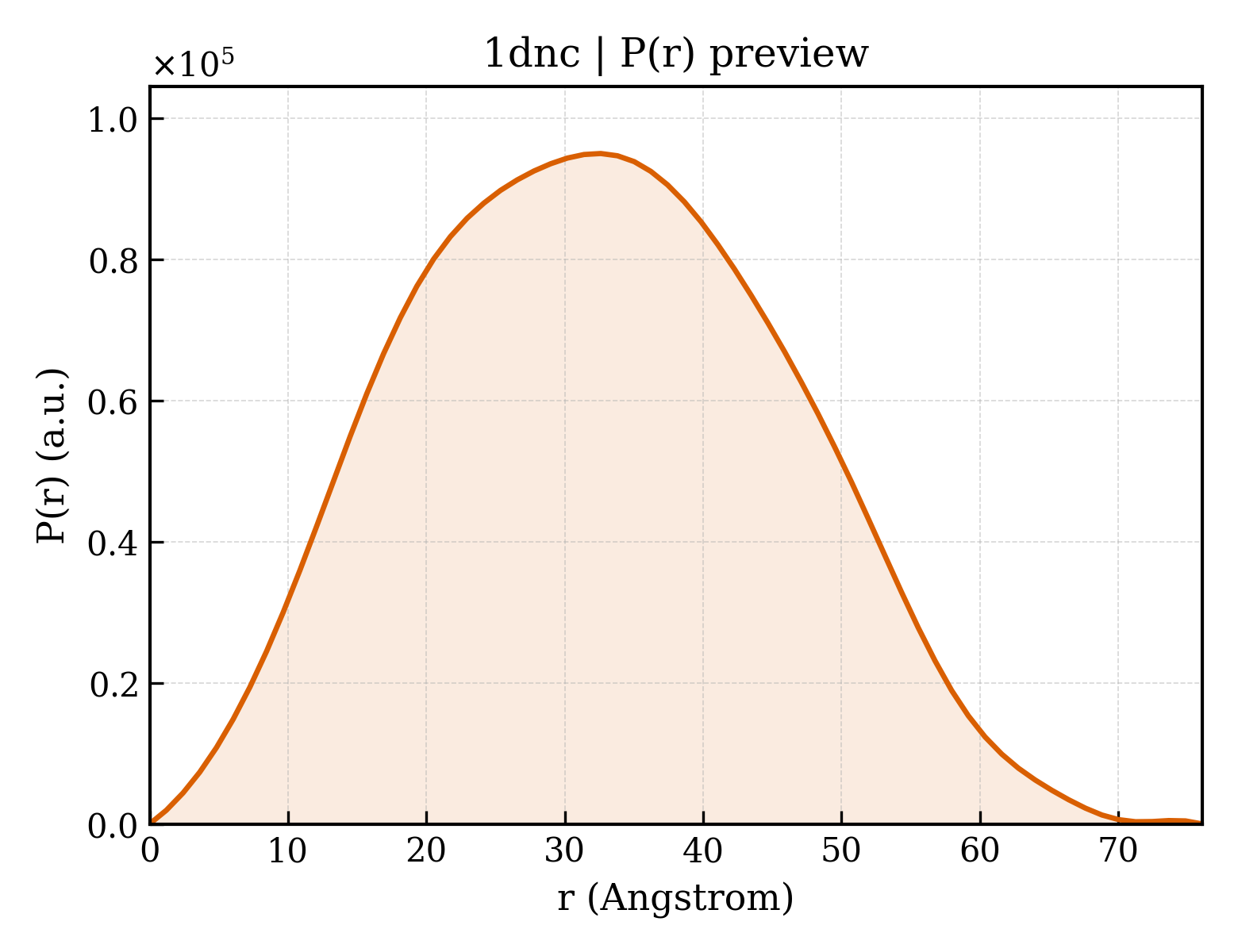

1dnc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.13 Å
Rg (electron density)	30.69 Å
Total Rg	31.25 Å
Atom count	7158
Residues	920
Excluded volume	127680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dnc__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	GLUTATHIONE REDUCTASE
Molecular weight formula_weight	51668.2 kDa
EC 编号 ec_number	1.6.4.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4097

ACRQEPQPQGPPPAAGAVASYDYLVIGGGSGGLASARRAAELGARAAVVESHKLGGTCVNVGCVPKKVMWNTAVHSEFMHDHADYGFPSCEGKFNWRVIKEKRDAYVSRLNAIYQNNLTKSHIEIIRGHAAFTSDPKPTIEVSGKKYTAPHILIATGGMPSTPHESQIPGASLGITSDGFFQLEELPGRSVIVGAGYIAVEMAGILSALGSKTSLMIRHDKVLRSFDSMISTNCTEELENAGVEVLKFSQVKEVKKTLSGLEVSMVTAVPGRLPVMTMIPDVDCLLWAIGRVPNTKDLSLNKLGIQTDDKGHIIVDEFQNTNVKGIYAVGDVCGKALLTPVAIAAGRKLAHRLFEYKEDSKLDYNNIPTVVFSHPPIGTVGLTEDEAIHKYGIENVKTYSTSFTPMYHAVTKRKTKCVMKMVCANKEEKVVGIHMQGLGCDEMLQGFAVAVKMGATKADFDNTVAIHPTSSEELVTLR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLUTATHIONE
Molecular weight formula_weight	307.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	518

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1dnca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1dnca2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.5 — FAD/NAD-linked reductases, N-terminal and central domains

Domain ID domain_id	d1dnca3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.87 — CO dehydrogenase flavoprotein C-domain-like
Superfamily Superfamily superfamily	d.87.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain
Family Family family	d.87.1.1 — FAD/NAD-linked reductases, dimerisation (C-terminal) domain

CATH v4.4 (3 domains)

Domain ID domain_id	1dncA01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1dncA02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1dncA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

▶

Unit-cell length a length_a	120.080 Å
Unit-cell length b length_b	63.400 Å
Unit-cell length c length_c	84.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	58.33 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2480
